Quick Installation Guide
ESM-A50M Quick Installation Guide 31

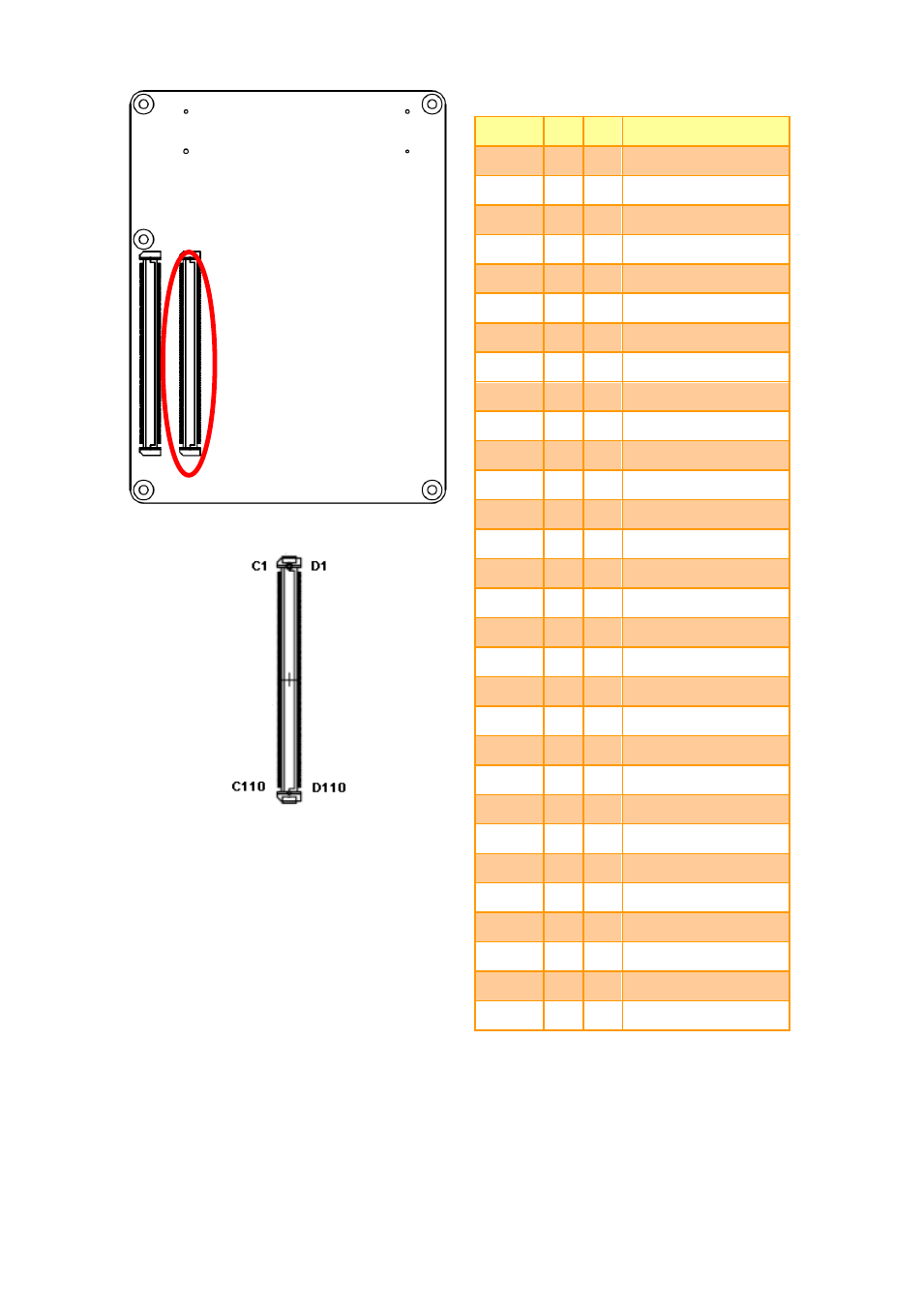

Signal PIN PIN Signal
GND C31 D31 GND
NC C32 D32 DDI1_PAIR2+
NC C33 D33 DDI1_PAIR2-
NC C34 D34 DDI1_DDC_AUX_SEL
NC C35 D35 NC
NC C36 D36 DDI1_PAIR3+
NC C37 D37 DDI1_PAIR3-
NC C38 D38 NC
NC C39 D39 NC
NC C40 D40 NC
GND C41 D41 GND
NC C42 D42 NC
NC C43 D43 NC
NC C44 D44 NC
NC C45 D45 NC
NC C46 D46 NC
NC C47 D47 NC
NC C48 D48 NC
NC C49 D49 NC
NC C50 D50 NC
GND C51 D51 GND
NC C52 D52 NC
NC C53 D53 NC
TYPE0# C54 D54 NC
NC C55 D55 NC
NC C56 D56 NC
TYPE1# C57 D57 TYPE2#
NC C58 D58 NC
NC C59 D59 NC
GND C60 D60 GND
