Avalue ESM-A50M - Manual (Page 24)

ESM-A50M
24 ESM-A50M Quick Installation Guide

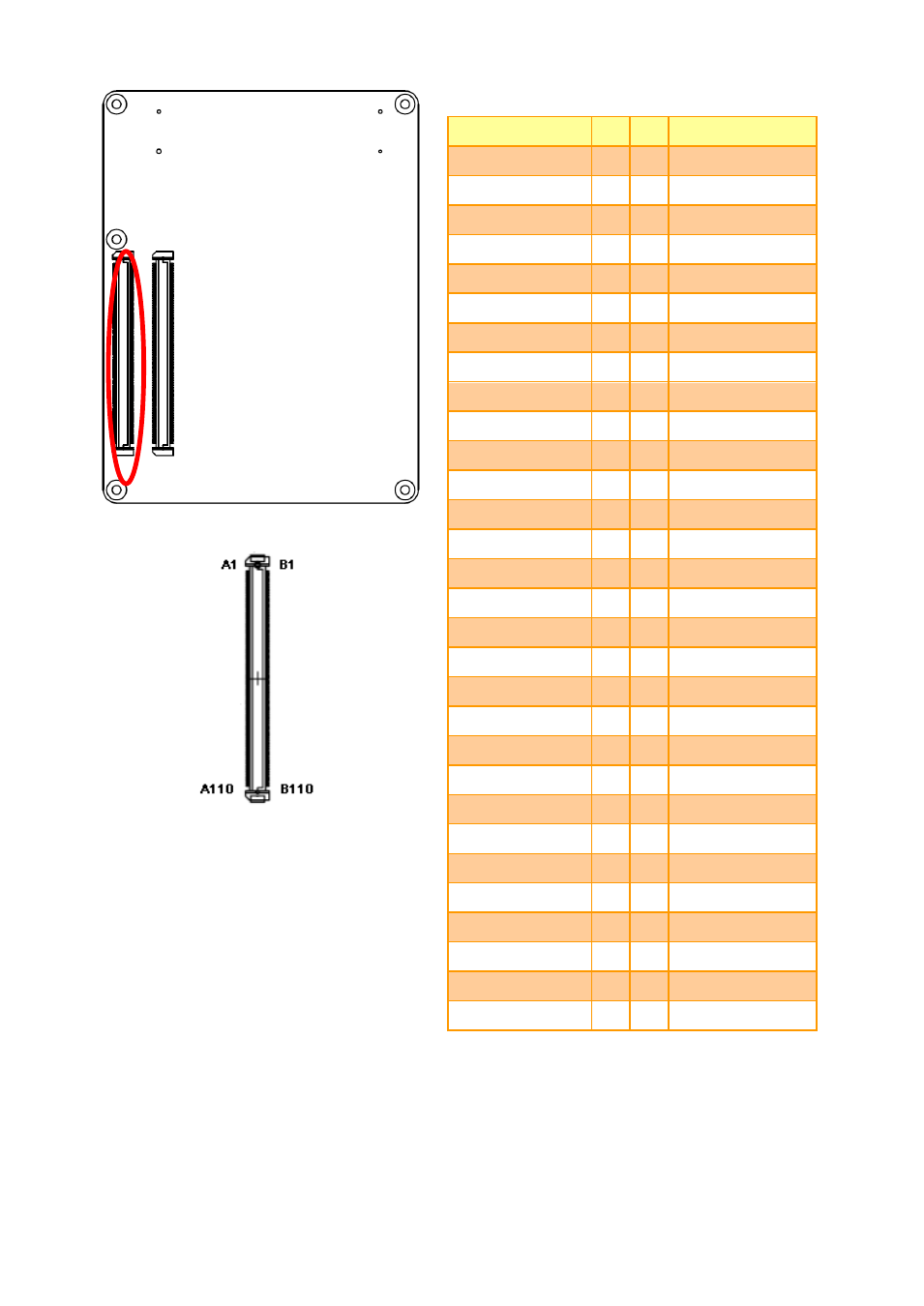

Signal PIN PIN Signal
PCIE2_TX+ A61 B61 PCIE2_RX+
PCIE2_TX- A62 B62 PCIE2_RX-
GPI1 A63 B63 GPO3
PCIE1_TX+ A64 B64 PCIE1_RX+
PCIE1_TX- A65 B65 PCIE1_RX-
GND A66 B66 WAKE0#
GPI2 A67 B67 WAKE1#
PCIE0_TX+ A68 B68 PCIE0_RX+
PCIE0_TX- A69 B69 PCIE0_RX-
GND A70 B70 GND
LVDSA_DATA0 A71 B71 LVDSB_DATA0
LVDSA_DATA#0 A72 B72 LVDSB_DATA#0
LVDSA_DATA1 A73 B73 LVDSB_DATA1
LVDSA_DATA#1 A74 B74 LVDSB_DATA#1
LVDSA_DATA2 A75 B75 LVDSB_DATA2
LVDSA_DATA#2 A76 B76 LVDSB_DATA#2
LVDS_VDD_EN A77 B77 LVDSB_DATA3
LVDSA_DATA3 A78 B78 LVDSB_DATA#3
LVDSA_DATA#3 A79 B79 LVDS_BKLT_EN
GND A80 B80 GND
LVDSA_CLK A81 B81 LVDSB_CLK
LVDSA_CLK# A82 B82 LVDSB_CLK#
LVDS_DDC_CLK A83 B83 LVDS_BKLT_CTRL
LVDS_DDC_DATA A84 B84 5VSB
GPI3 A85 B85 5VSB
NC A86 B86 5VSB
NC A87 B87 5VSB
PCIE_CLK_ REF+ A88 B88 BIOS_DIS1
PCIE_CLK_ REF- A89 B89 VGA_RED
GND A90 B90 GND
