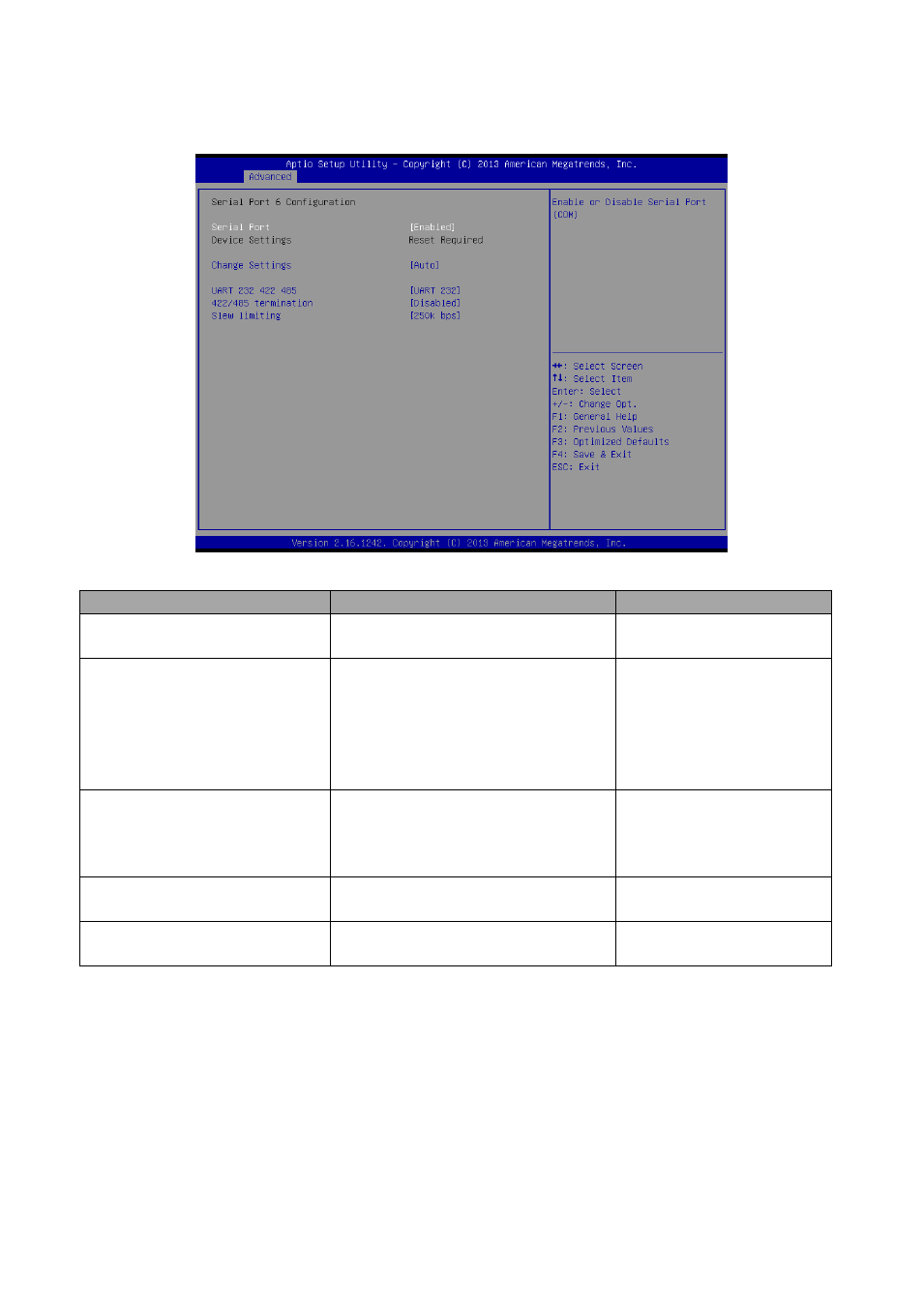

3.6.2.2.6 Serial Port 6 Configuration
Item Option Description
Serial Port
Enabled[Default],
Disabled
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=208h; IRQ=10;
IO=200h; IRQ=3,4,5,6,7,10,11,12;
IO=208h; IRQ=3,4,5,6,7,10,11,12;
IO=210h; IRQ=3,4,5,6,7,10,11,12;
IO=218h; IRQ=3,4,5,6,7,10,11,12;
Select an optimal setting for
super IO device.
UART 232 422 485
UART 232 (LOOPBACK)
UART 232[Default]
UART 485
UART 422
Change the Serial Port as
RS232/ 422/ 485
422/ 485 termination
Disabled[Default]
Enabled
TERM from GPIO.
Slew limiting
10M bps
250k bps[Default]
SLEW from GPIO.
