Page 26: 4 ebm-byts jumpers & connectors settings

EMS-BYT Series

26 EMS-BYT Series Quick Reference Guide

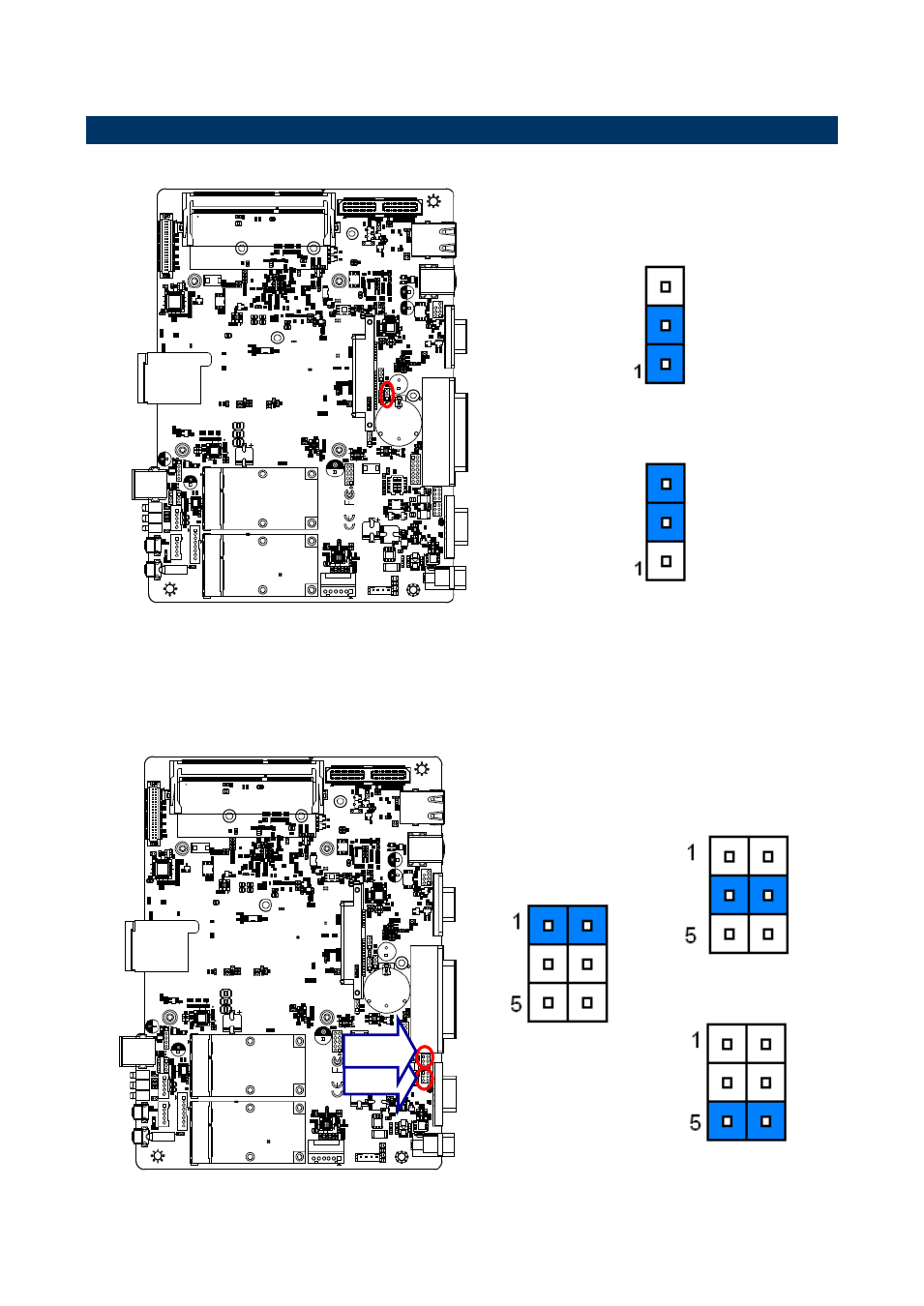

2.4 EBM-BYTS Jumpers & Connectors settings

2.4.1

Clear CMOS (JCMOS1)

*Default

Protect*

Clear CMOS

2.4.2

COM 1/2 pin 9 signal select (JRI1/2)

* Default

Ring*

+5V

+12V

JRI1

JRI2
