EMS-BYT Series

56 EMS-BYT Series Quick Reference Guide

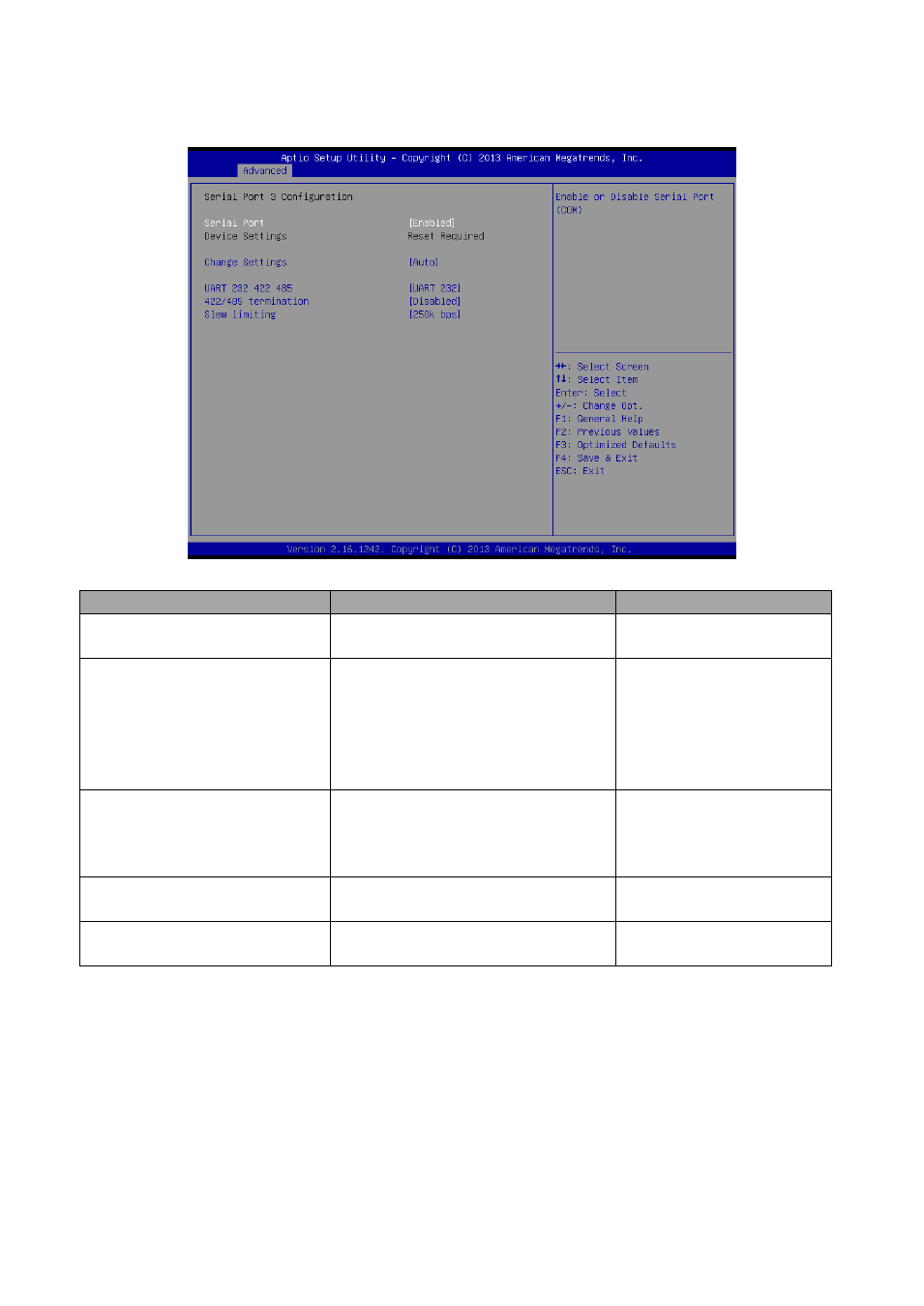

3.6.2.2.3 Serial Port 3 Configuration

Item

Option

Description

Serial Port

Enabled[Default],

Disabled

Enable or Disable Serial Port

(COM).

Change Settings

Auto[Default]

IO=3E8h; IRQ=5;

IO=3F8h; IRQ=3,4,5,6,7,10,11,12;

IO=2F8h; IRQ=3,4,5,6,7,10,11,12;

IO=3E8h; IRQ=3,4,5,6,7,10,11,12;

IO=2E8h; IRQ=3,4,5,6,7,10,11,12;

Select an optimal setting for

super IO device.

UART 232 422 485

UART 232 (LOOPBACK)

UART 232[Default]

UART 485

UART 422

Change the Serial Port as

RS232/ 422/ 485

422/ 485 termination

Disabled[Default]

Enabled

TERM from GPIO.

Slew limiting

10M bps

250k bps[Default]

SLEW from GPIO.
