EMS-BYT Series
54 EMS-BYT Series Quick Reference Guide
Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME).
Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF).

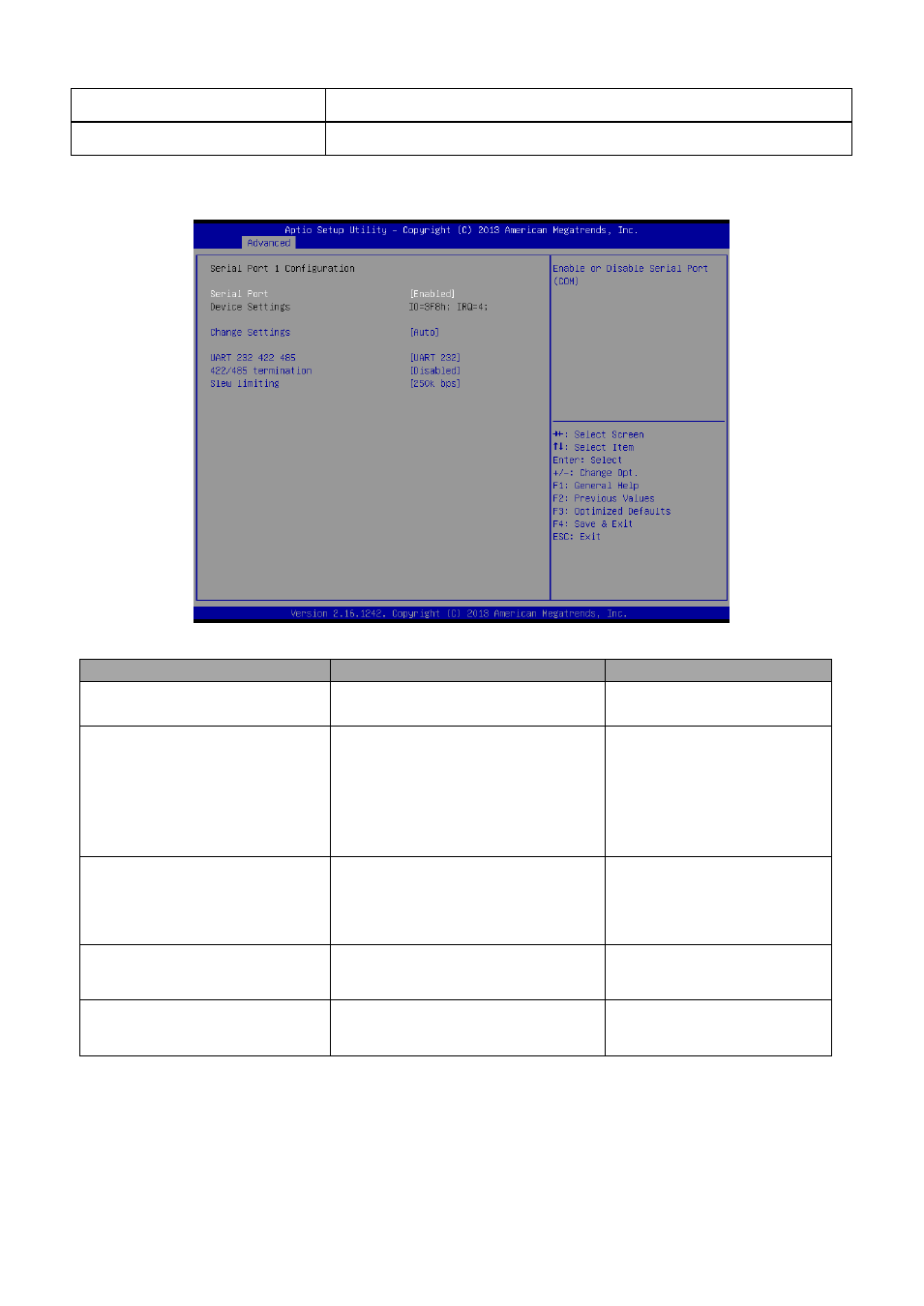

3.6.2.2.1 Serial Port 1 Configuration
Item Option Description
Serial Port
Enabled[Default],
Disabled
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=3F8h; IRQ=4;
IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12;
IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12;
IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12;
IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;
Select an optimal setting for
Super IO Device.
UART 232 422 485
UART 232 (LOOPBACK)
UART 232[Default]
UART 485
UART 422
Change the Serial Port as
RS232/ 422/ 485
422/ 485 termination
Disabled[Default]
Enabled
TERM from GPIO.
Slew limiting
10M bps
250k bps[Default]
SLEW from GPIO.
