EMS-CDV
26 EMS-CDV Quick Reference Guide

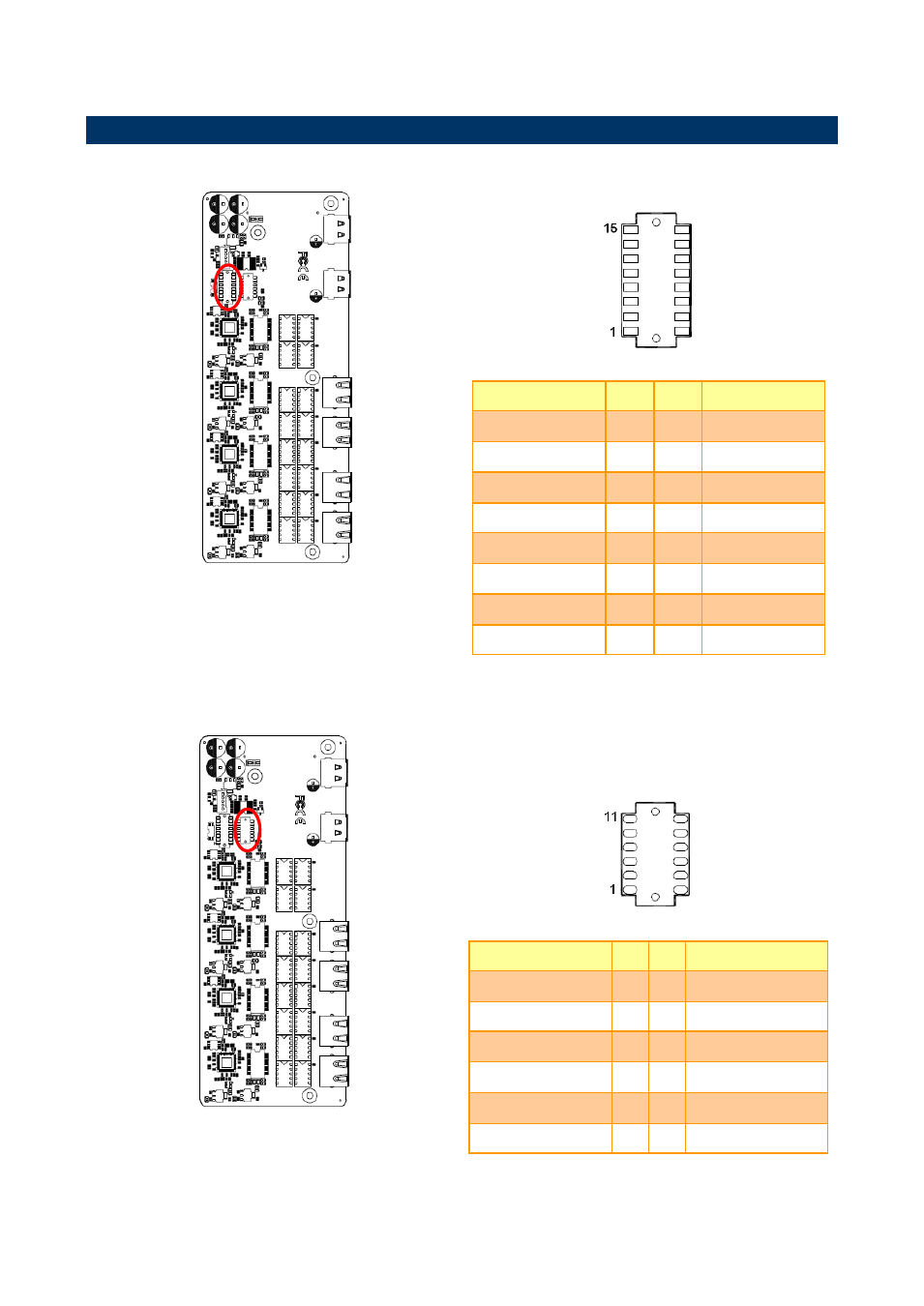

2.7 AUX-M02 Jumpers & Connectors settings
2.7.1 LAN ACT/LNK/SPD LED (JLANLED)
Signal PIN PIN Signal
LAN3_LNK1000 15 16 LAN5_LNK1000
LAN3_LNK100 13 14 LAN5_LNK100
LAN3_ACT- 11 12 LAN5_ACT-
LAN3_ACT+ 9 10 LAN5_ACT+
LAN2_LNK1000 7 8 LAN4_LNK1000
LAN2_LNK100 5 6 LAN4_LNK100
LAN2_ACT- 3 4 LAN4_ACT-
LAN2_ACT+ 1 2 LAN4_ACT+
2.7.2 Normal/Bypass mode LED (JLANMODE)
Signal PIN PIN Signal
LAN23_WDT- 11 12 LAN45_WDT-
LAN23_WDT+ 9 10 LAN45_WDT+
LAN23_BYPASS- 7 8 LAN45_BYPASS-
LAN23_BYPASS+ 5 6 LAN45_BYPASS+
LAN23_NORMAL- 3 4 LAN45_NORMAL-
LAN23_NORMAL+ 1 2 LAN45_NORMAL+
