ERX-Q67 User’s Manual
86 ERX-Q67 User’s Manual

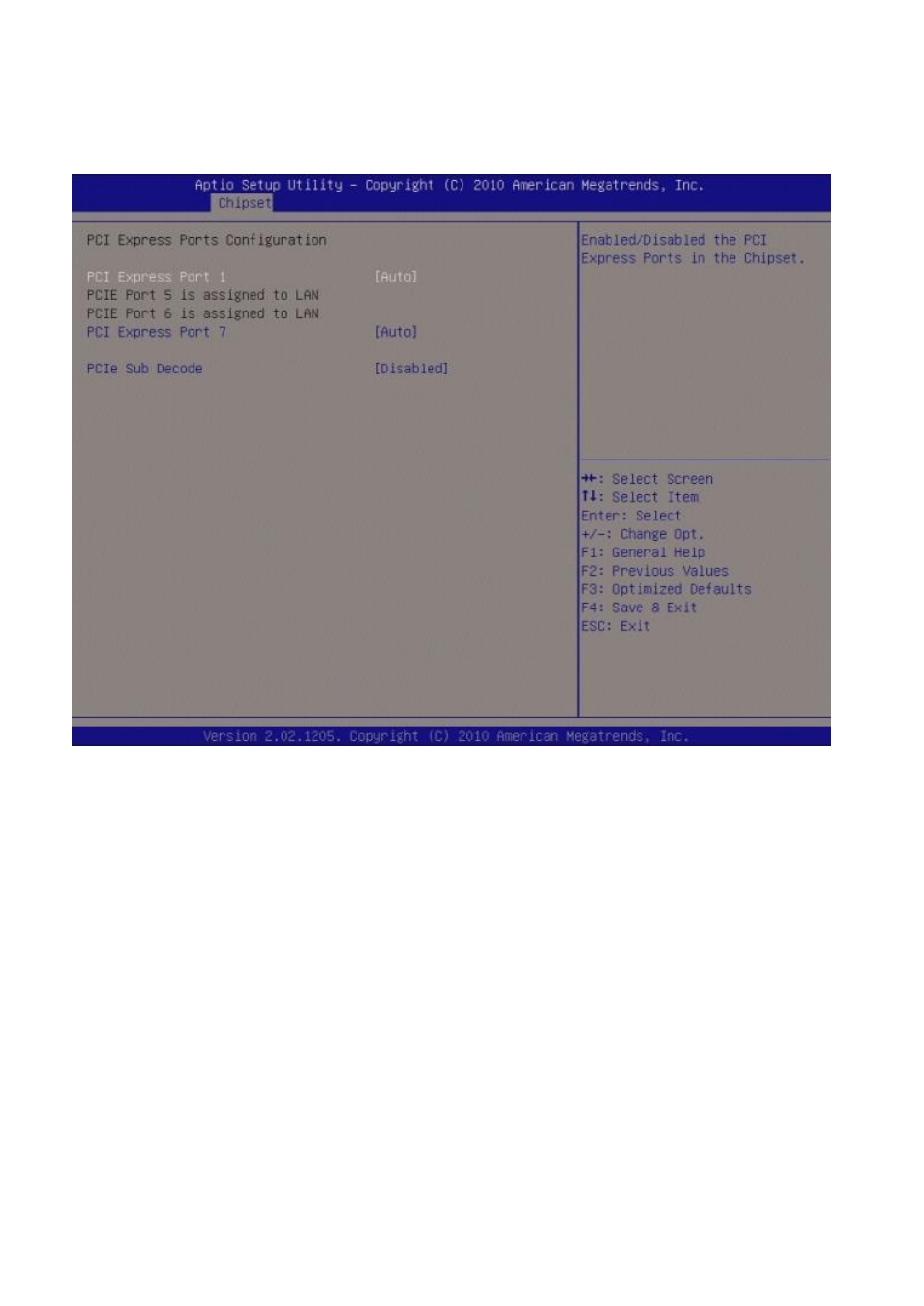

3.4.15.2.1 PCI Express Ports Configuration
 PCI Express Port 1
Enable/Disable PCI Express Port 1
Configuration options: [Disabled] [Enabled][Auto]
 PCI Express Port 7
Enable/Disable PCI Express Port 7
Configuration options: [Disabled] [Enabled][Auto]
 PCIe Sub Decode [Disable]
Enable/Disable PCIe Sub Decode Port. ( This option is available when subtractive decode
agent Enable (PCHTrap9[14] =
‘1b’)
Configuration options: [Disabled] [Enabled][Auto]
