Item Option Description
OnChip SATA Type
Native IDE
AHCI
Legacy IDE
Native IDE /n RAID /n AHCI /n
AHCI / n Legacy IDE /n
IDEAHCI /n HyperFlash.
SATA Force Raid
No Function
Force Raid
No function: Raid 5
Force Raid: Raid 0/1
OnChip IDE mode
Legacy Mode
Native Mode
Options for OnChip IDE mode
SATA IDE Combined Mode
Enabled
Disabled
Enables or disables SATA IDE
Combined Mode
Combined Mode Option
SATA as primary
SATA as secondary
Settings for combined Mode
Option
SATA ESP on PORT0/1/2/3/4/5
Enabled
Disabled
Enables or disables SATA ESP
on PORT0/1/2/3/4/5
SATA Power on
PORT0/1/2/3/4/5 Enabled
Power down
Settings for SATA Power on
PORT0/1/2/3/4/5

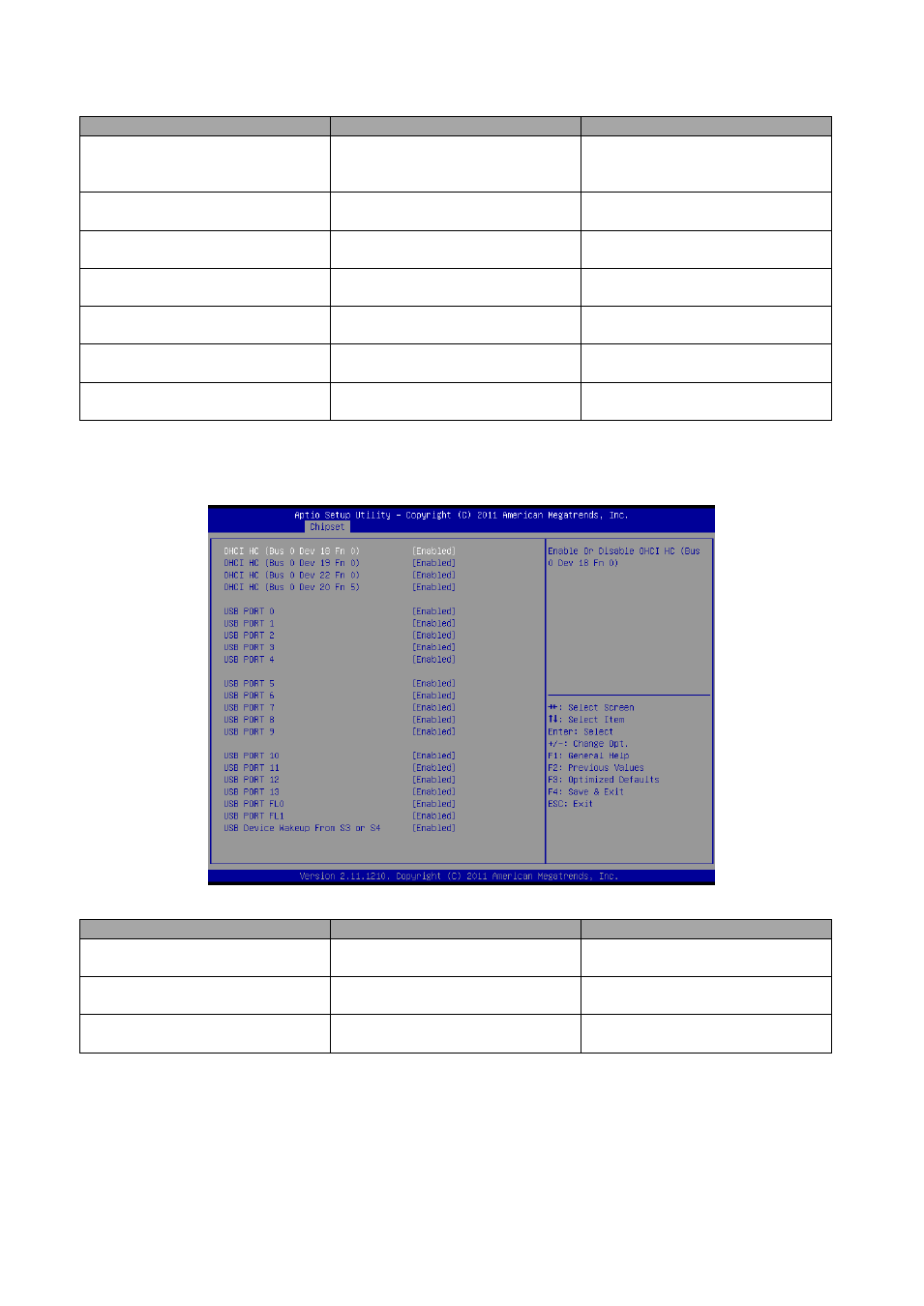

3.6.3.3.2 SB USB Configuration
Item Option Description
USB PORT
0/1/2/3/4/5/6/7/8/9/10/11/12/13
Enabled
Disabled
Enables or disables USB PORT
0/1/2/3/4/5/6/7/8/9/10/11/12/13
USB PORT FL0/FL1
Enabled
Disabled
Enables Or Disable USB PORT
FL0/FL1
USB Device Wakeup From S3
or S4
Enabled
Disabled
Enables or disables USB Device
Wakeup From S3 or S4
