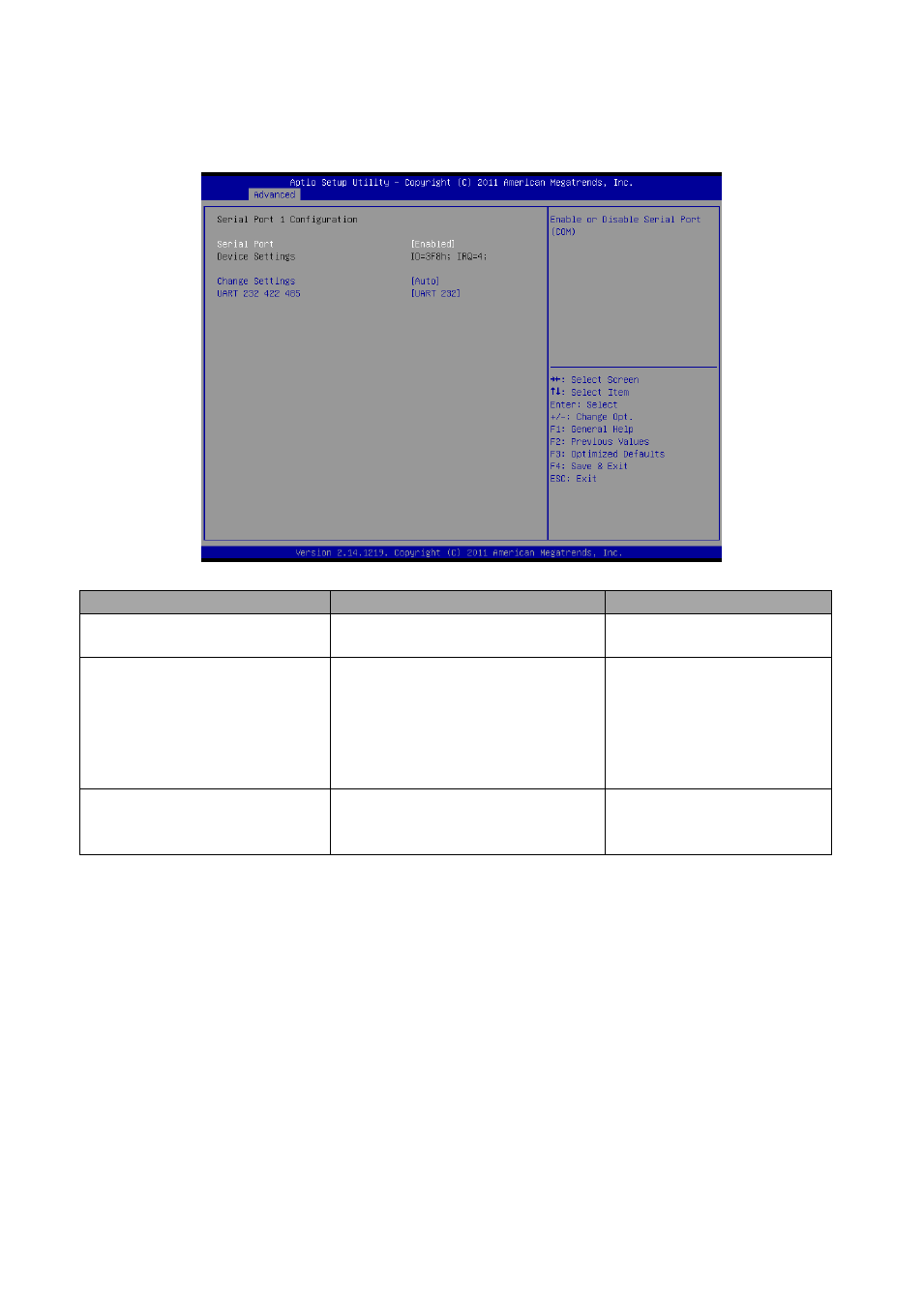

3.6.2.13.1 Serial Port 1 Configuration

Item

Option

Description

Serial Port

Enabled,

Disabled[Default]

Enable or Disable Serial Port

(COM)

Change Settings

Auto[Default]

IO=3F8h; IRQ=4,

IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12

IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12

IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12

IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12

Select an optimal setting for

Super IO device.

UART 232 422 485

UART 232[Default],

UART 422,

UART485

Change the Serial Port as

RS232/ 422/ 485
