User’s Manual
EPI-QM87R/ EPI-QM87 User ’s Manual 53
UART 232 422 485
UART 232[Default],
UART 422,
UART485
Change the Serial Port as
RS232/422/485.

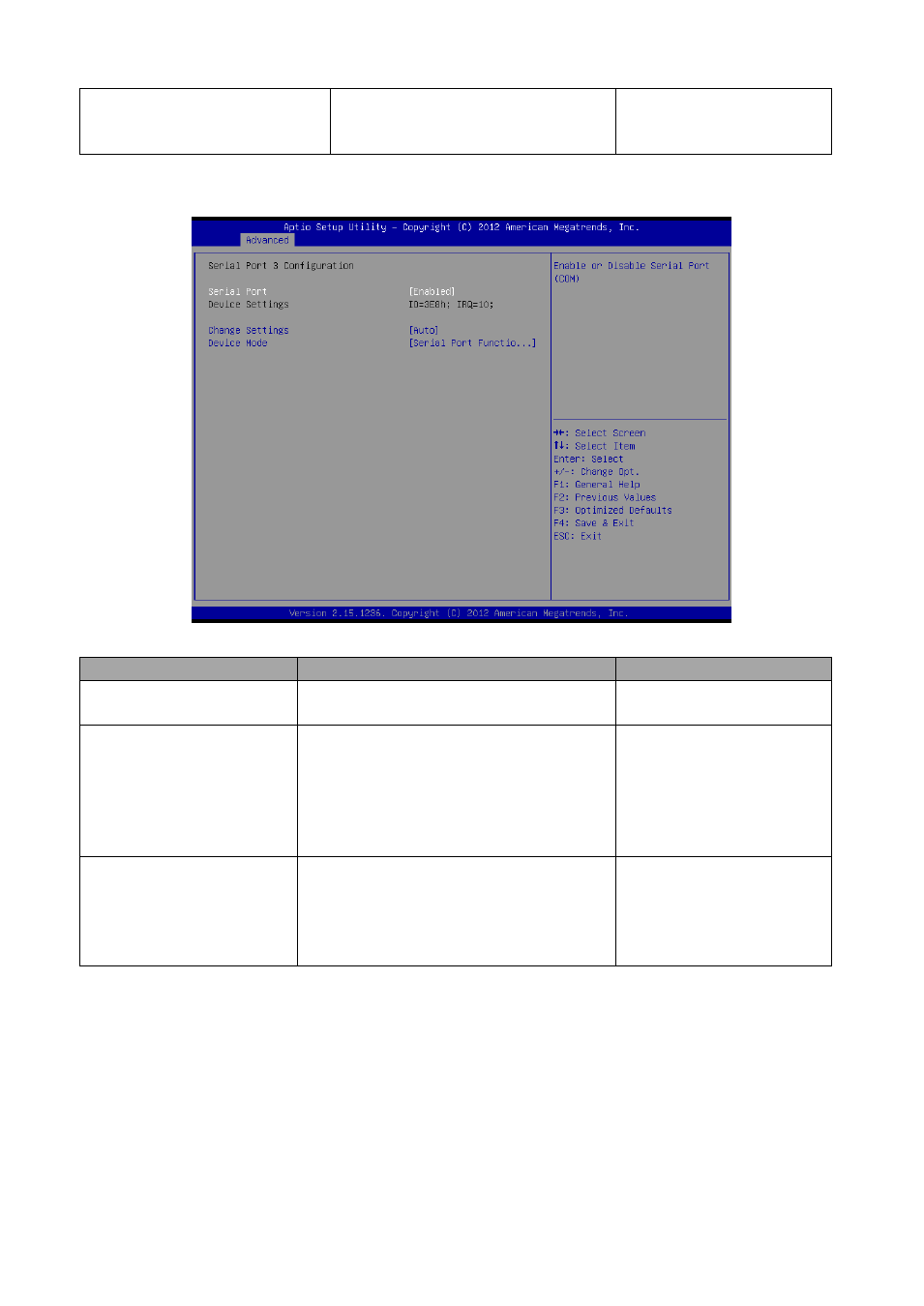

3.6.2.11.3 Serial Port 3 Configuration
Item Option Description
Serial Port
Enabled[Default]
Disabled
Enable or Disable Serial Port
(COM)
Change Settings
Auto[Default]
IO=3E8h; IRQ=10
IO=3E8h; IRQ=3,4,5,6,7,10,11,12
IO=2E8h; IRQ=3,4,5,6,7,10,11,12
IO=2F0h; IRQ=3,4,5,6,7,10,11,12
IO=2E0h; IRQ=3,4,5,6,7,10,11,12
Select an optimal setting for
super IO device.
Device Mode
Serial Port Function Mode[Default]
IR Mode,Pusle 1.6us, Full Duplex
IR Mode,Pusle 1.6us, Half Duplex
IR Mode,Pusle 3/16Bit Timer, Full Duplex
IR Mode,Pusle 3/16Bit Timer, Half Duplex
Change the Serial Port
mode.
