ATA (PI) 80Pin Cable Detection
Host & Device,
Host,
Device
This item allows you to select ATA cable
detection mode.

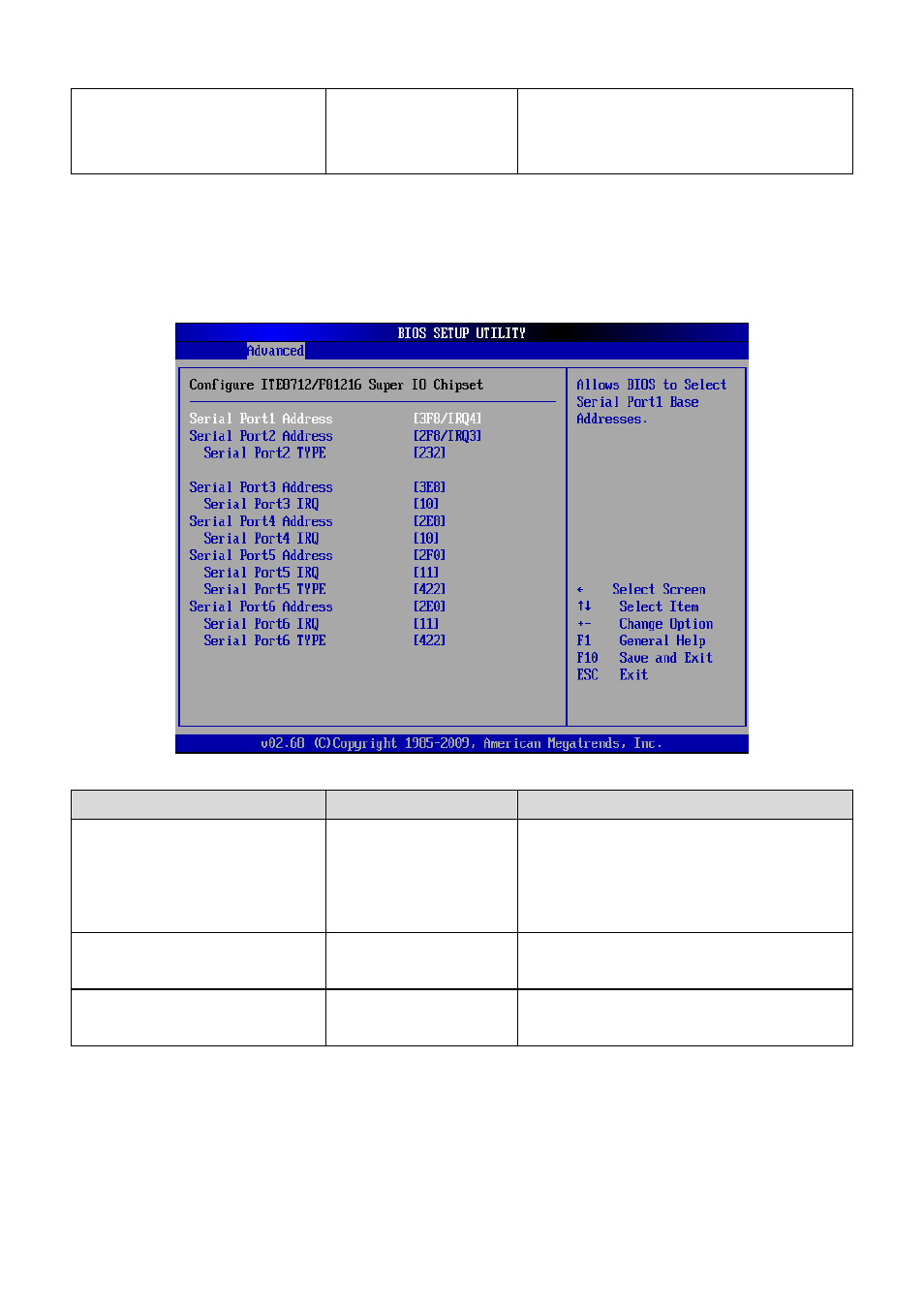

4.6.2.3 Super IO Configuration
You can use this item to set up or change the Super IO configuration for FDD controllers,
parallel ports and serial ports.
Item Options Description
Serial Port 1/ 2/ 3/ 4/ 5/ 6
Address
Disabled,
3F8, 2F8,
3E8, 2E8,
2F0, 2E0
This item allows you select serial port 1 ~ 6 of
base addresses.
Serial Port 2/ 5/ 6 Type
422,
485
This item allows you select serial port 2/ 5/ 6 of
type.
Serial Port 3/ 4/ 5/ 6 IRQ 4/ 9/ 10/ 11
This item allows you select serial port 3 ~ 6 of
IRQ.
