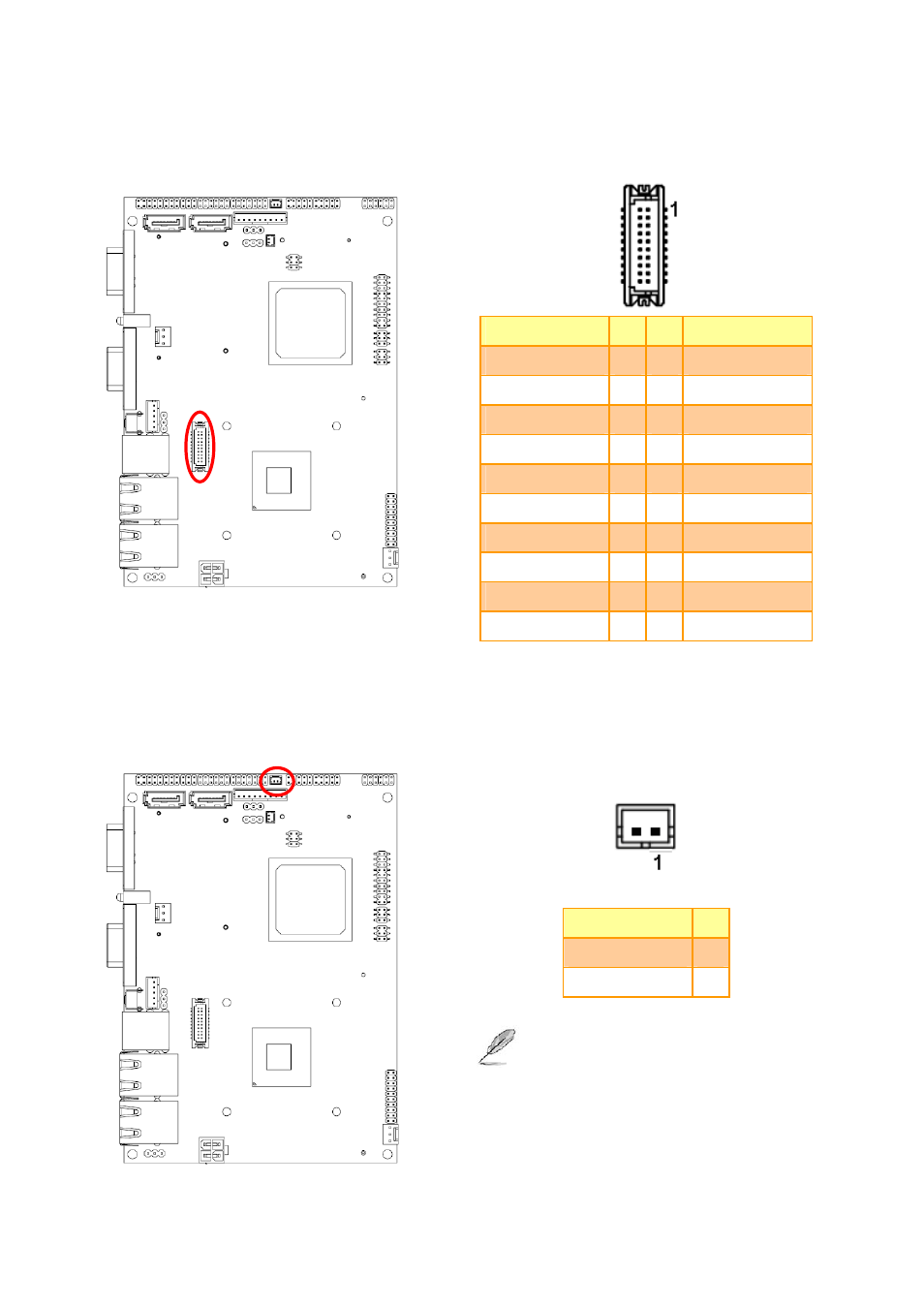

2.4.16 LVDS connector (JLVDS)
Signal PIN PIN Signal
GND 2 1 GND
LVDS_0- 4 3 LVDS_0+
LVDS_1- 6 5 LVDS_1+
LVDS_2- 8 7 LVDS_2+
NC 10 9 NC
LVDS_CLK- 12 11 LVDS_CLK+
GND 14 13 GND
I_SCL 16 15 I_SDA
+5V 18 17 +3.3V
+5V 20 19 +3.3V
2.4.17 SATA power connector (S_PWR1)
Signal PIN
SATA_PWR 2
GND 1
Note:
SATA_PWR is +5V for SATA DOM uses.
