ECM-PNV
54 ECM-PNV User’s Manual

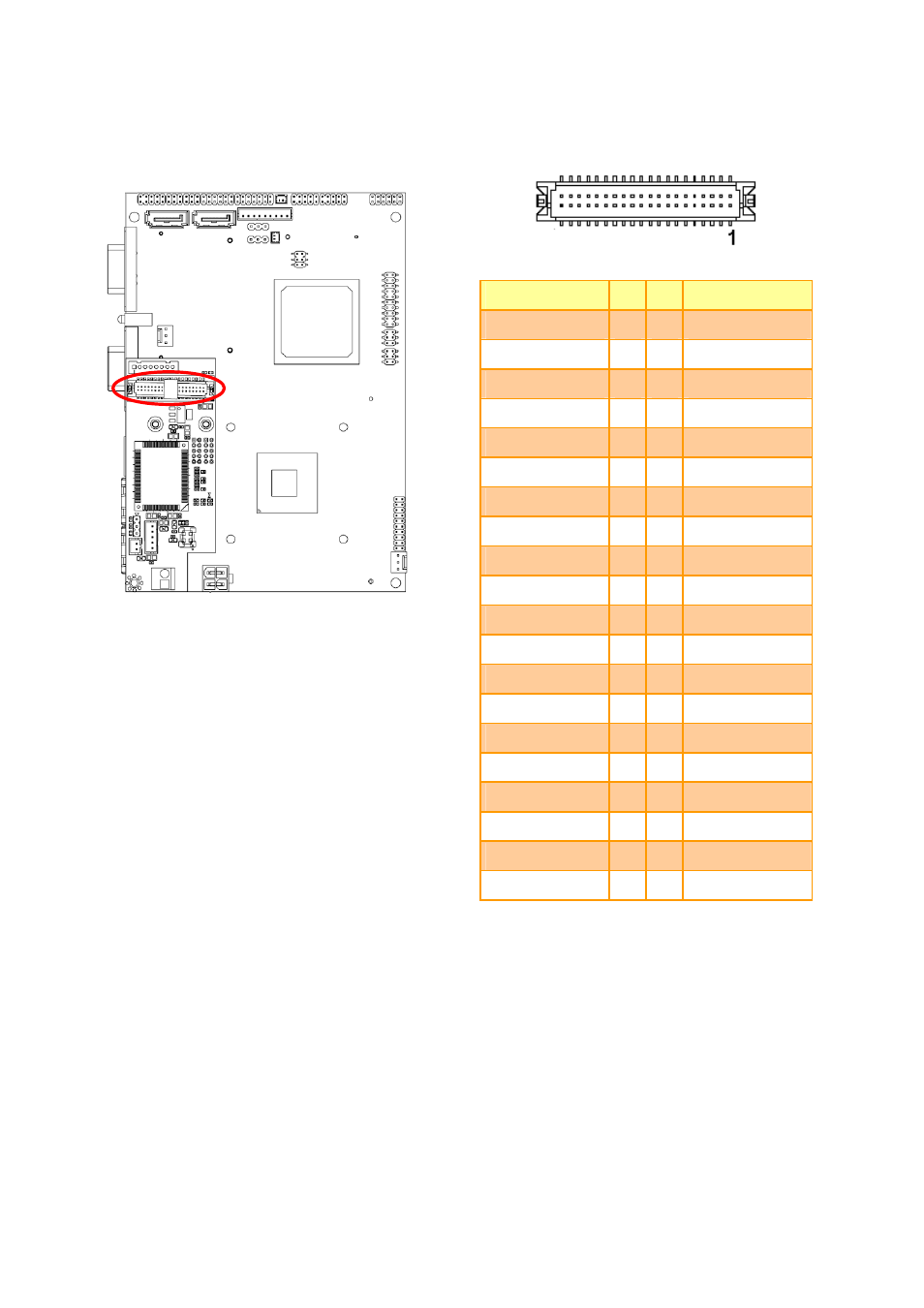

3.4.16 LVDS connector (HJLVDS1)
Signal PIN PIN Signal
+5V 2 1 +3.3V
+5V 4 3 +3.3V
SPDATA 6 5 SPCLK
GND 8 7 GND
YA0P 10 9 YA1P
YA0M 12 11 YA1M
GND 14 13 GND
YA2P 16 15 YA3P
YA2M 18 17 YA3M
GND 20 19 GND
YA4P 22 21 YA5P
YA4M 24 23 YA5M
GND 26 25 GND
YA6P 28 27 YA7P
YA6M 30 29 YA7M
GND 32 31 GND
CLK1P 34 33 CLK2P
CLK1M 36 35 CLK2M
GND 38 37 GND
+12V 40 39 +12V
