ECM-PNV

40 ECM-PNV User’s Manual

3.2.1 Main

Memory

ECM-PNV provides one 200-pin SODIMM socket support up to DDR2 667 SDRAM. The
total maximum memory size is 2GB.

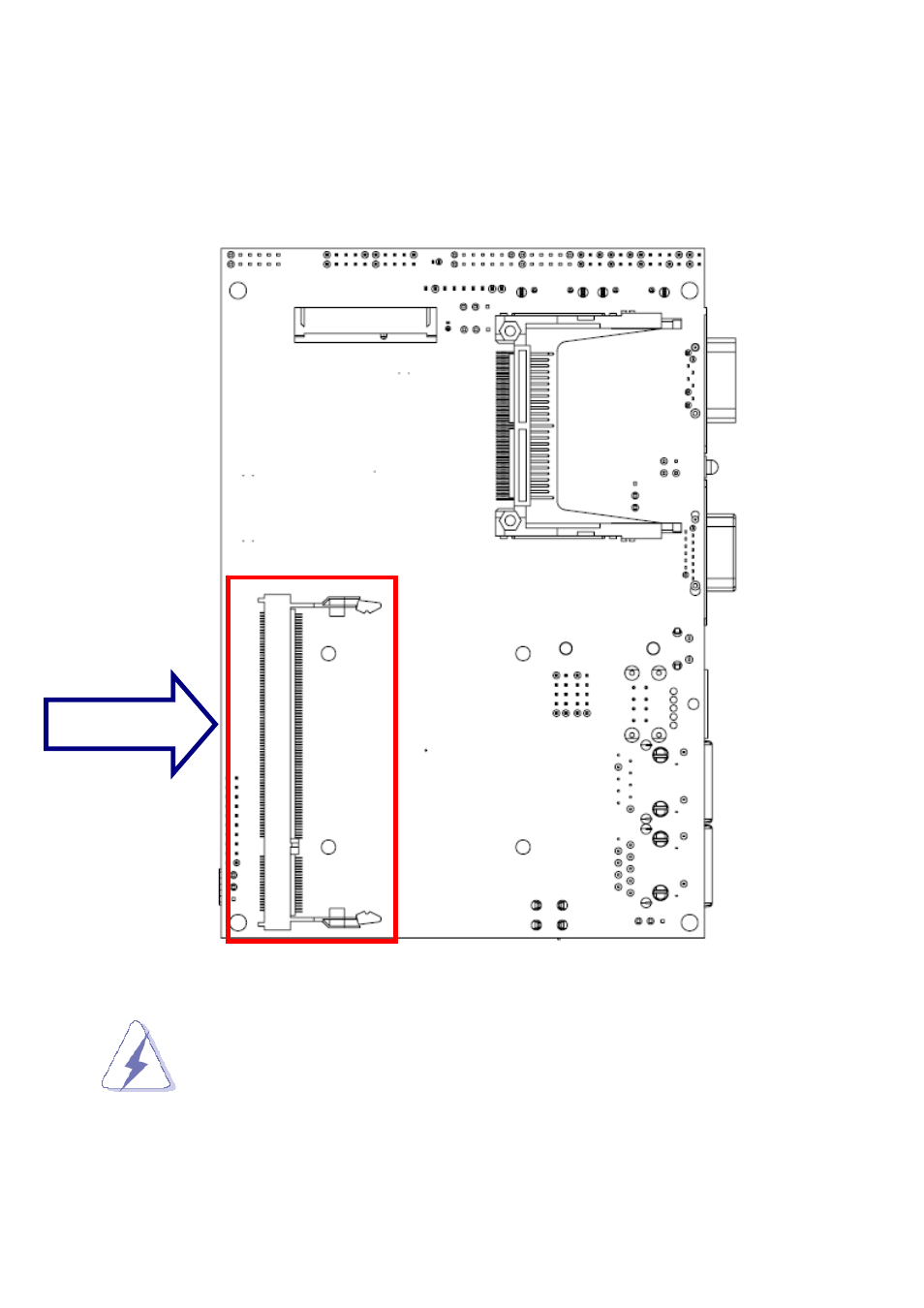

(Rear side)

Make sure to unplug the power supply before adding or removing SODIMMs
or other system components. Failure to do so may cause severe damage to
both the board and the components.

Locate the SODIMM socket on the board.

Hold two edges of the SODIMM module carefully. Keep away of touching its
connectors.

SODIMM
