ECM-KA User’s Manual
34 ECM-KA User’s Manual

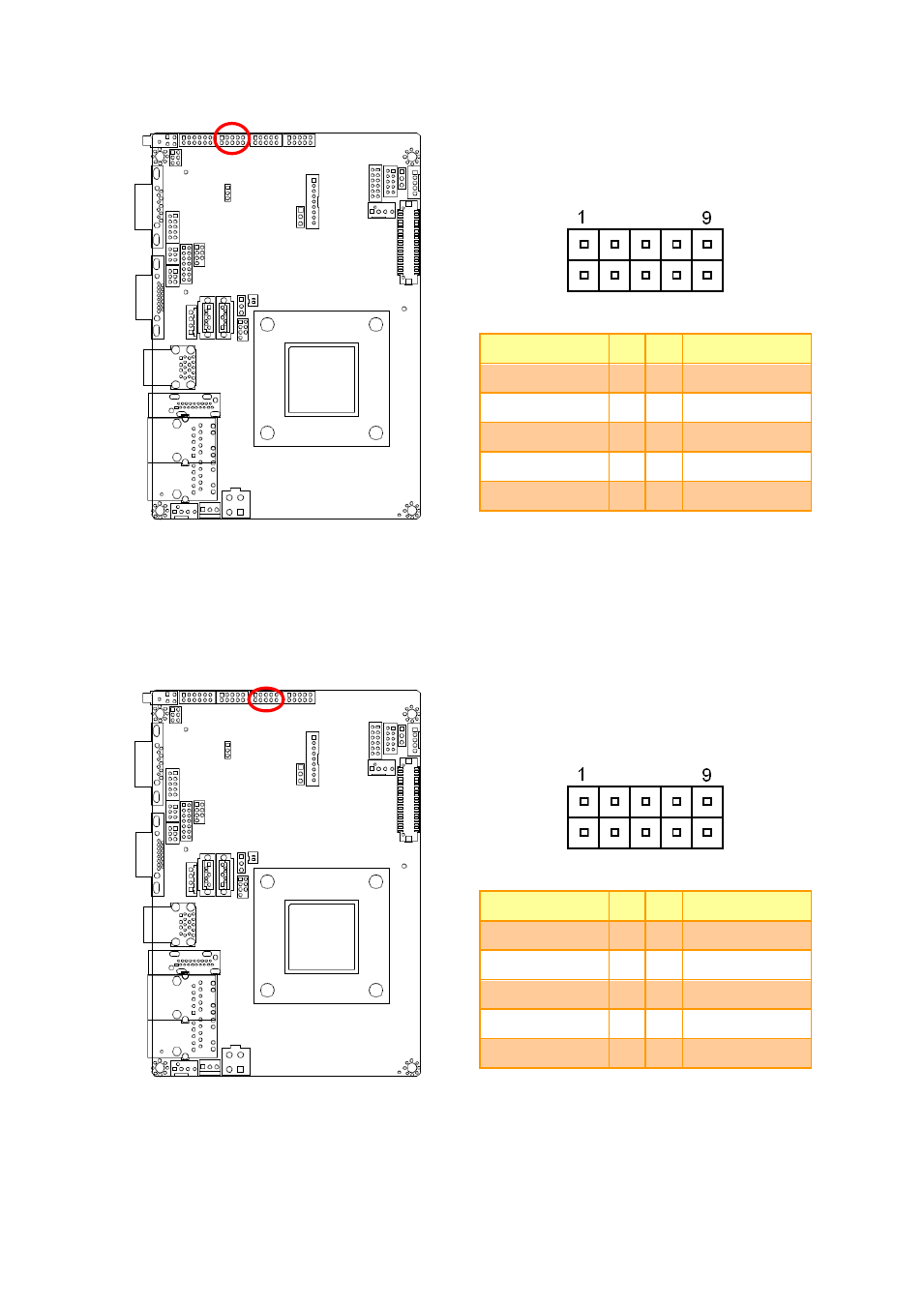

2.4.23 On-board box header for USB2.0 (JUSB1)
Signal PIN PIN Signal
+5V 1 2 +5V
USB_PN_Z_1 3 4 USB_PN_Z_0
USB_PP_Z_1 5 6 USB_PP_Z_0
GND 7 8 GND
GND 9 10 GND
2.4.24 On-board box header for USB2.0 (JUSB2)
Signal PIN PIN Signal
+5V 1 2 +5V
USB_PN_Z_2 3 4 USB_PN_Z_3
USB_PP_Z_2 5 6 USB_PP_Z_3
GND 7 8 GND
GND 9 10 GND
