2.2.1 Main Memory
ECM-KA provides one 204-pin DDR3L SODIMM socket, supports up to 8GB DDR3L 1600
SDRAM.

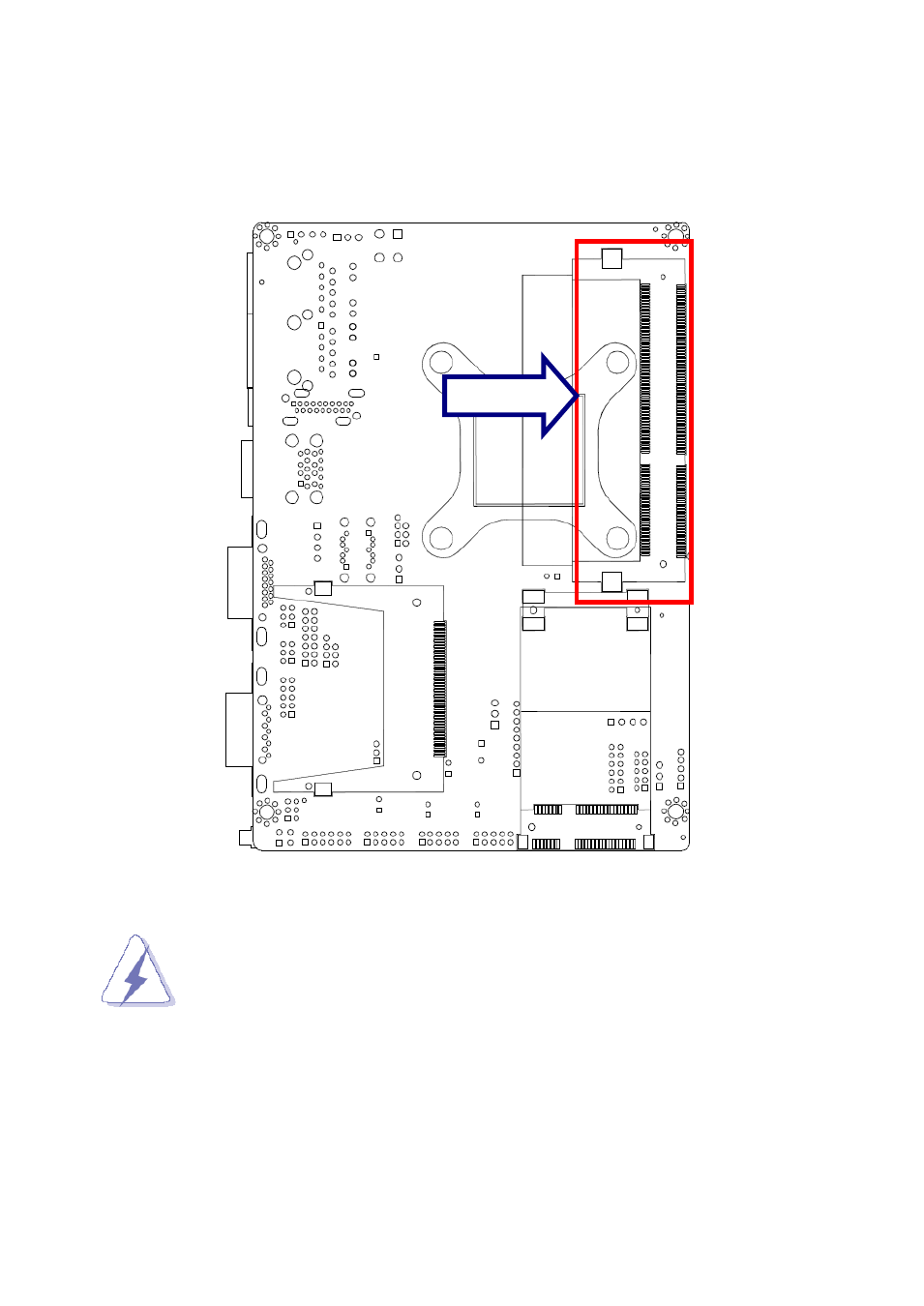

(Rear side)
Make sure to unplug the power supply before adding or removing SODIMMs
or other system components. Failure to do so may cause severe damage to
both the board and the components.

Locate the SODIMM socket on the board.

Hold two edges of the SODIMM module carefully. Keep away of touching its
connectors.

Align the notch key on the module with the rib on the slot.

Firmly press the modules into the socket automatically snaps into the mounting notch.
Do not force the SODIMM module in with extra force as the SODIMM module only fit
SODIMM
