ECM-KA User’s Manual
32 ECM-KA User’s Manual

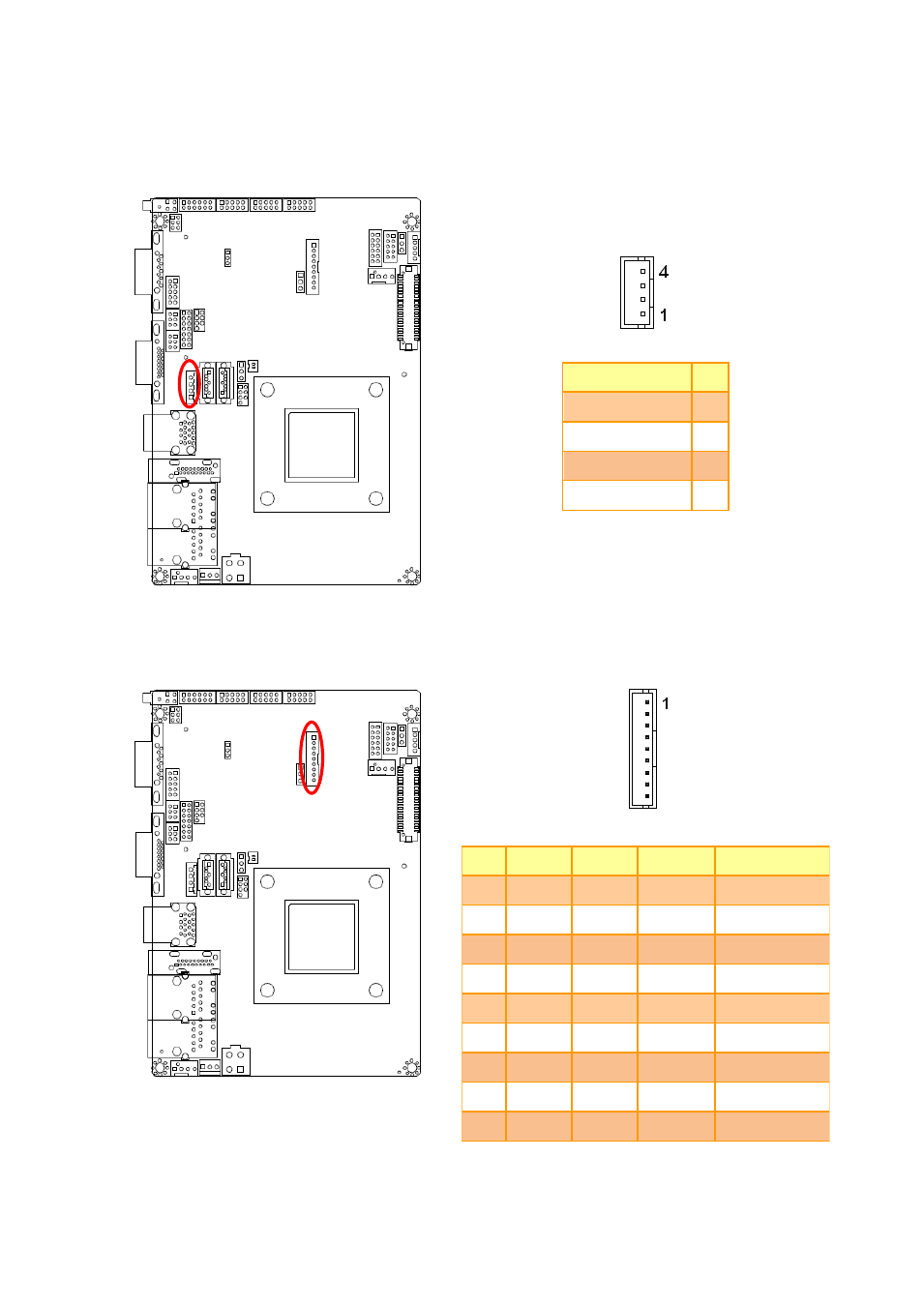

2.4.20 HDD power connector (HD_PWR1)
Signal PIN
+5V 4
+5V 3
GND 2
GND 1
2.4.21 Touch connector (JTOUCH1) (option)
PIN Signal 4-WIRE 5-WIRE 8-WIRE
1 X+ NC NC Right Sense
2 X- NC NC Left Sense
3 Y+ NC NC Bottom Sense
4 SENSE NC Sense Top Sense
5 X+ Right LR Right Excite
6 X- Left LL Left Excite
7 Y+ Bottom UR Bottom Excite
8 Y- Top UL Top Excite
9 GND GND GND GND
