26
Fastmark PT1 User ’s Guide
Printing a Configuration Report
The Configuration report, also known as the Self-Test report, can work as a printer diagnosis tool.
Steps to print a Configuration report are listed below:
1. Verify the Printer Power is off.
2. Make sure the Battery is installed and media is loaded.
3. Press and hold the FEED button, and then press the POWER button to turn on the printer.
4. After the printer starts to print, release the FEED button.
5. Wait until printer finishes printing, then press the POWER Button or FEED button to resume
normal printing mode.

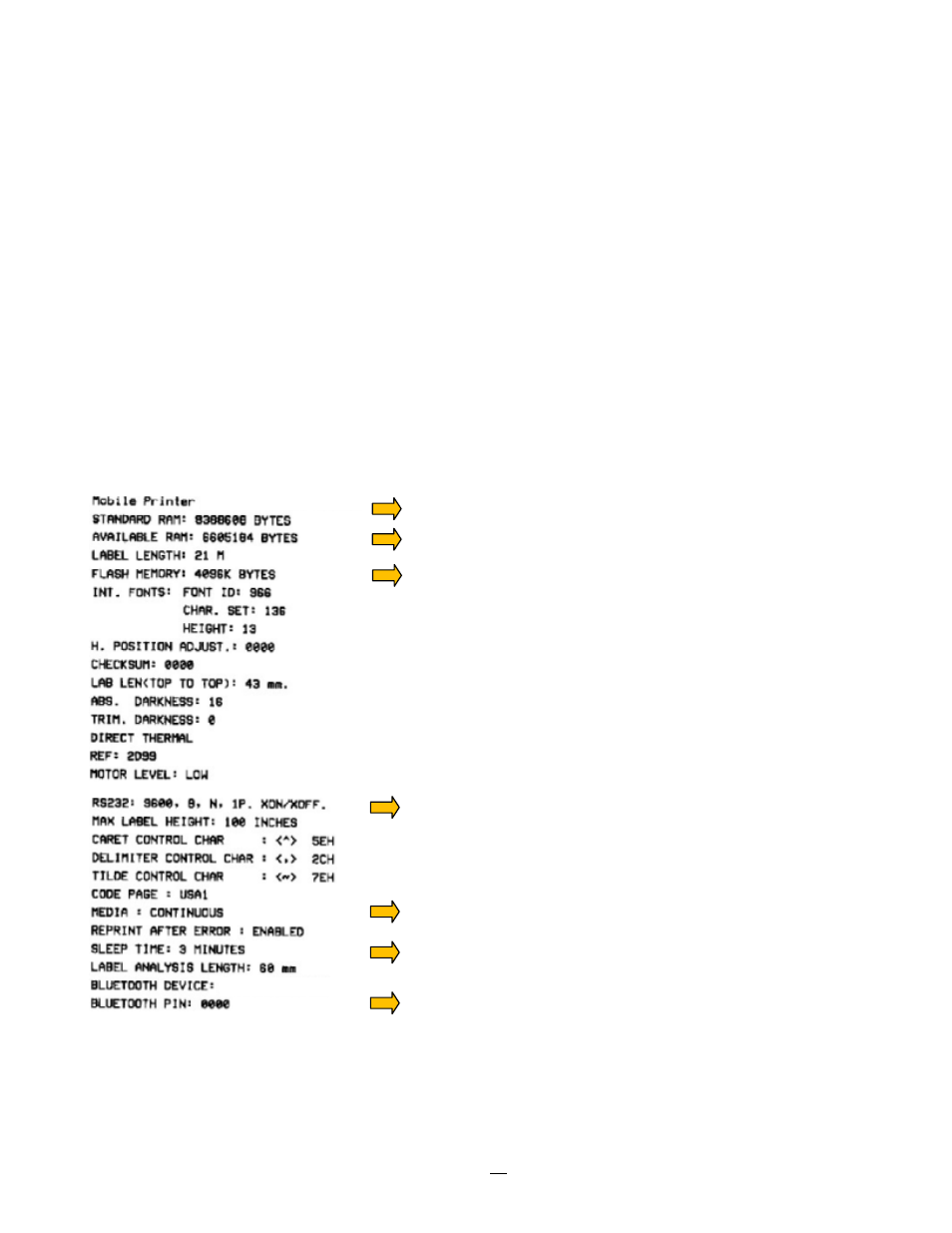

Configuration (Self-Test) Print Sample:
Firmware Version Firmware version
Flash memory capacity
RS-232 parameters
Standby duration (in minutes)
Bluetooth PIN code
Media type setting
Printed label length
