Alwarerc Swing 2-Axis Camera Mount Combo - Manual (Page 9)

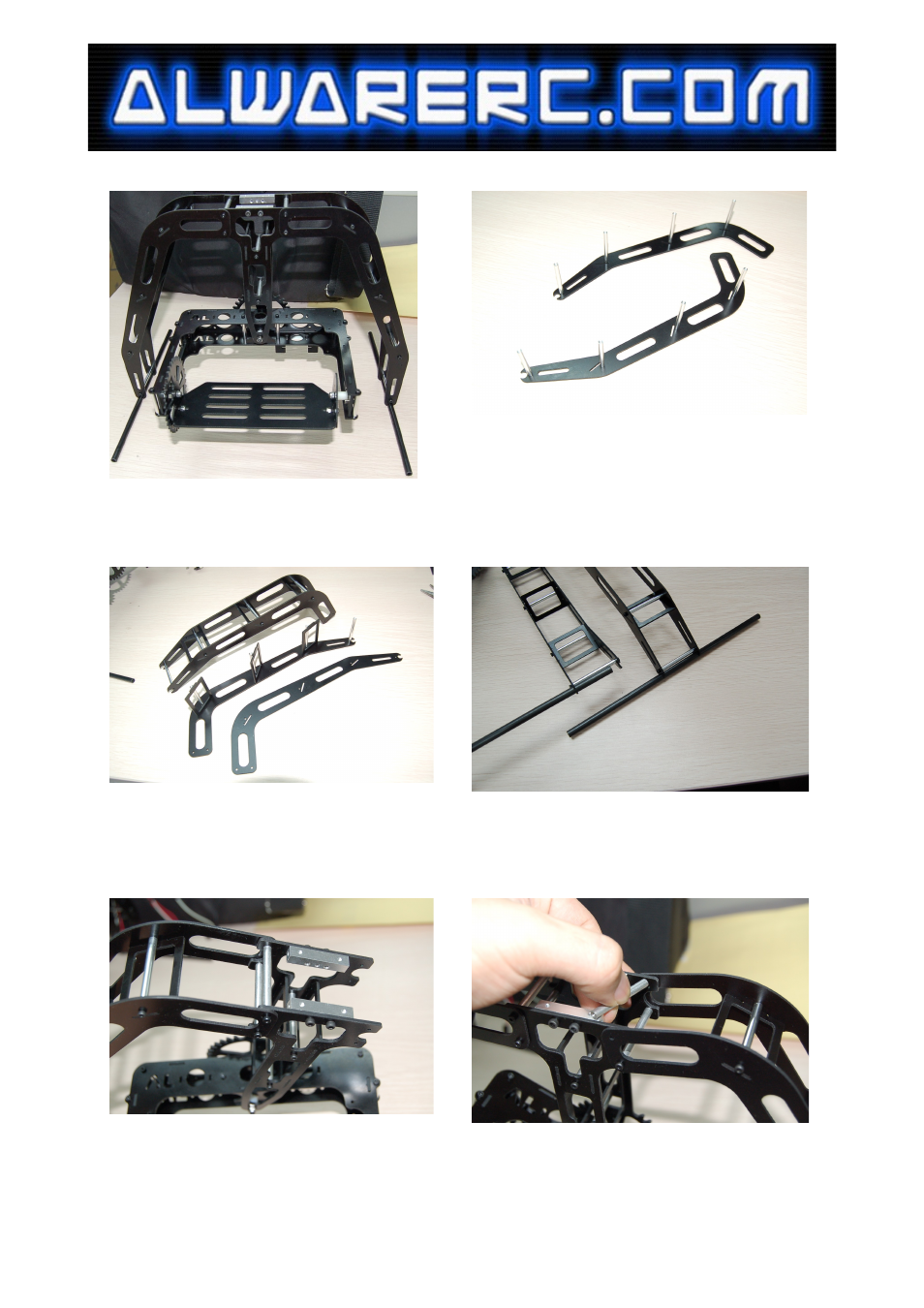

Assembly Step for Arch-Bridge Landing Gear (Not included unless otherwise specified.) :
S22 s23
Complete Assembly of Arch-Bridge Landing
Gear. First, install 4pcs M2x4x39mm Alu Rods to the
Landing Gear frames using M2x6mm Hex Cap
Screws.
S24 s25
Insert 3pcs of Landing Gear Rid to each
side of Landing Gear Frame and install
another Landing Gear Frame together using
M2x6mm Screws. Insert 6mm Fiber Glass Post to the end hole of
the Landing Gear Frames. (You may rotate the
Post into the holes easier.)
S26 S27
Install 2pcs Square Rods to the Trunk Frames
using M2.5x6mm Screws as Shown above.
Next, connect the Trunk Assembly to the
Landing Gear Assemblies using 35mm Alu Rods
and secure it with M2x8mm Screws. Install the other side Landing Gear Assembly to
the Trunk Assembly as shown above.
