Alwarerc Swing 2-Axis Camera Mount Combo User Manual

Page 6

Text mode
Original mode

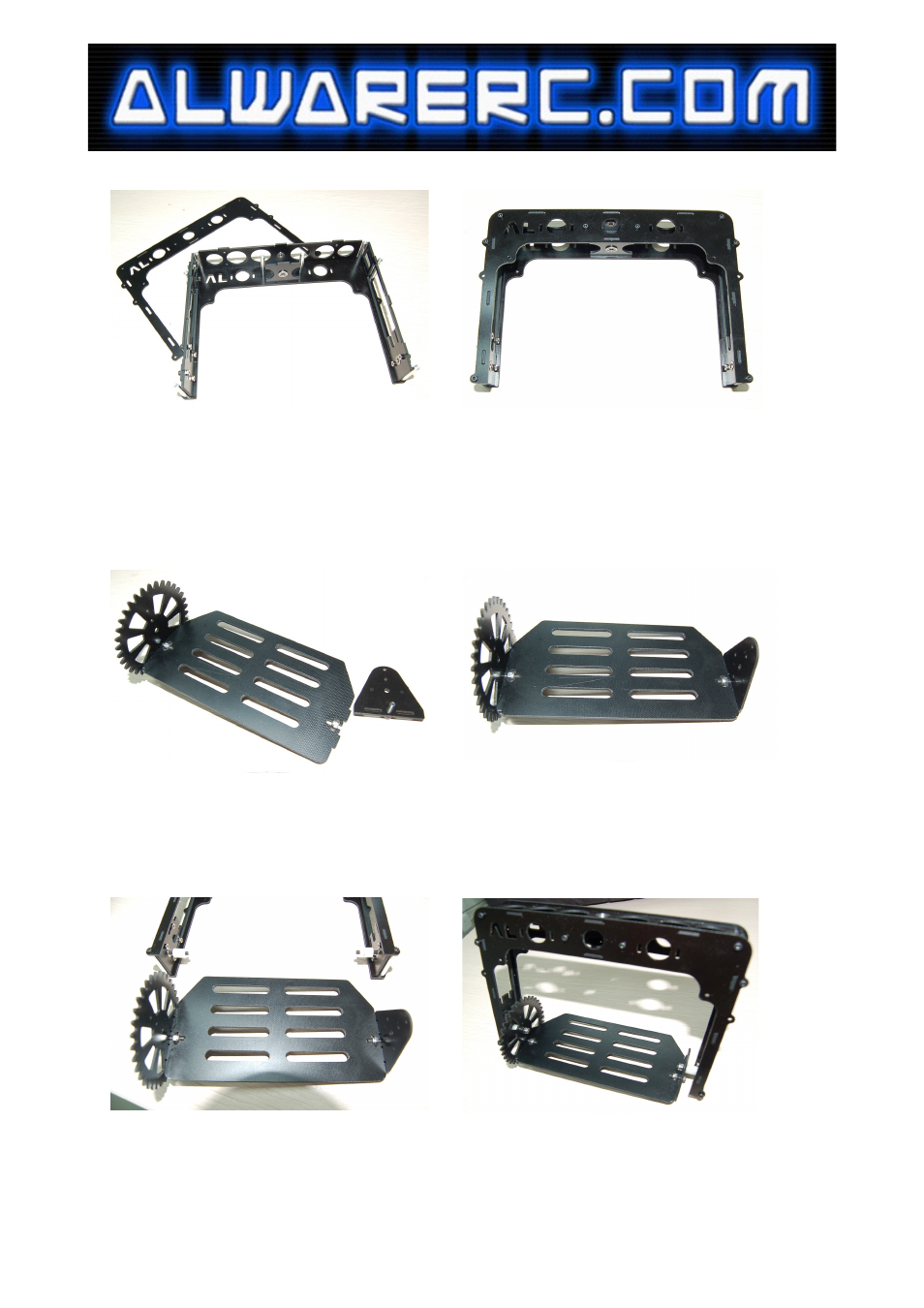

Assembly Step :

Install the other pieces (S4 & S5). Please
follow the installation direction as the photo

shown above. The edge of all Flange Bearings
must facing to the outwards direction.

Install another U-board Frame to the U-board
Assembly and secure it using M2x6mm

Screws.

S10

Install the Camera Stand Frame, Tilt Gear
and the Tri-Frame together using M3x10mm
screws, 3x8x.8mm Washers and M3 self-lock
Nuts.

Completed Cam Stand Assembly of Step 9.

S11

S12

Install the Cam Stand Assembly to the U-
board Assembly using M3x18mm Screws, 9mm
Nylon Washers and M3 Self-Lock Nuts. (Adjust
the tightness of the screws in this step as to
make sure the Tilt Axis can move smoothly.)

Completed U-board-stand Assembly.
