Alwarerc Swing 2-Axis Camera Mount Combo User Manual
Page 10

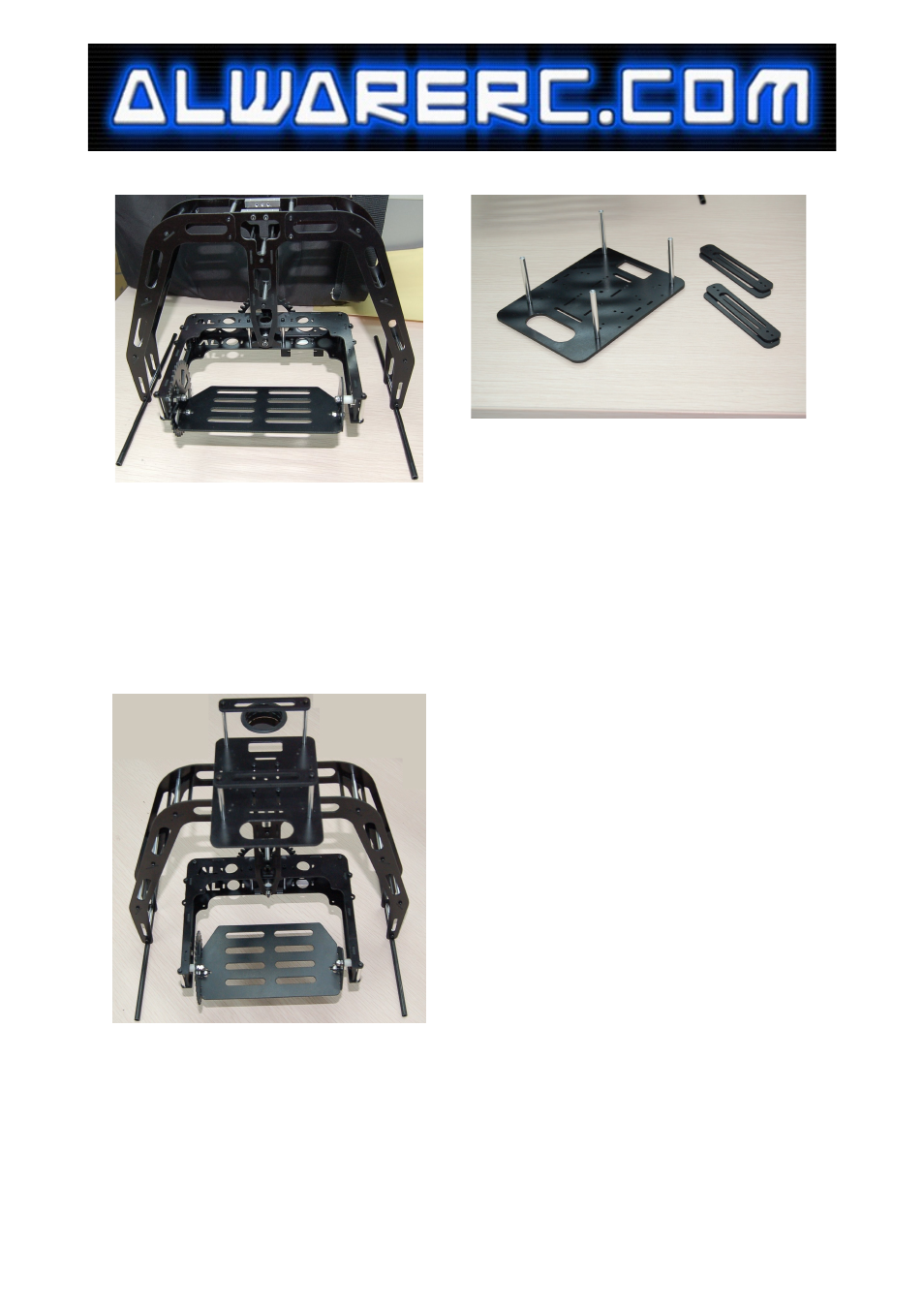

Assembly Steps :
S28
S29
Completed assembly.
Install 4pcs 39mm Alu Rods to the
Mounting Frame and secured with
M2x6mm Screws. (Different Machines
will need to use different holes on the
Mounting Frame. More details are
shown bellow.)
S30
Install the Mounting Frame to the
Square Rods which has been installed
on the Trunk Frames using M2x8mm
Hex Cap Screws.
