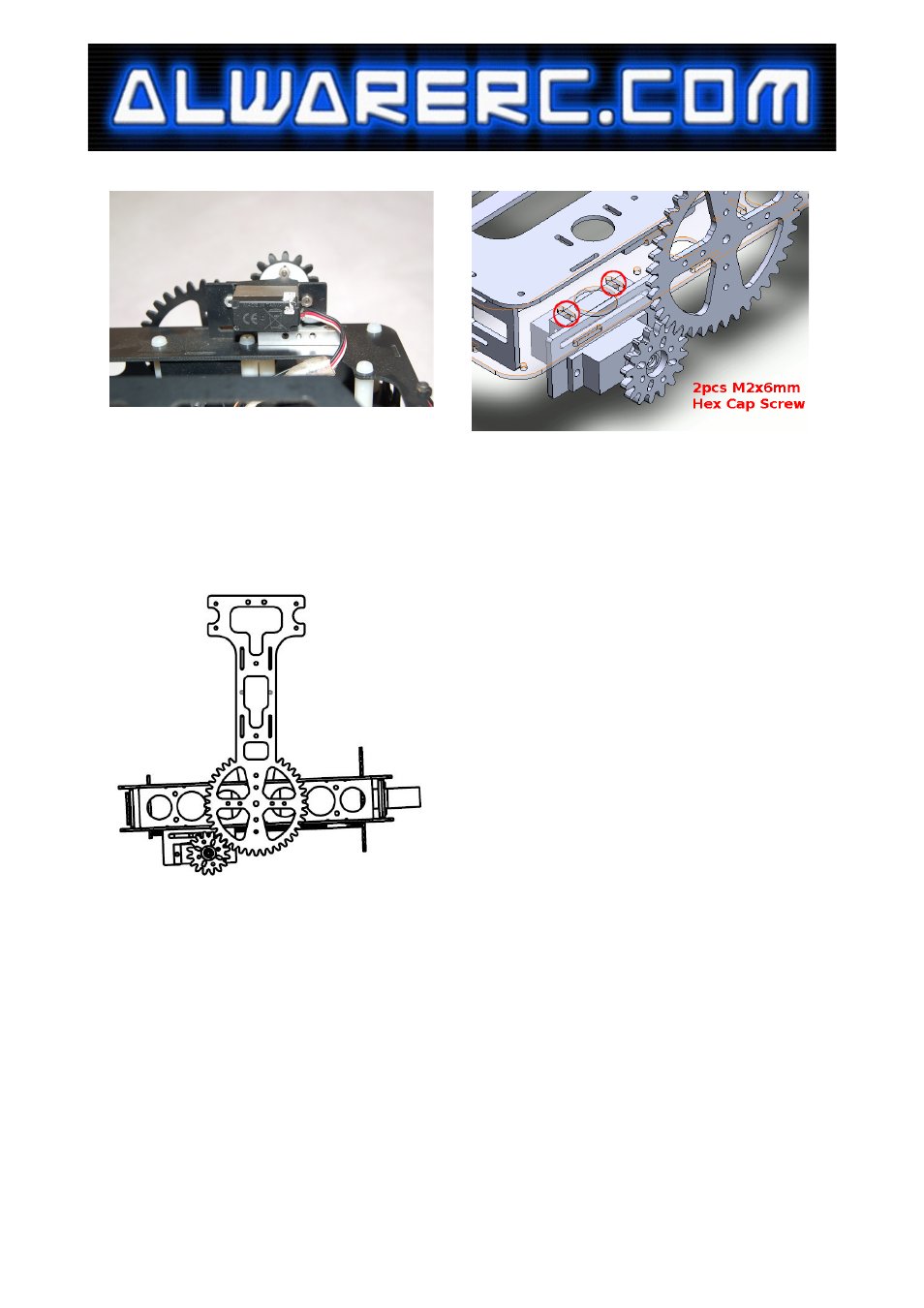

Assembly Step :
S19 s20
Secure the Roll Servo Mount on a Al Square
Rod using 2pcs M2x5mm Hex Cap Screws and
then install it onto the Lower U-FRame using
2pcs M2x6mm Hex Cap Screws. Lastly adjust
the Roll Servo Assembly to be align with the
Large Gear before tighten all the screws.
Close view of Roll axis servo installation.
S21
Back View of Servo Installation.
