Alwarerc Swing 2-Axis Camera Mount Combo - Manual (Page 7)

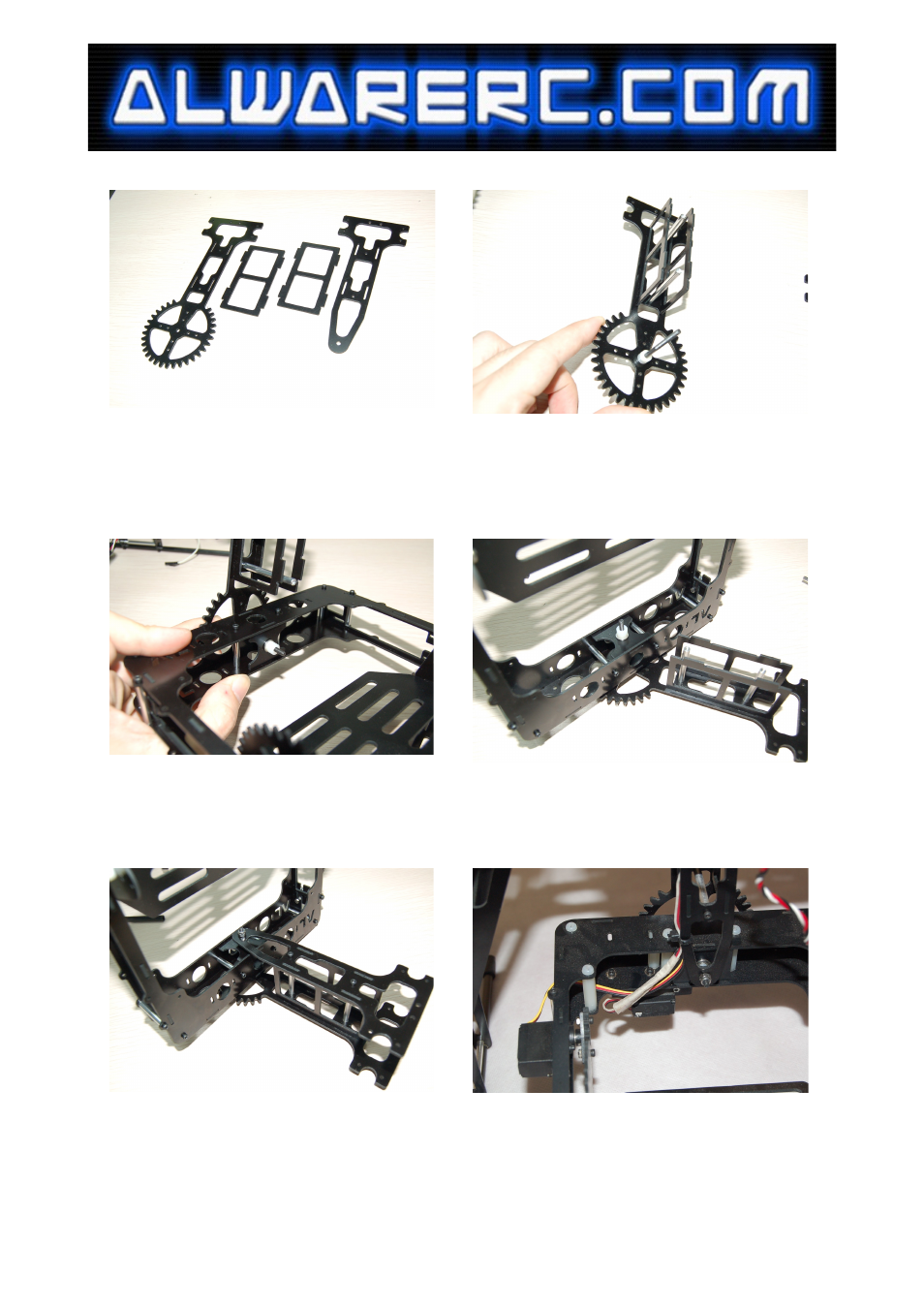

Assembly Step :
S13 S14
Prepare the Trunk Frames and Trunk Ribs as
shown above. Install a Trunk Frame, 2pcs Trunk Rib, 2pcs
35mm Alu Rods(secure with M2x8mm Screws), a
M3x45mm Screw together with one 2mm Nylon
Washer plus one 3.5mm Nylon Washer as shown
above.
S15 S16
Insert the M3x45mm Screw of the Trunk
Assembly from Step 14 to the U-board-stand
Assembly Bearing and followed by a 2mm
Nylon Washer plus one 3.5mm Nylon Washer. Make sure you have put the Nylon washer 2mm
and 3.5mm into the M3x45 screw.
S17 S18
Install another Trunk Frame to the assembly
and secure it using 2pcs M2x8mm Screws and
a M3 Self-Lock Nut. Install two Servo Gears on your servo horns
using M2x6mm Hex Cap Screws plus nuts. Then
install the Tilt Servo onto the specific Tilt Servo
Mount Frame(step 2) using M2 screw(for mini
servo) or M3 screws(for standard size servo).
Adjust the alignment of the servo gear to the
big gear before tighten the screws.
