18 Introduction

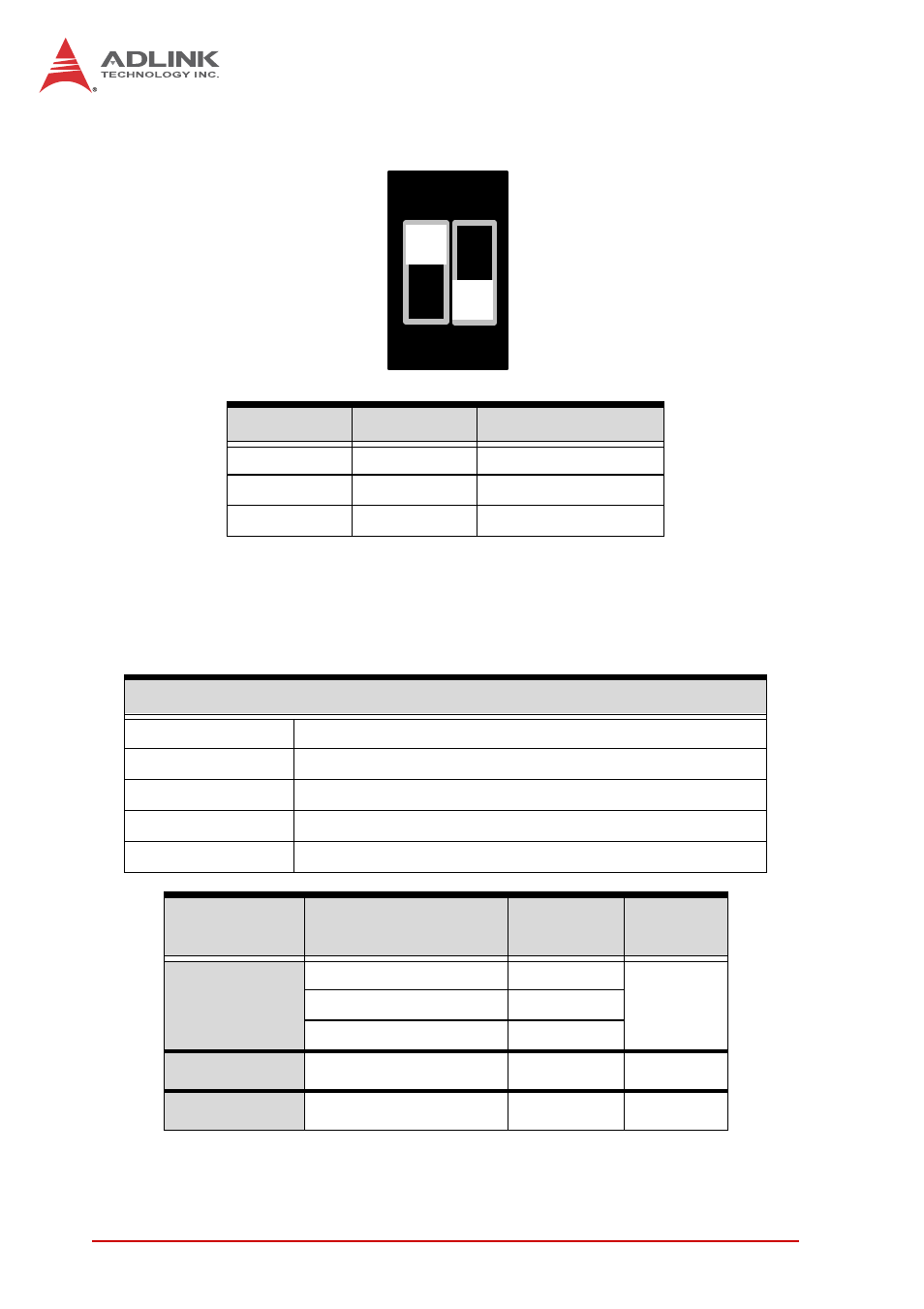

COM1 Mode Switch (SW13)
1.12 Power Consumption
Intel® Core™ i7-4770S, 3.1 GHz, 8M Cache, 65W TDP (4C)
DIP #1 DIP #2 COM1 Mode
On Off RS-232
On On RS-422
Off On RS-485
Test Configuration
Memory Transcend TS1GLK64V6H DDR3-1600 8GB x2
Graphics Integrated Intel® HD Graphics
SATA Channel 1 ALDINK ASD26-MLC32G-CT
Power Supply FSP FSP350-60PFG 350W
BIOS Rev. 0.91
Mode
Current (A) /
Voltage (V)
Power (W) Total (W)
S1
0.86A / 12V 10.32
15.044 0.43A / 5V 2.15
0.78A / 3.3V 2.574
S3 129mA / 5VSB 0.645 0.645
S5 81mA / 5VSB 0.405 0.405
ON
1 2 3
ON
1 2
