Introduction 9
NuPRO-E42

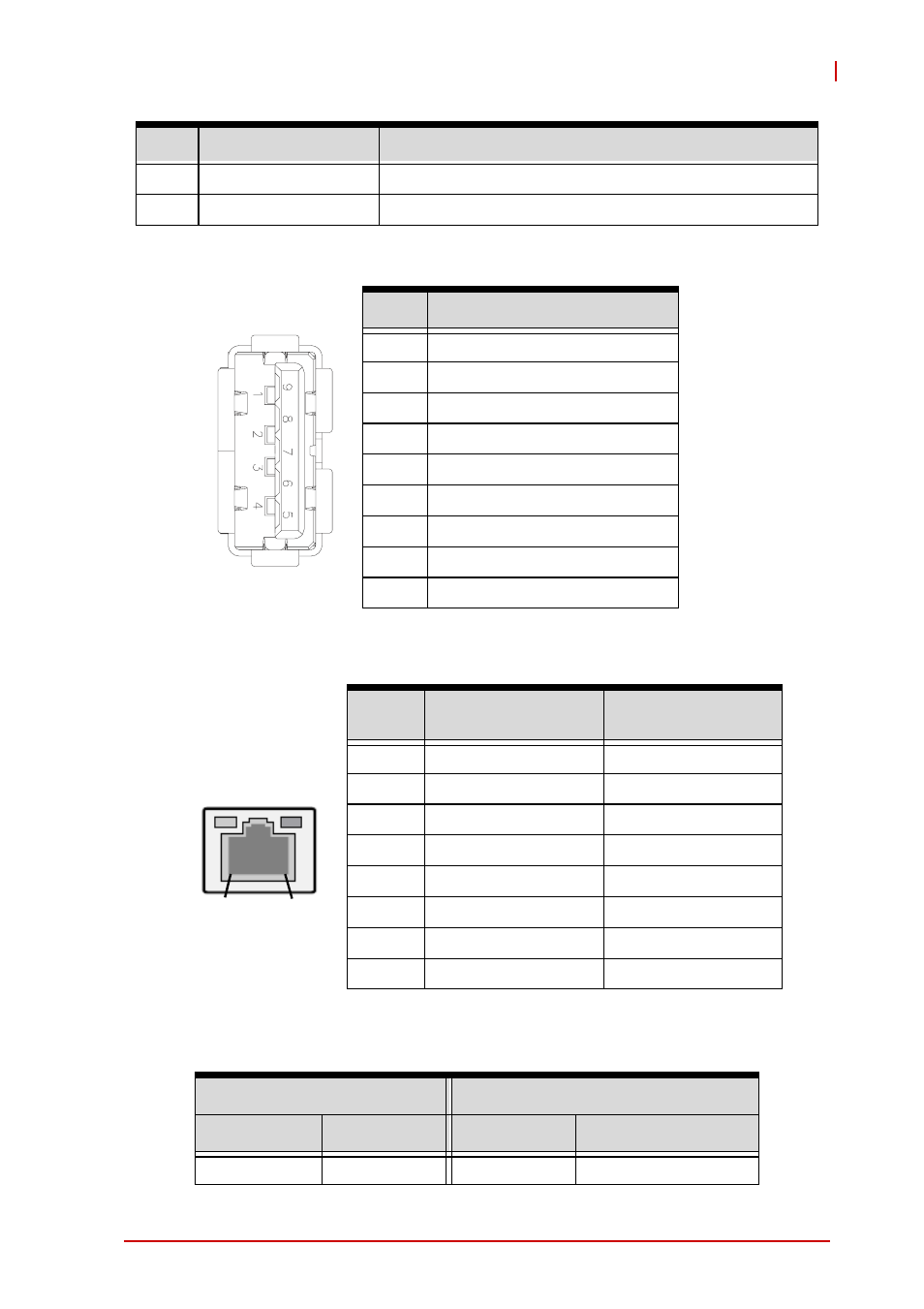

USB 3.0 Connectors
LAN (RJ-45) Ports
Refer to the table below for the LAN port LED definitions.
3 VGA port DB-15 connector for CRT or LCD monitor
4 USB 3.0 ports SuperSpeed USB 3.0 ports
Pin # Signal Name
1 USB3.0_P5VA
2 USB2_CMAN
3 USB2_CMAP
4 GND
5 USB3A_CMRXN
6 USB3A_CMRXP
7 GND
8 USB3A_CMTXN
9 USB3A_CMTXP
Pin #
10BASE-T/100BA
SE-TX
1000BASE-T
1 TX+ BI_DA+
2 TX- BI_DA-
3 RX+ BI_DB+
4 -- BI_DC+
5 -- BI_DC-
6 RX- BI_DB-
7 -- BI_DD+
8 -- BI_DD-
LED1 LED2
Status Description Status Description
Off No Link Off 10 Mb connection
Connector Description
LED2 LED1
1 8
