4 Introduction
1.4 Block Diagram

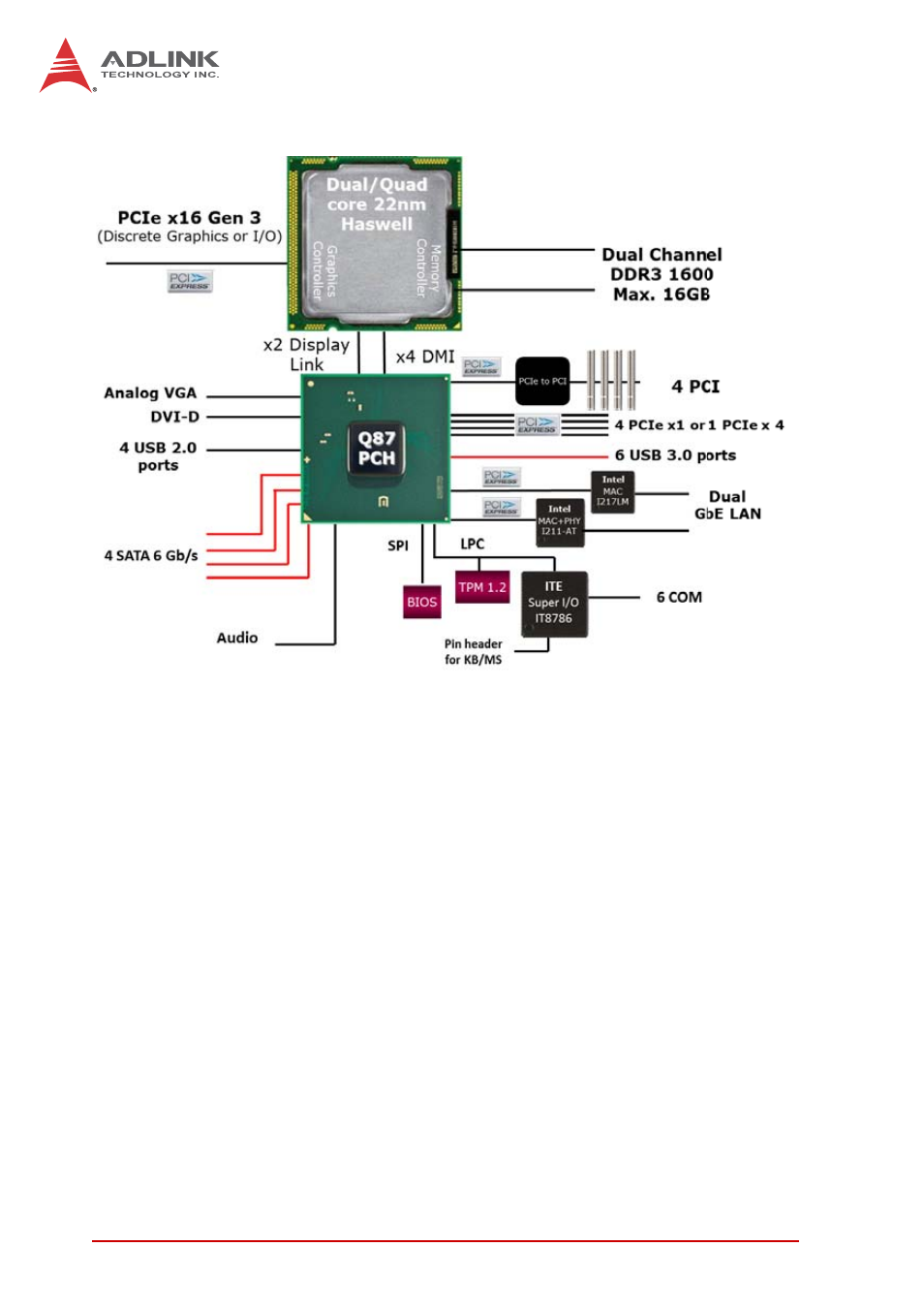

Figure 1-1: NuPRO-E42 Block Diagram
1.5 Functional Description
Processor Support
The NuPRO-E42 is PICMG 1.3 System Host Board supporting the
4th Generation Intel® Core™ processor family (Intel® Core™
i7/i5/i3) in LGA1150 socket. An integrated memory controller sup-
ports dual channel DDR3 and Intel® HD Graphics is integrated
onboard the CPU. The CPU provides a PCI Express x16 for exter-
nal graphics or expansion. Direct Media Interface (DMI) and Flexi-
ble Display Interface (FDI) provide connectivity to the Intel® Q87
Express Chipset.
Intel® Q87 Express Chipset
The Intel® BD82Q87 Platform Controller Hub (PCH) combines
with the processor to provide a compact yet powerful 2-chip solu-
