Introduction 13
NuPRO-E42

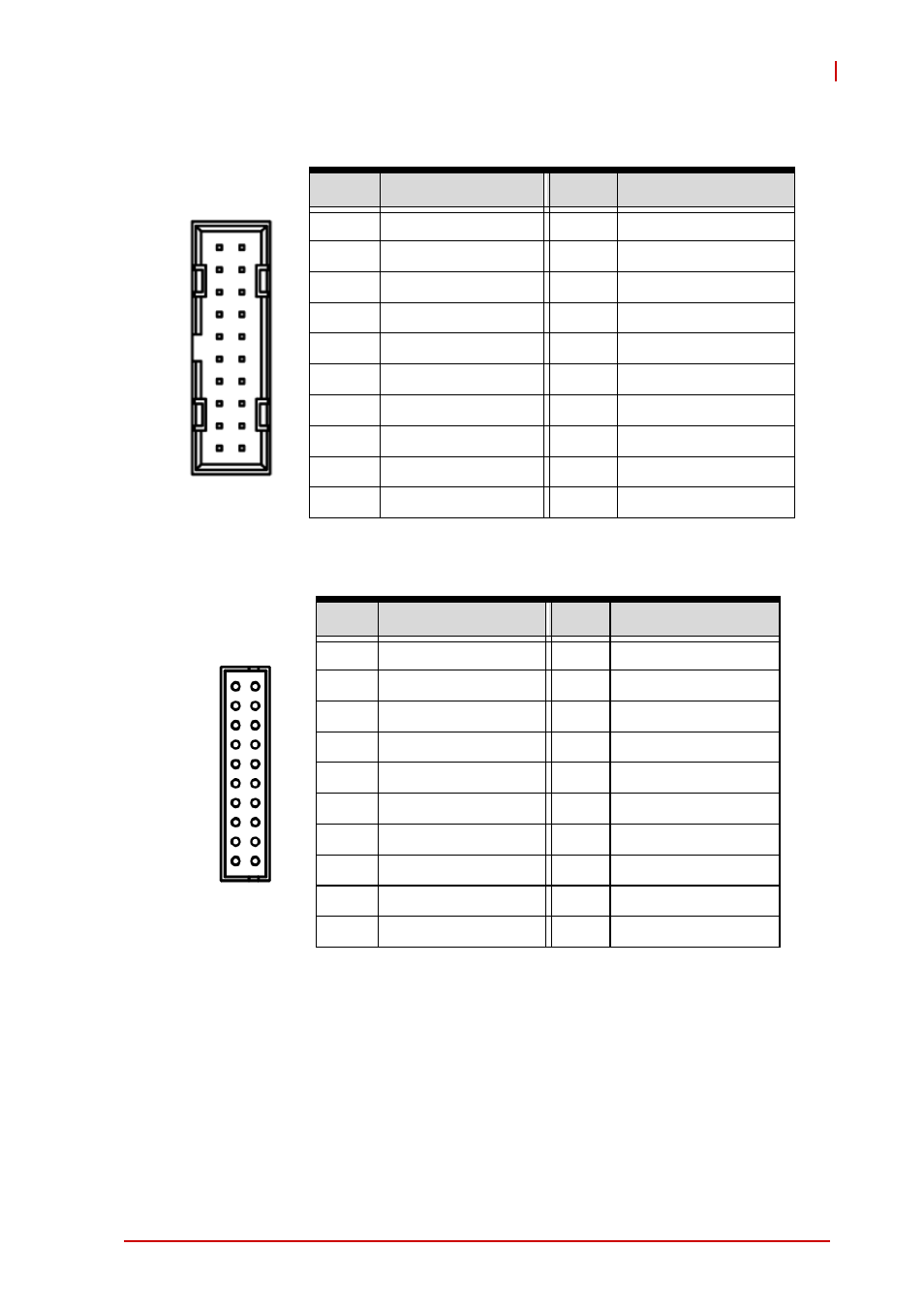

USB 3.0 Connectors (CN36/37)
DVI-D Onboard Connector(CN17)
Pin # Signal Pin # Signal
1 P5V_USB3B 20 NC
2 S_USB3_RN3_R 19 P5V_USB3B
3 S_USB3_RP3_R 18 S_USB3_RN4_R
4 GND 17 S_USB3_RP4_R
5 S_USB3_TN3_R 16 GND
6 S_USB3_TP3_R 15 S_USB3_TN4_R
7 GND 14 S_USB3_TP4_R
8 S_USB2_N2_R 13 GND
9 S_USB2_P2_R 12 S_USB2_N3_R
10 S_USB_OC1# 11 S_USB2_P3_R
Pin # Signal Pin # Signal
1 GND 2 GND
3 DVI-Clock+ 4 DVI-Data0-
5 DVI-Clock- 6 DVI-Data0+
7 GND 8 GND
9 DVI-I2C-Clock 10 DVI-Data1-
11 DVI-I2C-Data 12 DVI-Data1+
13 GND 14 GND
15 DVI-HPD 16 DVI-Data2-
17 +5V 18 DVI-Data2+
19 GND 20 GND
1 20
1 2
