Getting Started

System slots have obvious indicators (e.g. red card guide rail, triangle mark
enclosing the slot number on the backplane, etc.) System cards can only be
installed in a system slot. Do not insert a system card into any other slot, or
insert any peripheral card into system slot.

The handle on CompactPCI cards and PSUs ensures simple and safe
installation and removal. Please follow the procedures below to install a
CompactPCI module into a cPCIS-1100 Series chassis with CompactPCI
PSU(s):

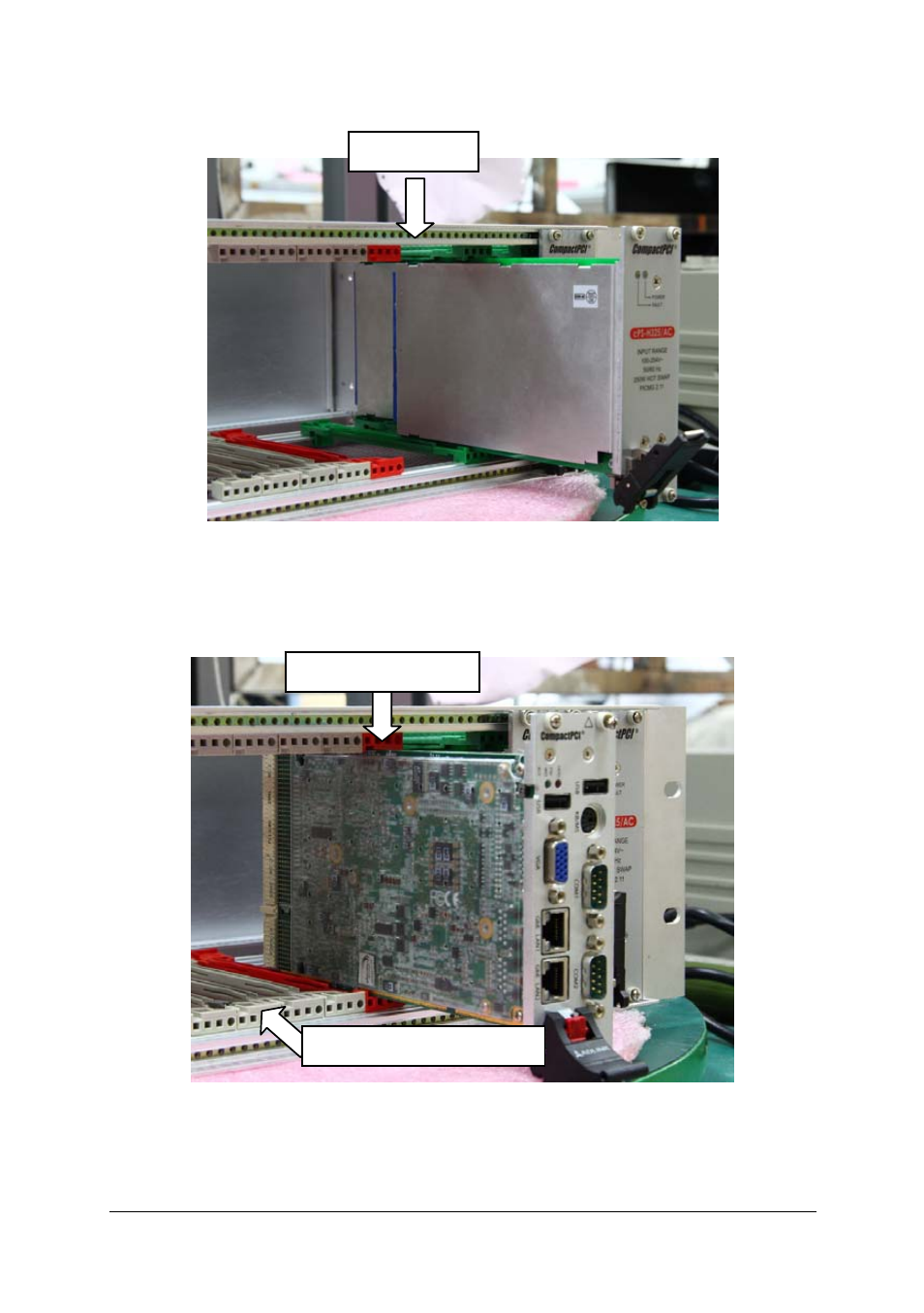

System Card Slot

Peripheral Card Slots

PSU Slot
