TriggerMaster Utility 43

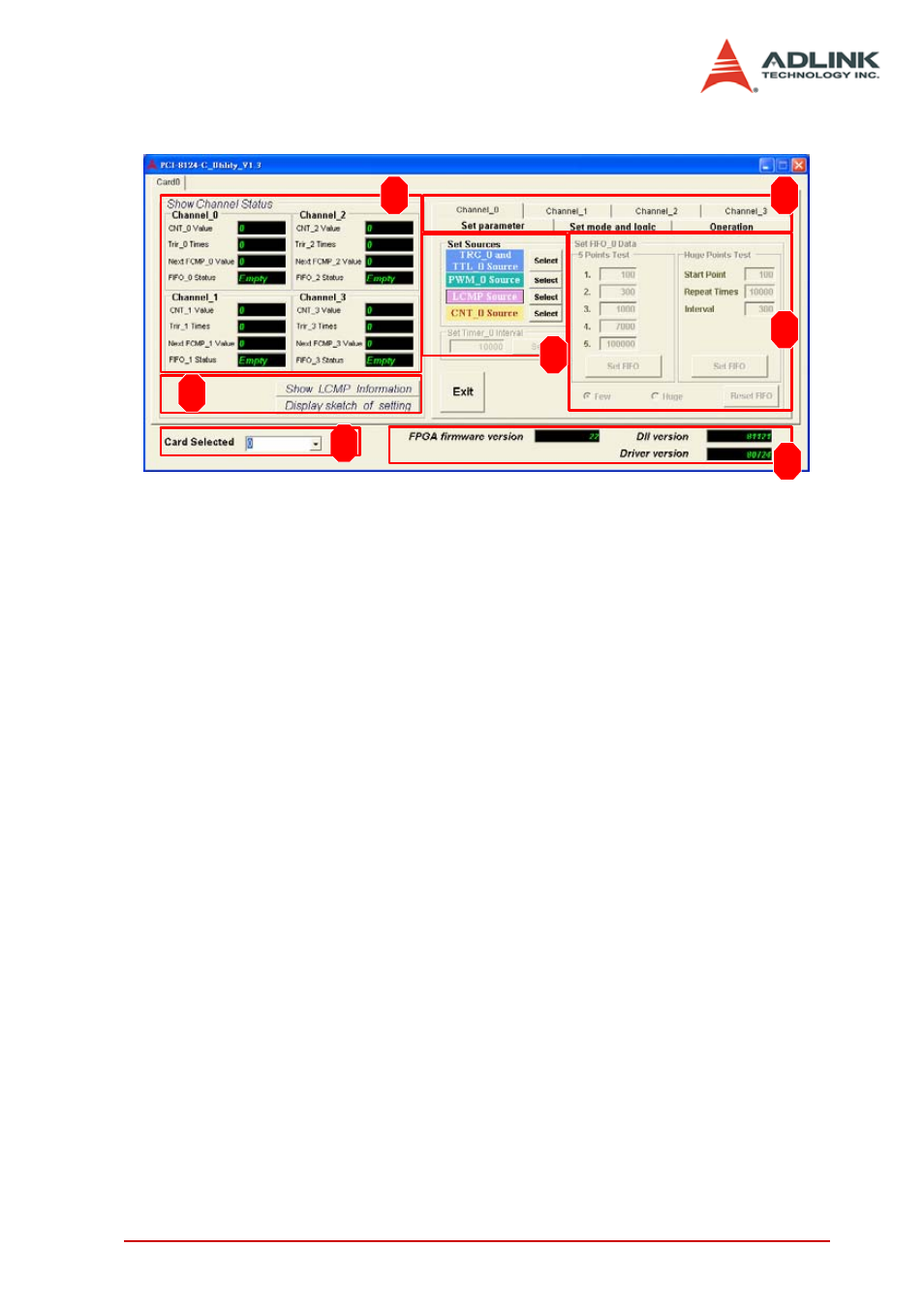

5.3.2 Main Form
1. Card Selected: Choose the card to operate. Note: the
card must be selected first.
2. Show Channel Status:
 CNT_# Value: Display the value of encoder counter. The
related function is _8124_get_encoder_value.
 Trir_# Times: Display the value of trigger counter. The
related function is _8124_get_pwm_trigger_count.
 Next FCMP_# Values: Display the next compared value
in FIFO comparator. The related function is
_8124_get_comparator_data
.
 FIFO_# Status: Display the status of FIFO comparator.
The related function is _8124_get_fifo_sts.
3. LCMP_Informaton and sketch_of_setting Forms:
 Show_LCMP_Information: Display the
Display_Status_LinearCMP form to observe the status
of each linear comparator.
 Display sketch_of_setting: Display the sketch_of_setting
form to see the overview of all settings.
4. Tab Switch: Switch the channel and parameter setting
tabs.
