46
• Operation Theory

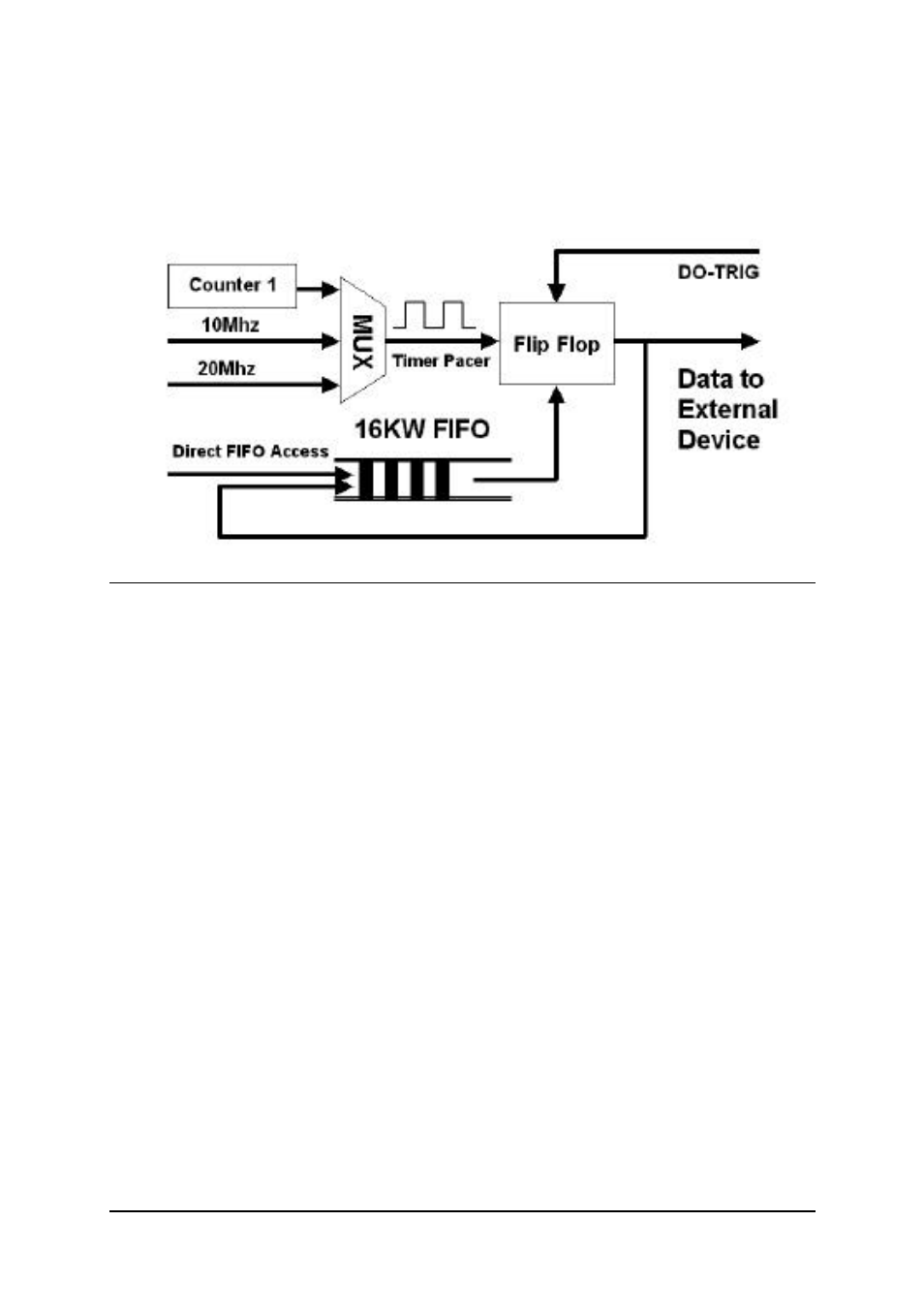

4. Set the output patterns into the output FIFO by direct FIFO access
5. Start the pattern generator function.
6. The pattern generator function will not stop until users stop the process
4.12 Auxiliary DIO
The cPCI/PCI-7300A also includes four auxiliary digital inputs and four digital
outputs, which can be applied to achieve the simple I/O functions. Users can
refer to the functions 5.8 ~5.11 for the detailed information.
