Page 10
Switch Mode Power Supply DRP024V060W1BA
10/13
Rev: 00,
1/10/2011

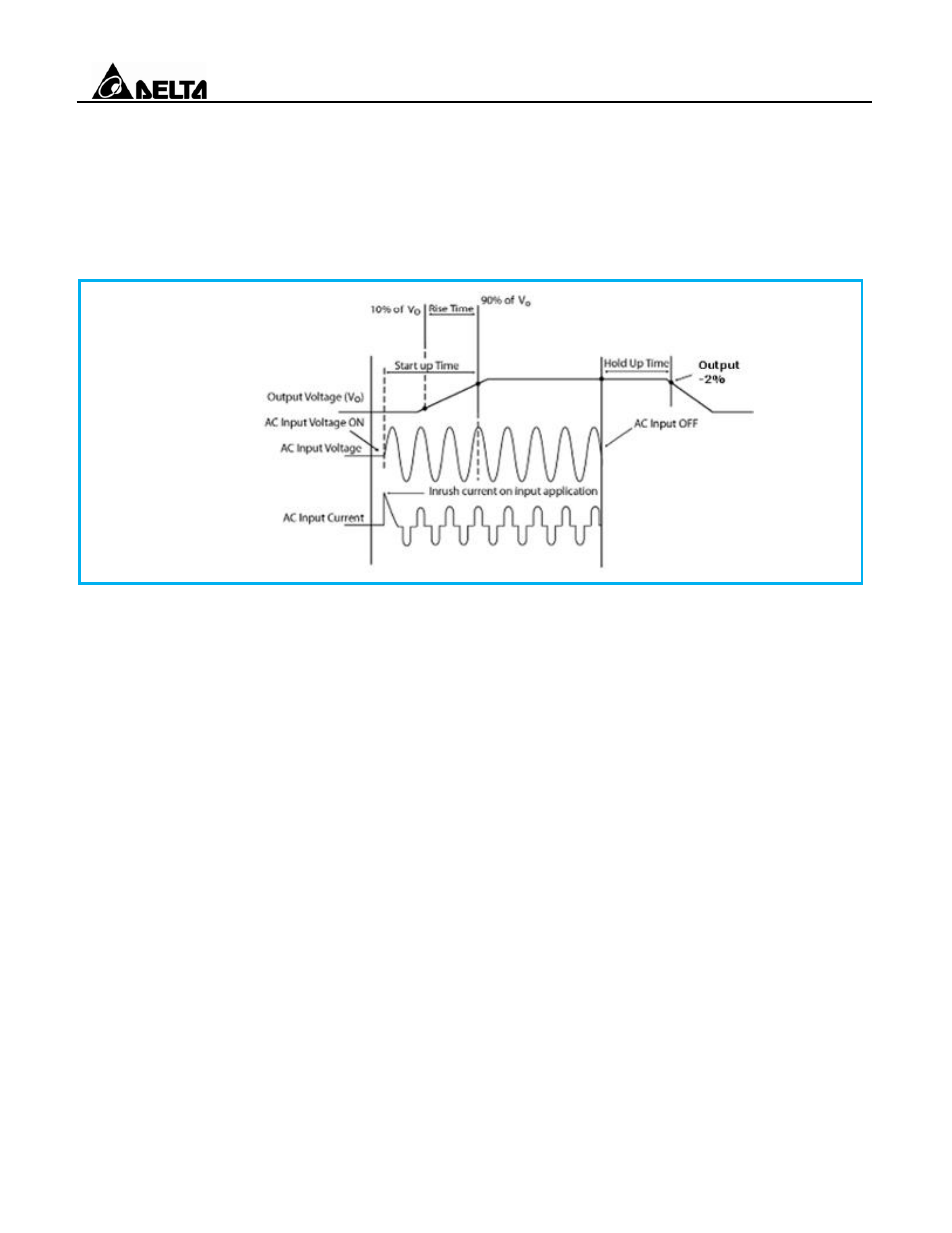

Hold-up Time,
Hold time is the time when the AC input collapses and o/p voltage retains regulation for a certain
period of time is called as hold up time. See in the picture below a typical hold up time
characteristic of a power supply. The hold time is measured until the output voltage remains in
regulation hence it measured until the output voltage reaches minimum regulation -2% of its set
value.
Output Voltage Adjust
The 24VDC connection is made using the "+" and "–" screw connections. At the time of delivery,
the output voltage is 24VDC. The output voltage can be set from 24 to 28VDC on the
potentiometer seen as Adjust on the front panel of each power supply.
