ST4532N
Flat T
op
Fr
on
t-Br
ea
thing S
elf-
C
on
tained F
la
t
Top F
reez
er Bases
Printed in the U.S.A.
DSST4532N
03/13
Delfield reserves the right to make changes to the design or specifications without prior notice.
INSTALLATION NOTE:
Refrigeration system is designed so that air will flow under the unit, through the compressor
area and out the front of the unit. Any restriction to this air flow path will void the warranties.
PLEASE NOTE:
Air flow through the louver on the back of the unit is not necessary for operation, however, any
air which passes through the louver is beneficial.
Specifications
Model
# of
Shelves
Shelf
Area
Volume
H.P.
V/Hz/Ph
Amps
Nema
Plug
Ship Weight
ST4532N
1
3.88ft
2
8.80ft
3
1/5
115/60/1
9.5
5-15P
245lbs/111kg
STD4532N
NA
NA
8.80ft
3
1/3
115/60/1
9.5
5-15P
293lbs/133kg
TO EDGE OF DRAWER
NOSE OF UNIT
19.60" [49.77]
31.50" [80.01]
32.13" [81.61]
33.59" [85.31]
36.00" [91.40]
4.00" [10.20]
29.55" [75.1]
2.50" [6.30]
4.00" OR 6.00" DEEP PANS ON TOP
4.00" DEEP PANS ONLY ON BOTTOM

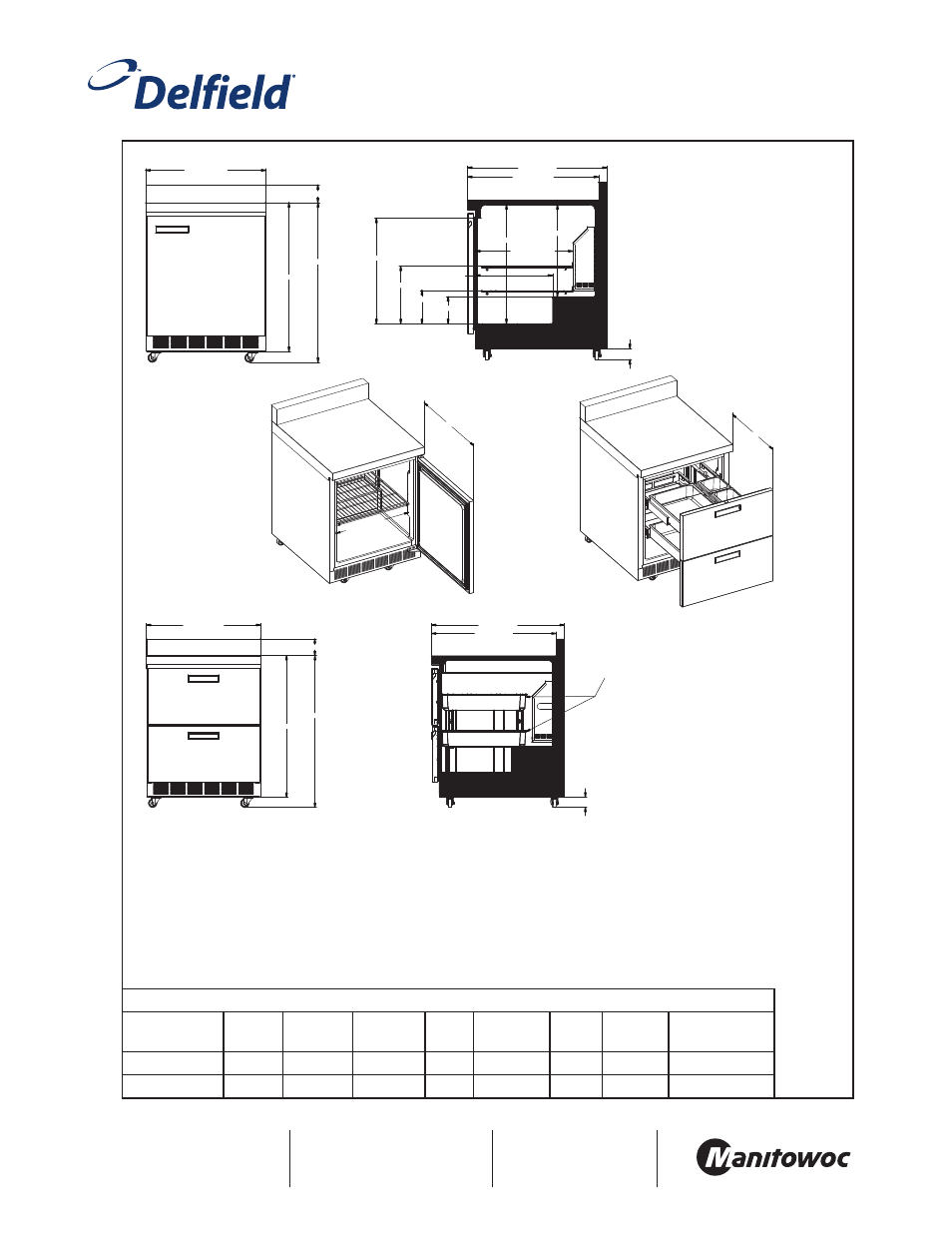

ST4532N ISO VIEW
ST4532N Elevation View
STD4532N ISO View
STD4532N Elevation View
STD4532N Right Side View
30.67" [77.90]
TO EDGE OF DOOR
NOSE OF UNIT
32.13" [81.61]
33.59" [85.31]
31.5" [80.00]
36.00" [91.40]
4.00" [10.20]
29.55 [75.10]
2.50" [6.30]
INSIDE DIMENSION
28.75" [73.03]
23.79" [60.43]
17.35" [44.08]
7.53" [19.10]
12.98" [33.00]
6.11" [15.52]
SHELF
ALT. SHELF
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
30.67" [77.90]
TO EDGE OF DOOR
NOSE OF UNIT
32.13" [81.61]
33.59" [85.31]
31.5" [80.00]
36.00" [91.40]
4.00" [10.20]
29.55 [75.10]
2.50" [6.30]
INSIDE DIMENSION
28.75" [73.03]
23.79" [60.43]
17.35" [44.08]
7.53" [19.10]
12.98" [33.00]
6.11" [15.52]
SHELF
ALT. SHELF
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
30.67" [77.90]
TO EDGE OF DOOR
NOSE OF UNIT
32.13" [81.61]
33.59" [85.31]
31.5" [80.00]
36.00" [91.40]
4.00" [10.20]
29.55 [75.10]
2.50" [6.30]
INSIDE DIMENSION
28.75" [73.03]
23.79" [60.43]
17.35" [44.08]
7.53" [19.10]
12.98" [33.00]
6.11" [15.52]
SHELF
ALT. SHELF
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
TO EDGE OF DRAWER
NOSE OF UNIT
19.60" [49.77]
31.50" [80.01]
32.13" [81.61]
33.59" [85.31]
36.00" [91.40]
4.00" [10.20]
29.55" [75.1]
2.50" [6.30]
4.00" OR 6.00" DEEP PANS ON TOP
4.00" DEEP PANS ONLY ON BOTTOM
ST4532N Right Side View
