Getting Started
Fader Start
ENGLISH
Specifications
Cables Used for Connections
Select the cables according to the equipment being
connected.
Preparations
Connections
NOTE
• Always switch on your audio input sources such
as CD players first, then your mixer, and finally
any amplifiers.
• When turning off, always reverse this operation
by turning off amplifiers, then your mixer, and
then input units.

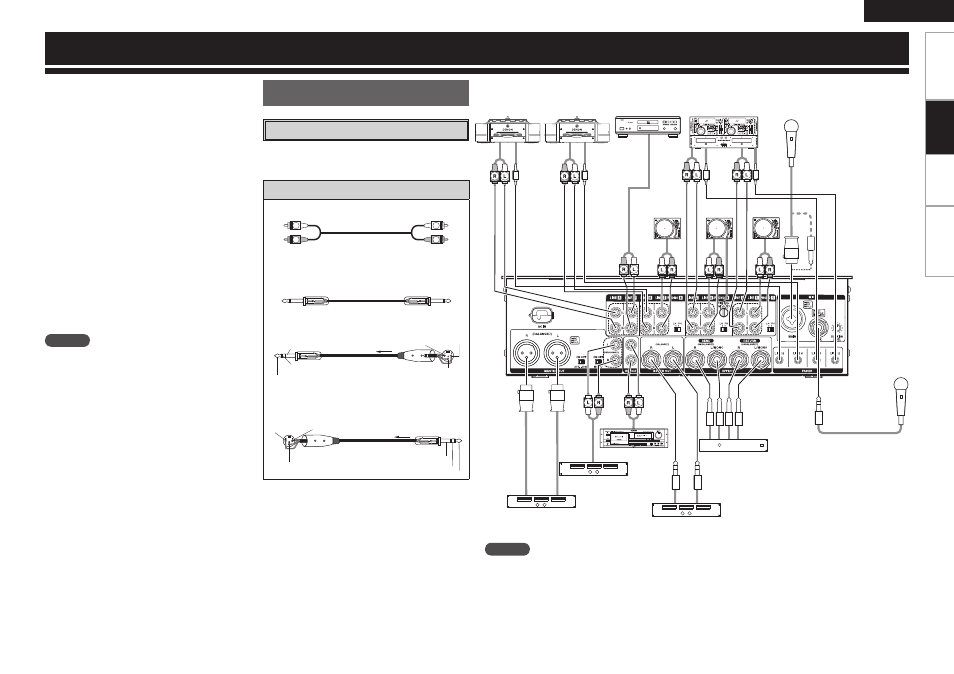

Refer to the Connection Diagram below.
1. Make certain AC power is off while making
connections.
2. Quality cables make a big difference in fidelity
and punch. Use high-quality, audio cables.
3. Do not use excessively long cables.
Be sure plugs and terminals are securely
fastened. Loose connections cause hum,
noise, or intermittence that could damage your
speakers.
4. Connect all stereo input sources. Then connect
any effects into the stereo Effect, if used.
Connect your Microphone(s) and monitor
headphones. Make sure all faders are at “zero”
and the unit is off. Take care to connect only
one cable at a time. pay attention to L and R
position of terminals, on both the DN-X1100 and
outboard gear.
5. Connect the stereo outputs to the power
amplifier(s) and/or tape deck(s) and/or MD
recorder(s) and/or CD recorder(s).
Audio cables
For RCA PINJACK
R
L
R
L
RCA pin plug
For SEND/RETURN
Unbalanced
Unbalanced
For MIC
Balanced
Balanced
1/4” TRS XLR3-11C Type
For BALANCED MASTER OUT
Balanced
Balanced
1/4” TS 1/4” TS
1=GND 2=Hot
3=Cold
Ring=Cold
Tip=Hot
2=Hot 1=GND
3=Cold
Sleeve=GND
Ring=Cold
Tip=Hot
1/4” TRS
XLR3-11C Type
Main unbalanced
power amplifier
Main balanced power
amplifier
Balanced Microphones
CD player
1/4” TRS balanced
Tape deck
CD player
NOTE
Keep volume at comfortable sound levels and avoid extended play at very high volume as it may cause
temporary or permanent hearing loss.
CD player
Booth balanced/
power amplifier
Effects processor
Turntable 2 Turntable 1
Mic
XLR or 1/4” TRS balanced
DN-X1100
Turntable 3
Sleeve=GND
Connections
