Connections

Fader Star

t

ENGLISH

Specifications

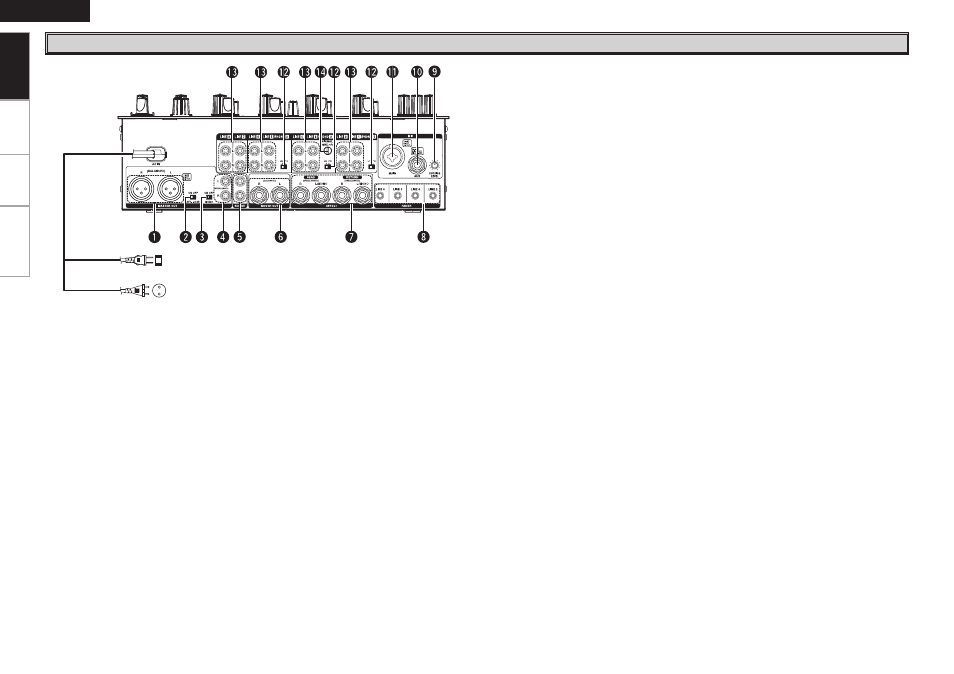

Rear Panel

q

MAIN OUT (BALANCED) connectors

• These XLR type connectors provide a balanced

line level output.

• Connect these connectors to the balanced

analog input connectors on an amplifier or
console.

• Pin layout: 1. GND, 2. Hot, 3. Cold
• Applicable connector: Cannon XLR-3-31 or

equivalent.

w

LEVEL ATT (Master out level attenuator)

• Use this to attenuate the MASTER output level

(–10 dB).

• Reference is 0 dB.

e

MASTER MONO OUT ON/OFF switch

When this switch is on, mixed L and R signal is

outputted from the MASTER OUT.

r

MAIN OUT (UNBALANCED) terminals

• This stereo pair of RCA terminals provides a

unbalanced line level output.

• Connect these terminals to the unbalanced

analog input terminals on an amplifier or
console.

t

REC OUT terminals

• This stereo pair of RCA terminals provides a

line level output. The signal is unaffected by the
Master Level control.

• It is intended for use with a tape recorder, but is

not restricted to that purpose.

y

BOOTH OUT (BALANCED) connectors

• These 1/4” TRS type connectors provide a

balanced line level output with independent front
panel Zone Level controls and are not affected
by the Master Level control.

• Connect these connectors to the balanced

analog input connectors on an amplifier or
console.

• Pin layout: Tip: Hot, Ring: Cold, Sleeve: GND
• Applicable connector: Cannon XLR-3-31 or

equivalent.

u

SEND/RETURN terminals

• These 1/4” TS mono terminals allow external

processing of the program signal.

• When connect monaural type effect processor,

use Lch input and output.

i

LINE 2, 4, 6, 8 FADER output terminals

Connect these terminals to the Fader input

terminals of the DN-S1200, DN-S3500, DN-
HS5500 and etc using the 3.5 mm stereo mini
cord.

o

DUCKING ATTENUATION LEVEL control

DUCKING attenuation level can be adjusted.

(– ∞ ~ –20 dB)

Q0

AUX MIC input terminal

Accepts a balanced microphone with 1/4”

terminals.

Q1

MAIN MIC input terminal

• Neutric combo terminal.
• Accepts either a balanced microphone with an

XLR connector or a balanced microphone with
1/4” TRS balanced terminals.

Q2

PHONO 1, 2, 3 /LINE 1, 3, 5 switches

• These switches change the Input from Phono to

Line level inputs.

• These switches set Line level inputs when

Turntable is not connected.

Q3

PHONO 1, 2, 3 /LINE 1, 2, 3, 4, 5, 6, 7, 8 input

terminals

These stereo pairs of unbalanced RCA terminals

are Inputs for any line level device.

Q4

Phono Ground screws

This screws provide a place to connect the

ground wire from a turntable.

This terminal is exclusively for a turntable

grounding and not a safety earth ground.

Getting Started

Power cord

European models:

To power outlet (AC 230 V, 50 Hz)

U.S.A. and Canada models:

To power outlet (AC 120 V, 60 Hz)
