18

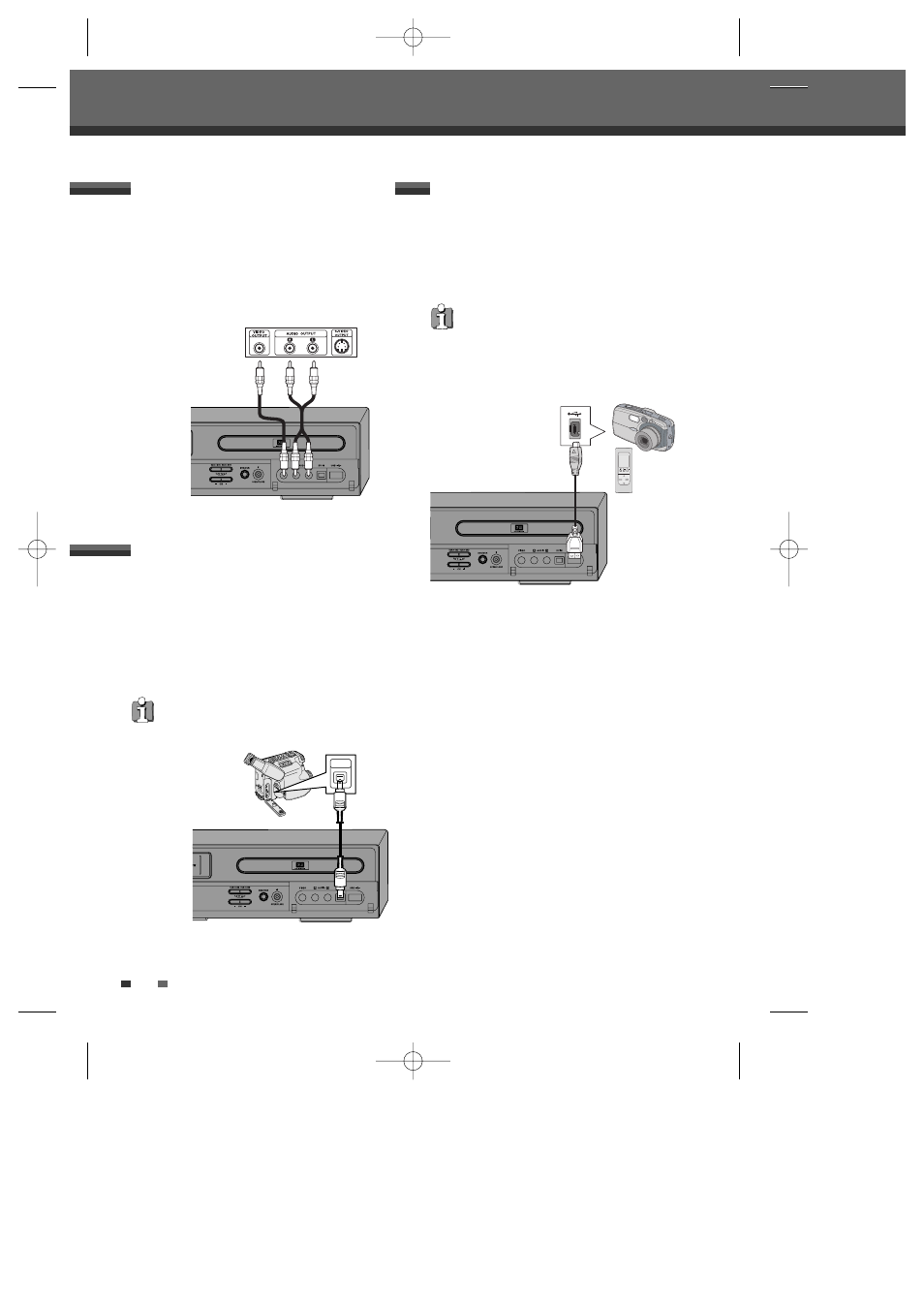

To receive audio/video signals from other equipment,
connect the AVF (Audio/Video Front) jacks on the
DVD Recorder + VCR to the audio/video out jacks on
your external component, using optional audio/video
cables.

Connecting Optional Equipment

Connections

Front of DVD Recorder + VCR

Jack Panel of Accessory Component (VCR,

Analog Camcorder, etc.)

Using the front panel DV IN jack, it is possible to
connect a DV digital camcorder, video deck or
DVD+R/RW recorder and digitally transfer DV tapes or
DVD+R/RW discs to DVD+R, DVD+RW.
Use a DV cable (not supplied) to connect the DV
In/Out jack of your DV camcorder/video deck to the
front panel DV IN jack of the DVD Recorder + VCR.

Connecting a Digital Camcorder

This jack is for connection to DV equipment only. It
is not compatible with digital satellite tuners or D-
VHS video decks.

DV IN

DV

IN/OUT

Front of DVD Recorder + VCR

DV Digital Camcorder

Connecting a Removal Storage

Using the front panel USB IN jack, it is possible to
connect a digital Camera or MP3 Player.
Use a USB cable (not supplied) to connect the USB
In/Out jack of your Digital Camera or mp3 player to the
front panel USB IN jack of the DVD Recorder + VCR.

Front of DVD Recorder + VCR

MP3 Player or Digital Camera

Only MP3 Player (or Digital Camera) which
doesn’t need to install Driver software are
available for this DVD Recorder + VCR.

It is impossible to copy the JPEG or mp3 file in
Digital camera or mp3 player to DVD or VCR.
