Cooper Lighting Thin Profile High-Abuse Exit Series VRX Series User Manual
Page 2
SURE-LITES 400 BUSSE ROAD ELK GROVE VILLAGE, IL 60007
049000118A

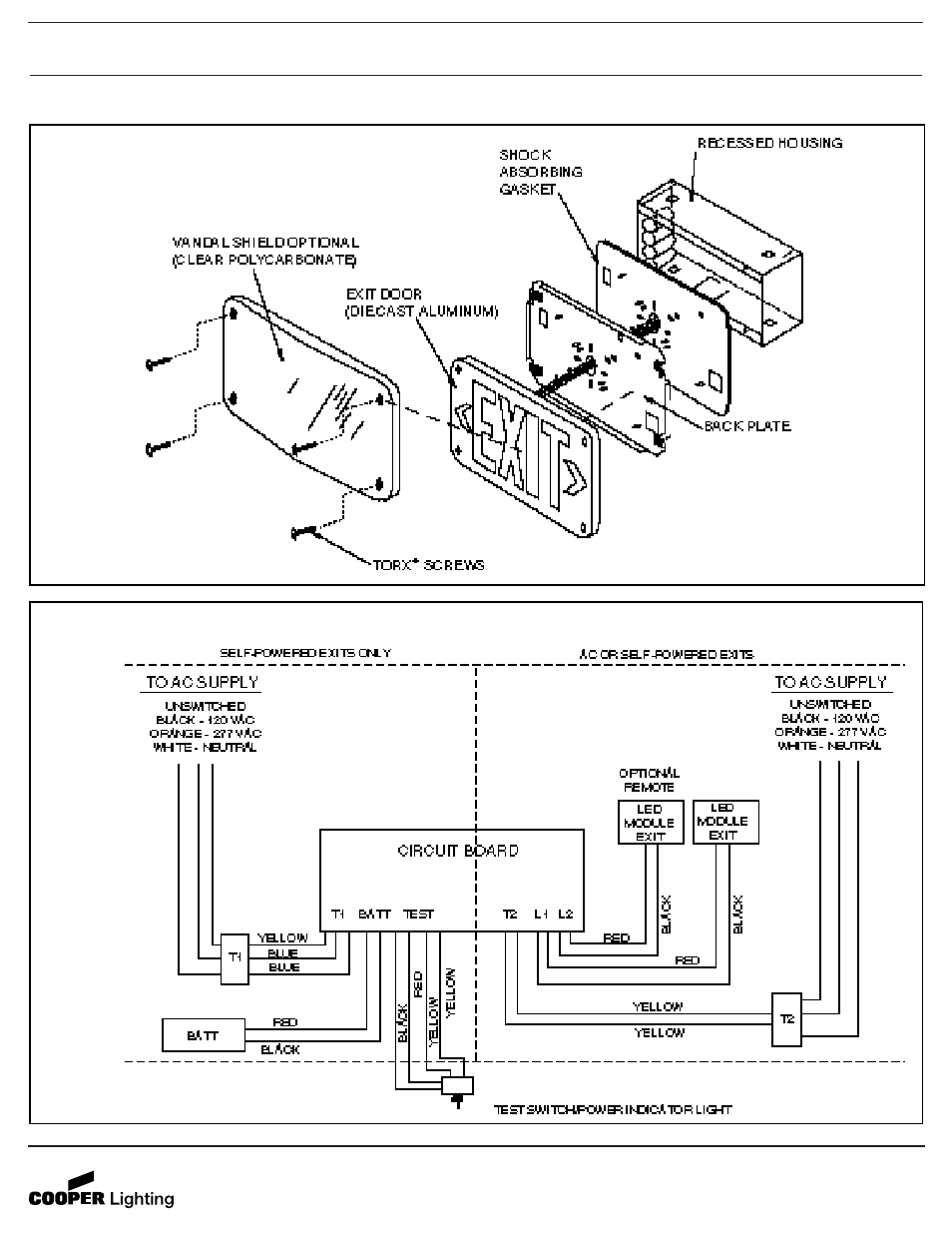

WIRING DIAGRAM
Step 12.
Energize the AC supply. Lamps (LED modules) will illuminate. If not, check L1 lead wire connection from printed circuit board to LED module.
Insure that the test light is on. Activate the test switch to confirm that the battery system powers the LED lamp modules. The battery must be
charged for a period of 24 hours prior to testing.
MAINTENANCE: NICAD Battery life may range 10 to 15 years. Periodically test the system operation with the test switch, and replace battery if the system
is not functional. Refer to local codes for test and maintenance requirements.
BACK (WALL)
MOUNT
