General Specifications PQX-Series:
INPUT POX-571 POX-572
Type: Active Balanced Active Balanced
Impedance: 20k ohm (10K ohm unbalanced) 20k ohm (10K ohm unbalanced)
Max. Level: +23dBu (+7dBu at max boost, 1/3 octave or greater) +23dBu (+7dBu at max boost, 1/3 octave or greater)
OUTPUT
Typ e: Balanced Balanced
Min. Load Impedance: 200 ohm (terminate with 600 ohm or greater) 200 ohm (terminate with 600 ohm or greater)
Max. Level: +22dBu +22dBu
Frequency Response: ±.2dB 20Hz-20kHz ±.2dB 20Hz-20kHz
THD (20Hz-20kHz): <.03% @ +4dBu, 20 Hz-20KHz <.03% @ +4dBu, 20 Hz-20KHz
Output Noise -93dBu (EO in, Peaking Filters in) -93dBu (EO in, Peaking Filters in)
(20Hz-20kHz): -90dBu (EQ, Peaking Filters and Shelving Filters in) -90dBu (EO, Peaking Filters and Shelving Filters in)
FILTERS State Variable with separate summing amplifiers State Variable with separate summing amplifiers
Parametric Type: 1 x 5 2 x 5
Number: 3 1/3 Octave to 1/20 Octave 3 1/3 Octave to 1/20 Octave
Bandwidth: +/- 15dB +/- 15dB
Amplitude 20Hz-20KHz 20Hz-20KHz
Range: Low, High Low, High
Shelving Type 40-400Hz 40-400Hz
Low Range 1.6KHz-16KHz 1.6KHz-16KHz
High Range
Shelving Range
+/-15dB +/-15dB
120VAC, 50-60Hz, 9W 120VAC, 50-60Hz, 15W
Power Requirements: 8 lbs 10 lbs
Shipping Weight: 19”L x 1.75”H x 6”D 19”L x3.5”H x 6”D
Dimensions:
I/O Connectors:
XLR, 1/4”, and Barrier Strip XLR, 1/4”, and Barrier Strip
CONTROLS
Master Gain +/- 15dB +/- 15dB
Master Defeat Switch Yes Yes
Per Band Amplitude +/- 15dB +/- 15dB
Per Band Defeat Switch Yes Yes

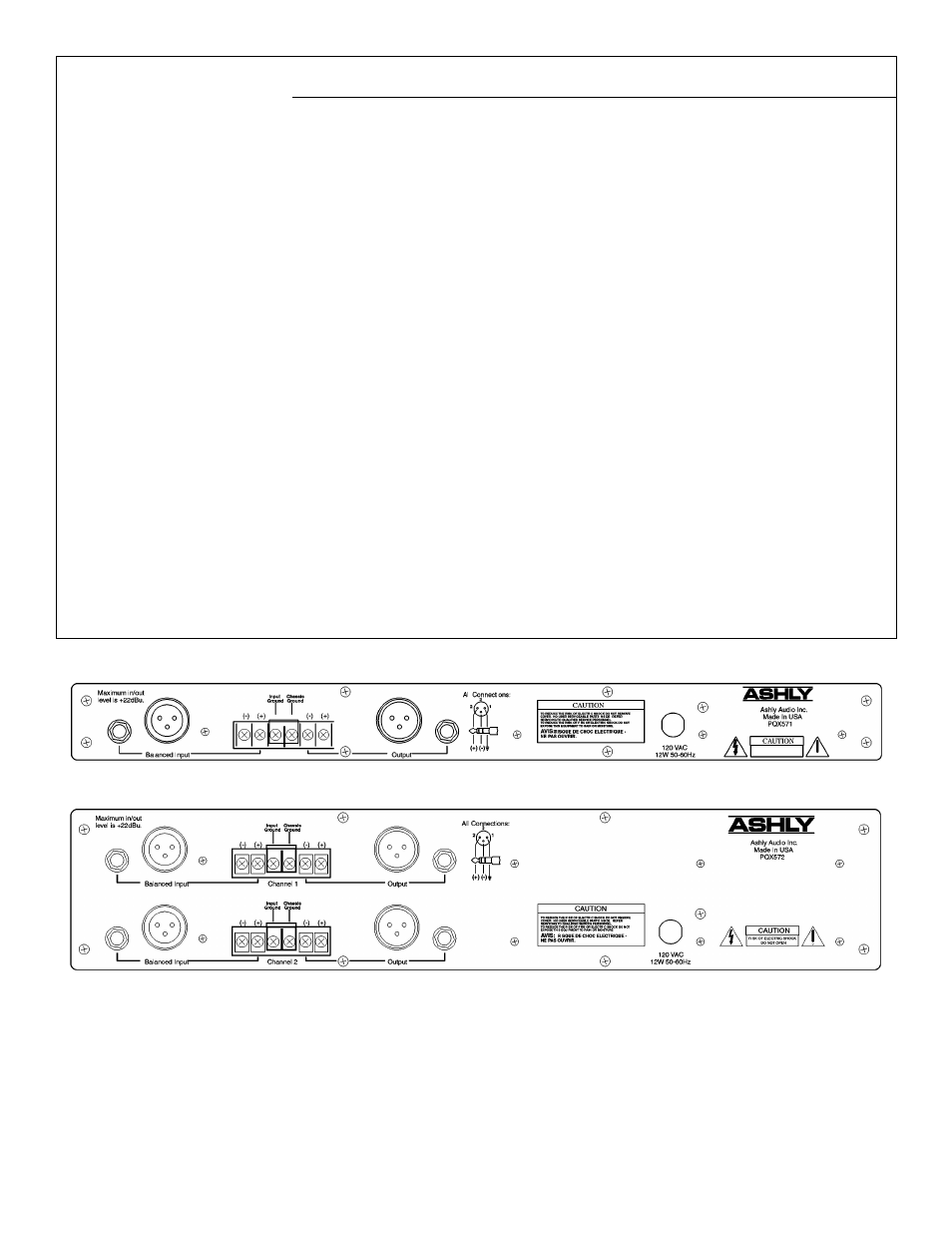

Rear Panel PQX-571
Rear Panel PQX-572
Applications:
Churches, Studios, Concerts, Dance/Night Clubs, PA Systems, Auditoriums, Lecture Halls, Sports Stadiums, Outdoor Festivals
Ashly manufactures a complete and comprehensive line of Graphic and Parametric Equalizers,
Electronic Crossovers, Power Amplifiers, Compressor-Limiters, Mixers, and
Amplifier Input Options. Please call, write or visit our web site for information on any of these Ashly Products.
