ASSEMBLY OF GRASS CATCHER (Hardware D)
There are two different types of grass catchers, those
with soft grass bags and those with hardtop grass
bags. Follow the instructions which pertain to your
unit.
NOTE: Make certain the grass bag is turned right side
out before assembling (warning label will be on the
outside).
Model 413R (Soft Grass Bags):

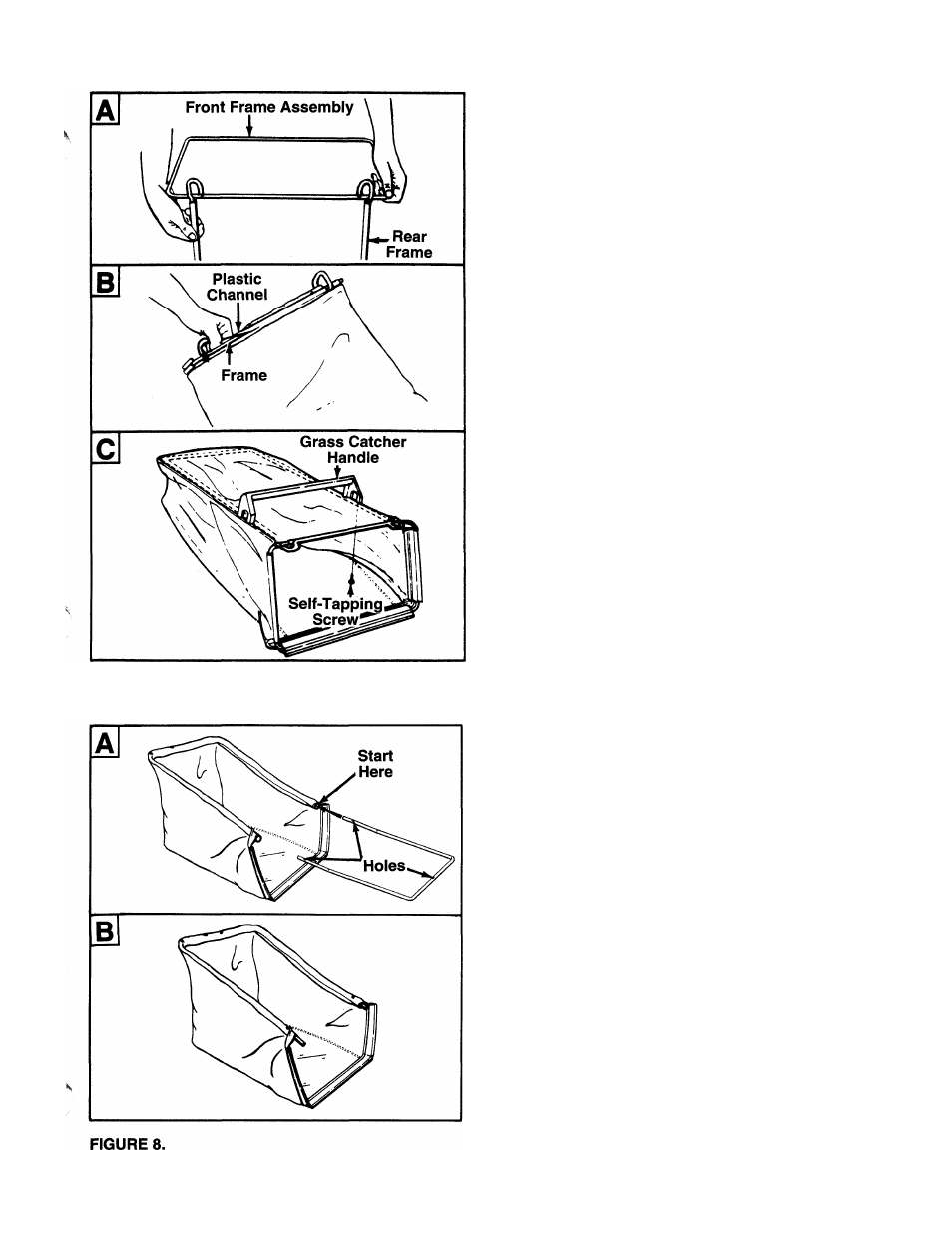

1. Join the rear frame and front frame assembly as
shown in figure 7A.
2. Place bag over frame (black plastic side is the bot­
tom of bag). Hooks on the front frame go toward
the top of the bag.
3. Secure front of bag to frame by working the plas-
------ tic channels on bag over frame. See figure 7B.
4. Place the grass catcher handle in position on top
of the grass bag and frame as shown in figure
7C. Secure with four self-tapping screws.
FIGURE 7.
Model 420R (Hardtop Grass Bags):
1. There are three holes in the rear frame. With the
holes on the upper side as shown in figure 8A,
insert one end of the rear frame into the cloth
channel on the edge of the grass catcher bag.
Feed all the material on one side of the frame,
— then work it around the frame. See figure 8B.
