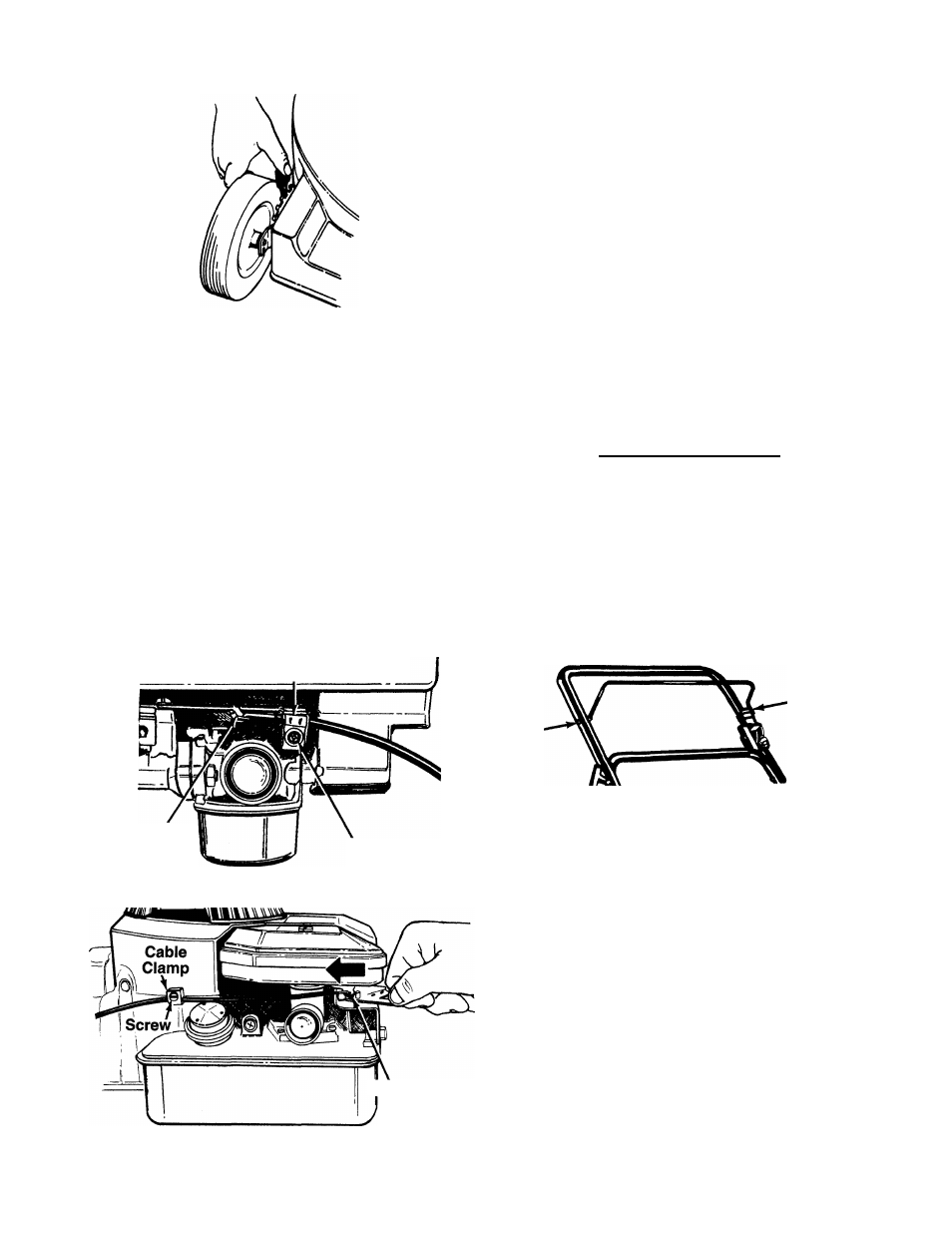

FIGURE 16.
THROTTLE CONTROL ADJUSTMENT
If the throttle control requires adjustment or if it has
been replaced, adjust the throttle control as follows.
1. Remove the screw shown in figure 17. Remove
the cable clamp from the cable.
NOTE: If you have a Tecumseh engine, simply loosen
the screw shown in figure 17A so the cable will move
freely beneath the clamp. It is not necessary to
remove the screw and clamp completely.
2. Push the throttle control lever on the handle all
the way forward as far as it will go, then back it off
one “click”. Make certain the throttle control
lever remains in this position.
Push the control lever on the engine as far toward
the rear of the engine as it will go. Tighten the
screw to secure the cable in this position.
Cable
Clamp
3.
Control
Lever
On Engine
FIGURE 17A.—Tecumseh Engines
Screw
Control Lever
On Engine
FIGURE 17B.—Briggs & Stratton Engines
A
CARBURETOR ADJUSTMENTS
WARNING: If any adjustments are made
to the engine while the engine is running
(e.g. carburetor), keep ciear of ali moving
parts. Be carefui of heated surfaces and
muffler.
Minor carburetor adjustments may be required to
compensate for differences in fuel, temperature, alti­
tude and load. To adjust carburetor, refer to the sepa­
rate engine manual packed with your mower.
NOTE: A dirty air cleaner will cause an engine to run
rough. Be certain air cleaner is clean and attached to
the carburetor before adjusting carburetor. Refer to
the separate engine manual.
A
LUBRICATION
WARNING: Always stop engine and dis­
connect spark plug wire before cleaning,
lubricating or doing any kind of work on
lawn mower.
Blade Control—Lubricate the pivot points on the
blade control handle and the brake cable at least
once a season with light oil. See figure 18. The blade
control must operate freely in both directions.
Pivot
Point
Brake
Cable
FIGURE 18.
Discharge Chute Deflector—The torsion spring and
pivot point should be lubricated periodically with light
oil to prevent any rust or binding. Deflector must work
freely.
Wheels—The wheels require no lubrication.
However, if the wheels are removed for any reason,
lubricate the surface of the axle bolt and the inner sur­
face of the wheel with light oil. A 4 oz. plastic bottle of
light oil lubricant is available. Order part number 737-
0170. Engine oil may also be used.
Engine—Follow engine manual for lubrication instruc­
tions.
Transmission—The transmission is pre-lubricated
and sealed at the factory. It does not require check­
ing. If disassembled for any reason, fill with 2 ounces
of Alvania grease, part number 737-0168.
11
