Models 1002 and 1208
(32" or 38" Decks)

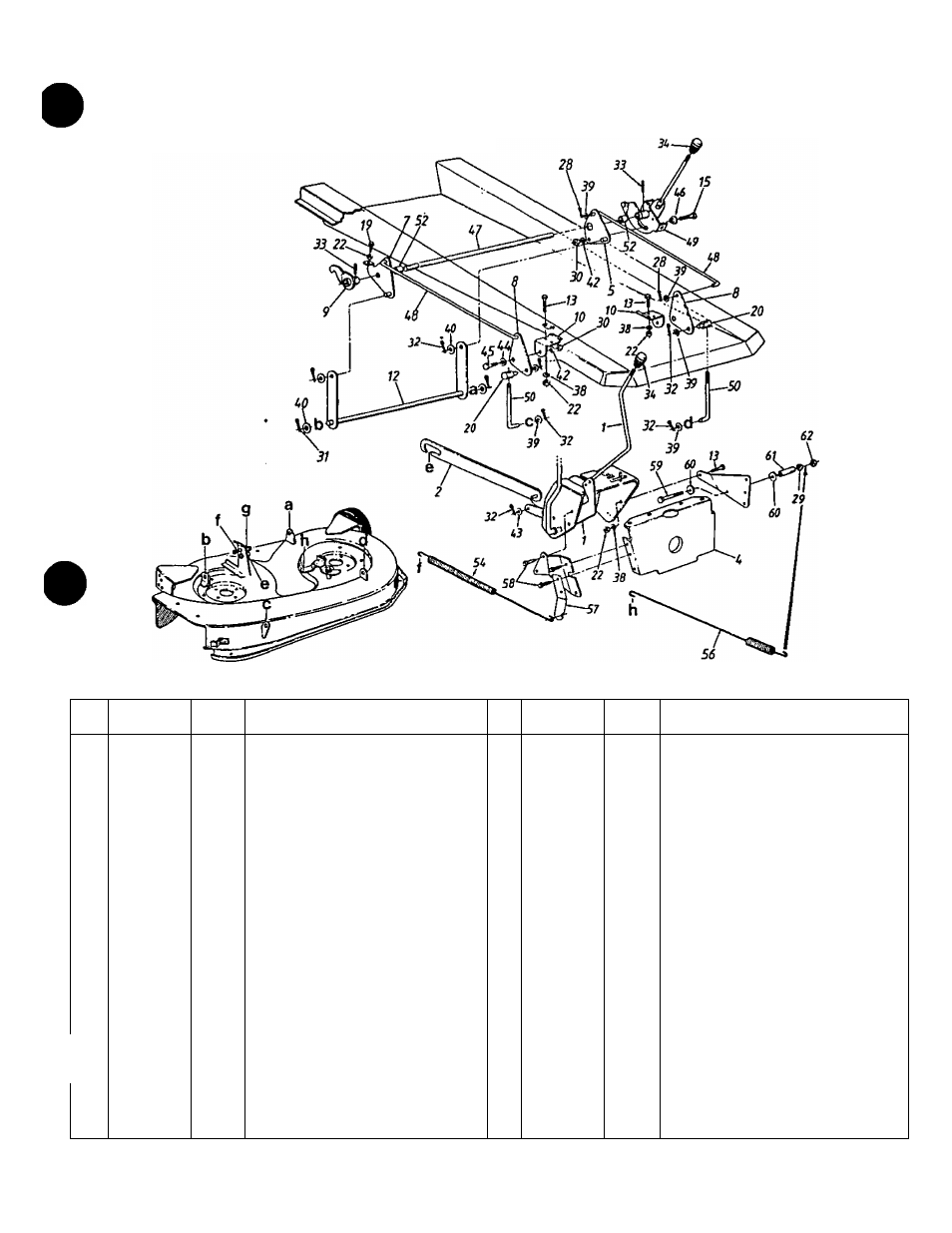

PARTS LIST FOR MODEL 1002 AND 1208 LAWN TRACTORS WITH 32 OR 38" DECKS
REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF.
NO,
PART
NO.
CODE
DESCRIPTION
1
703-1914
N
Deck Engagement Brkt.
39 736-0140
FI-Wash. .385 I.D. x .62
w/Handle
40 736-0156
FI-Wash. .635 I.D. x 1.12
2
15644A
Deck Drive Control Brkt, Ass’y.
42 736-0169
L-Wash. 3/8" I.D.*
4 15613A
N
Pivot Bar Brkt.
43 736-0300
FI-Wash. .385 I.D. x .87 O.D.
5
17108
Deck Lift Brkt. Ass’y.
44 736-0232
Spring Washer .530 I.D.
7 17111
Deck Lift Brkt. Ass'y.
45 738-0183
Shid. Bolt .500" Dia. x .215"
8
17112
Deck Lift Bracket
46 738-0347
Shid. Spacer .625" I.D.
9 17114A
Deck Lift Float Brkt Ass’y.
47 738-0550
Rear Hgt. Adj. Shaft
10
17115
Deck Lift Pivot Brkt,
48 747-0557
Connecting Rod
12
17123
Stabilizer Shaft Ass’y.
49 703-1915
Deck Lift Handle Ass’y.
13 710-0118
Hex Bolt 5/16-18
X
.75" Lg.
50 747-0690
J-Bolt 5.4" Lg.
15 710-0253
Hex Bolt 3/8-16
X
1" Lg.
52 750-0707
Spacer ,885 I.D.
19 710-0817
Hex Wash.-Tap Scr. 5/16-18
54 732-0531
Ext. Spring 22.05" Lg.
X
1.25" Lg.
56 732-0575
Ext. Spring 15-5/8" Lg.
20 711-0198
Ferrule
(32" Deck)
22 712-0267
Hex Nut 5/16-18 Thd.*
732-0587
Ext. Spring
173
/
4
" Lg. (38" Deck)
28 714-0507
Cotter Pin 3/32" Dia.
57 17310
Spring Anchor
29 712-0287
Hex Nut V4-20 Thd.
58 710-0776
Hex Wash. Hd. AB-Tap Scr.
^30 712-0798
Hex Nut 3/8-16 Thd.
1/4
x .62" Lg.
P1
714-0101
Internal Cot. Pin ’/
2
" Dia.
59 710-0102
Hex Bolt У
4
-
2
О
X
2.5" Lg.
K
2
714-0145
Int. Cot. Pins 3/8" Dia.
60 736-0176
Fl-Wash. .25" I.D. x .93" O.D.
33
715-0114
Spring Pin Spir. 1/4" Dia.
61 750-0583
Spacer .255" I.D.
34 720-0232
Knob
62 712-0291
Hex L-Nut У
4
-
2
О Thd.
38 736-0119
L-Wash 5/16" I.D.
