2. Lubricate all lubrication points. Wipe the entire
^machine with an oiled rag to protect the surfaces.
3. Refer to the engine manual for correct engine
storage instructions. The engine must be com
pletely drained of fuel to prevent gum deposits from
forming on essential carburetor parts, fuel lines
and fuel tanks.
4. Refer to battery storage instructions on page 13.
5. Store unit in a clean, dry area.
NOTE:
When storing any type of power equipment in
an unventilated or metai storage shed, care should be
taken to rustproof the equipment. Using a light oil or
silicone, coat the equipment, especially any chains,
springs, bearings and cables.
Model 800
(30" Deck)

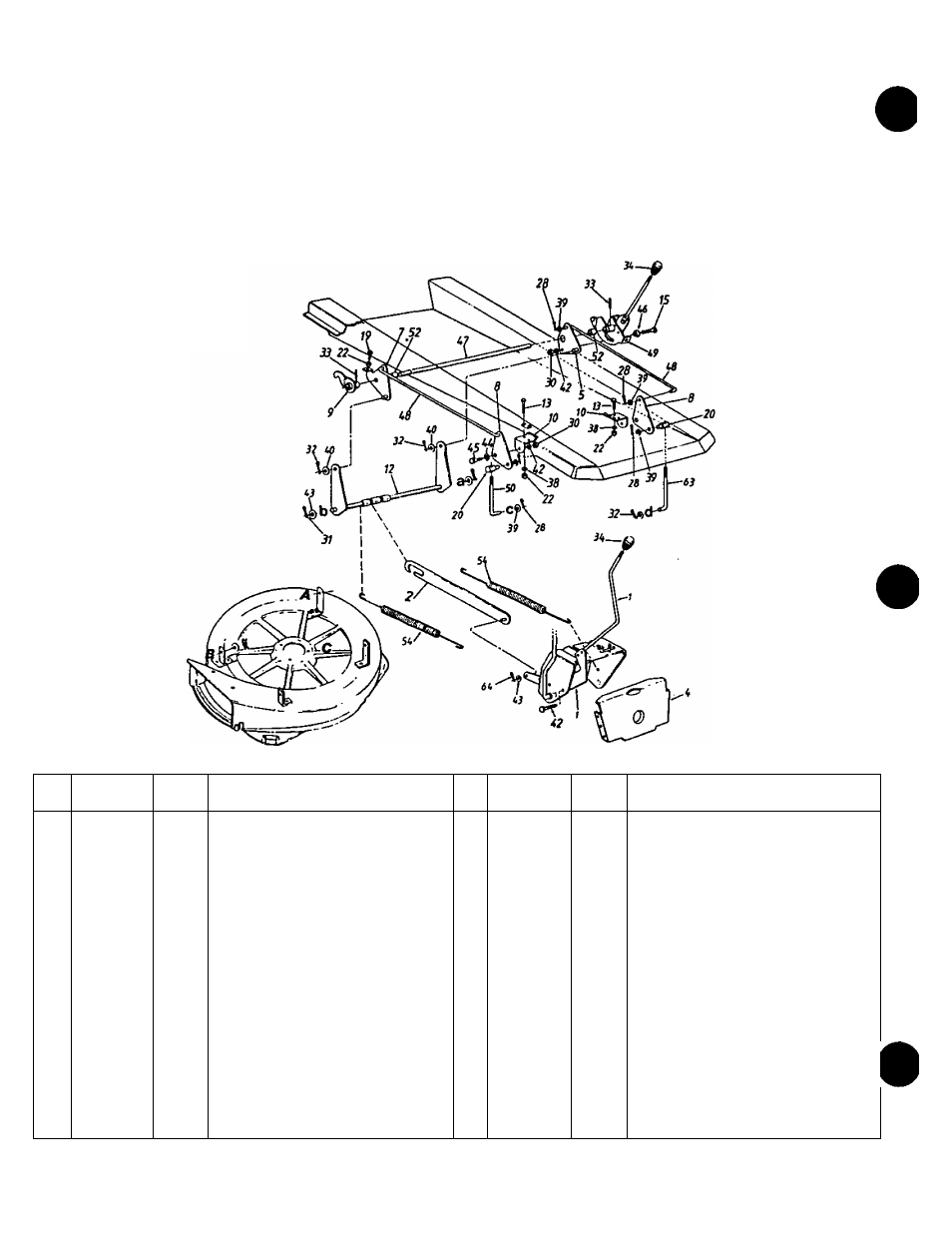

PARTS LIST FOR MODEL 800 LAWN TRACTOR WITH 30" DECK
REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1
703-1914
N
Deck Engagement Brkt.
32 714-0145
Int. Cot. Pins 3/8" Dia.
w/Handle
33 715-0114
Spring Pin Spir. 1/4" Dia.
2 703-1923
N
Deck Drive Control Brkt. Ass*y.
34 720-0232
Knob
4 15613A
Pivot Bar Brkt.
38 736-0119
L-Wash 5/16" I.D.
5 17108
Deck Lift Brkt. Ass'y.
39 736-0140
FI-Wash. .385 I.D. x .62
7 17111
Deck Lift Brkt. Ass’y.
40 736-0156
Fl-Wash. .635 I.D. x 1.12
B 17112
Deck Lift Bracket
42 736-0169
L-Wash. 3/8" I.D.*
9 17114A
Deck Lift Float Brkt Ass’y.
43 736-0300
Fl-Wash. .385 I.D. x .87 O.D.
10 17115
Deck Lift Pivot Brkt.
44 736-0232
Spring Washer .530 I.D.
12 603-0012
N
Deck Link Ass’y.
45 738-0183
Shld. Bolt .500" Dia. x .215"
13 710-0118
Hex Bolt 5/16-18
X
.75" Lg.
-46 738-0347
Shid. Spacer .625" I.D.
15 710-0253
Hex Bolt 3/8-16x1" Lg.
47 738-0550
Rear Hgt. Ad|. Shaft
19 710-0017
Hex Wash.-Tap Scr. 5/16-18
48 747-0557
Connecting Rod
X
1.25" Lg.
49 703-1915
Deck Lift Handle Ass’y.
20 711-0198
Ferrule
50 747-0677
J-Bo!t 3/8-24
X
5.25" Lg.
22 712-0267
Hex Nut 5/16-18 Thd.‘
52 750-0707
Spacer .885 I.D.
'
28 714-0507
Cotter Pin 3/32" Dia.
54 732-0530
Ext. Spring 13.25" Lg.
30 712-0798
Hex Nut 3/8-16 Thd.
63 747-0690
J-Bolt 3/8-24
X
5.4" Lg.
31
714-0101
Internal Cot. Pin V
2
" Dia.
64 714-0115
Cotter Pin 1/8" Dia.
