Remove the hairpin ciips from the handle brack­
ets and the carriage screws and wing nuts from

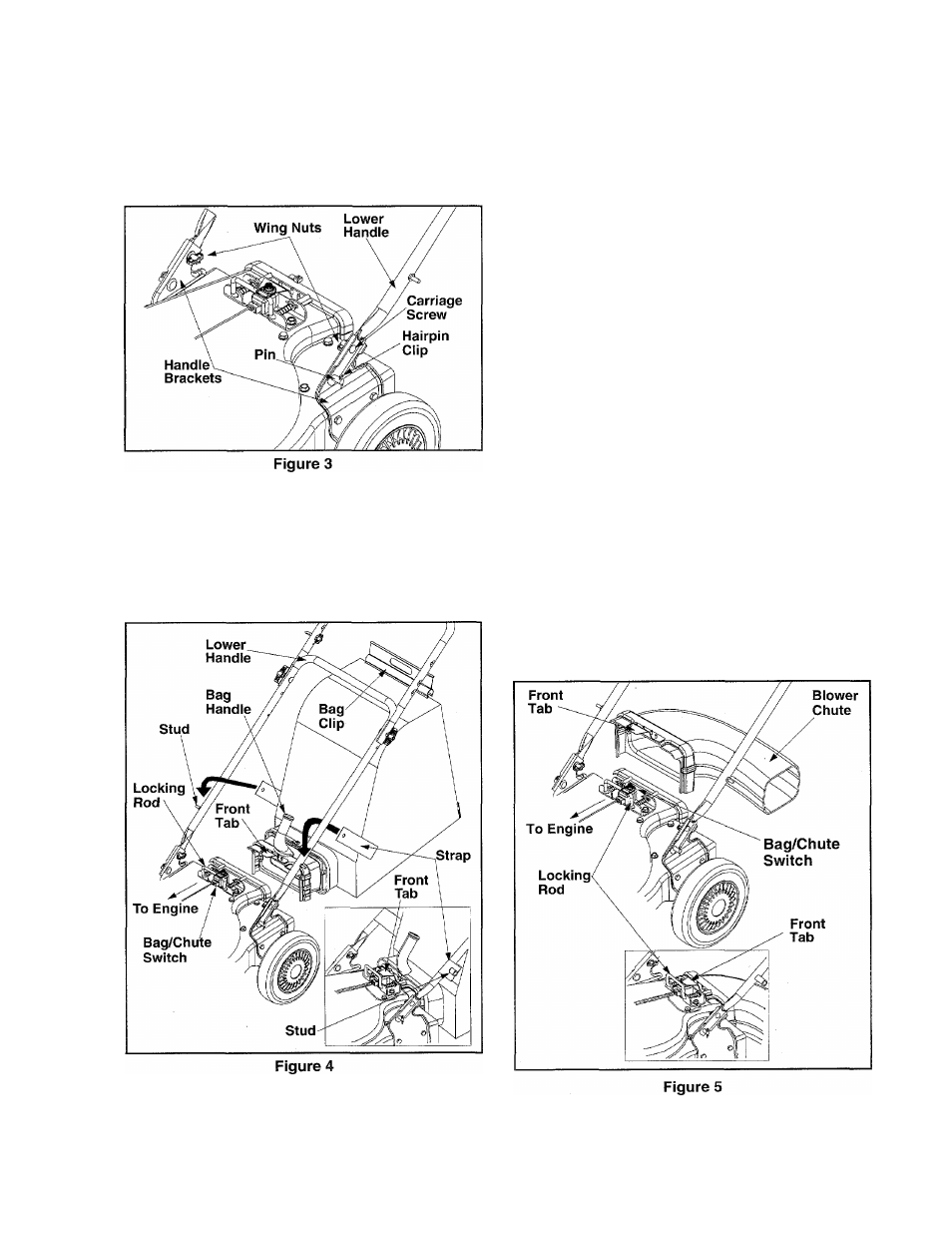

the iower handle. See Figure 3.
Place lower handle over the pins on handle
brackets and secure with hairpin clips, carriage
screws, and wing nuts.
• The rope guide is attached to the right side of
upper handle. Loosen the wing nut which
secures the rope guide, but do not remove.
• Pull the starter rope out of the engine slowly and
slip the starter rope through the rope guide.
Tighten the wing nut.
ATTACHING THE BAG
See Figure 4
•
Grasp bag handle with one hand and pull lock­
ing rod with other hand toward engine, while
slipping bag over rim of discharge opening.
• Release locking rod so the ends are over the
front tab on the bag handle to secure in place.
• Snap bag clip to the top of the lower handle.
• Place the lower straps on the bag over the top
of lower handle, hooking them on the studs.
NOTE: The bag/chute switch button attached to
the mounting bracket must be fuily depressed by
the tip of front tab on bag handle when securing
the bag or engine will not start.
ATTACHING THE BLOWER CHUTE
See Figure 5
NOTE; The bag must be removed before installing
the blower chute.
•
Grasp blower chute with one hand and pull lock­
ing rod with other hand toward engine, while
slipping blower chute over rim of discharge
opening.
• Release locking rod so the ends are over the
front tab on the blower chute to secure in place.
• Raise the nozzle height to the highest setting
when using the blower chute. Refer to nozzle
height adjustment in the ADJUSTMENT sec­
tion.
NOTE: The bag/chute switch button attached to
the mounting bracket must be fully depressed by
the tip of front tab on the blower chute or engine
will not start.
