ASSEMBLY
IMPORTANT: This unit is shipped without gasoline
or oil in the engine. After assembly, see OPERA­
TION section of this manual for proper fuel and
engine oil fill-up.
NOTE: To determine right and left hand sides of
your Yard Vacuum, stand behind the unit, in the
operating position. See Figure 1.
Your Yard Vacuum has been completely assembled
at the factory, except for the handle, bag, and blower
chute. These parts are shipped loose in the carton.
A pair of safety glasses and a 20-oz. bottle of engine
oil are also included in the carton. See Figure 1.
REMOVING FROM CARTON
• Cut the corners of the carton.
• Remove all loose parts.
• Remove packing material. Lift unit from the rear
and discard foam blocks. Roll unit out of carton.
Check carton thoroughly for loose parts.
LOOSE PARTS

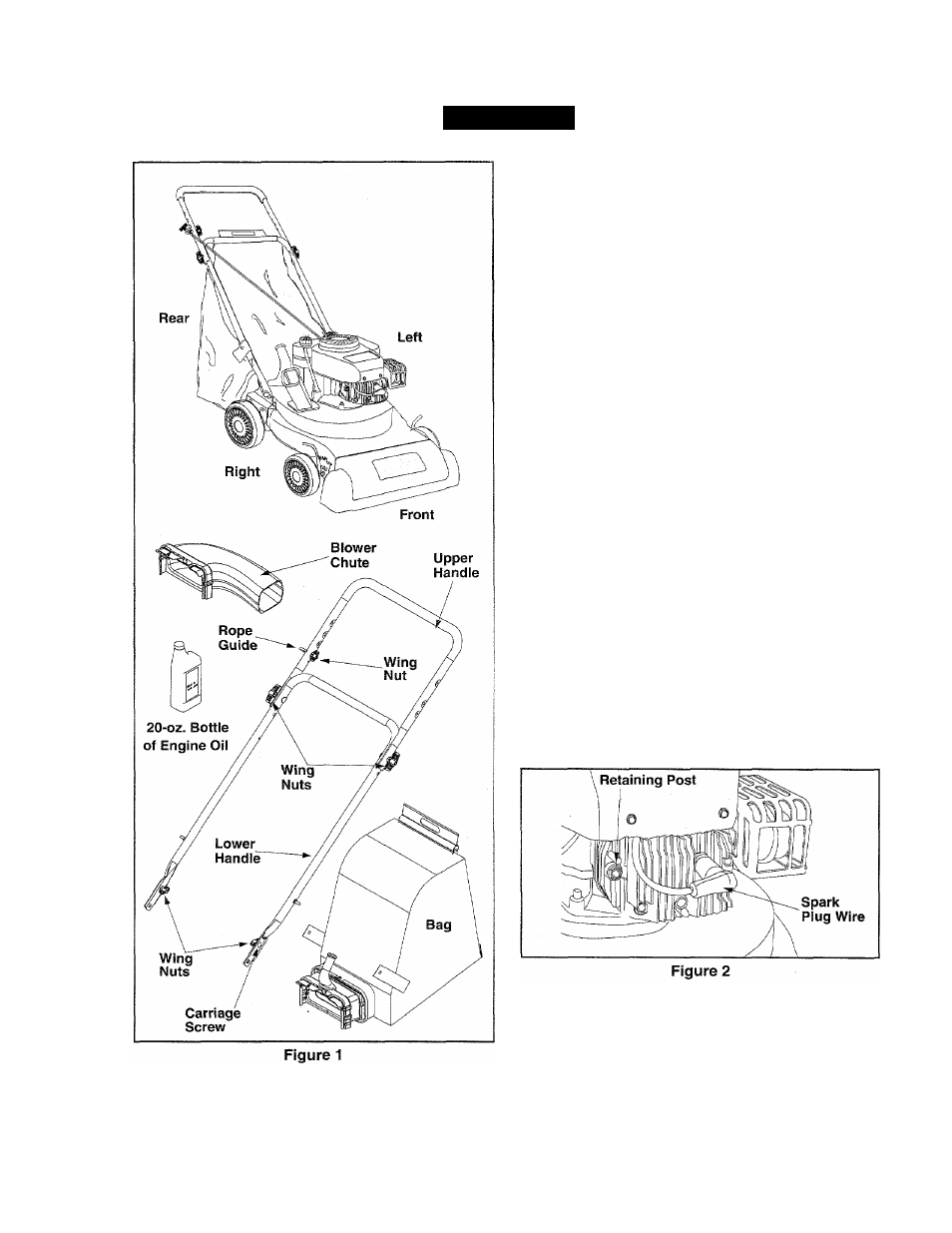

See Figure 1.
1 .
2 .
3.
4.
5.
6 .
Handle Assembly
Bag
Blower Chute Assembly
Safety Glasses (Not Shown)
A 20-oz. Bottle of Engine Oil (may be located in
bag)
Operator’s Manual
DISCONNECTING SPARK PLUG
See Figure 2.
Before proceeding with assembly of your new Yard
Vacuum unit, disconnect the spark plug wire from
the spark plug and ground onto the retaining post on
the engine. This will prevent accidental starting of
the engine.
ATTACHING THE HANDLE
» Fold up the upper handle until it aligns with lower
handle. Make sure the rope guide is on the right
side of upper handle. See Figure 1.
® Secure by tightening the upper wing nuts which
connect the two handles together.
