Brake Pedal Lock'
Shown in Lockfll' Position

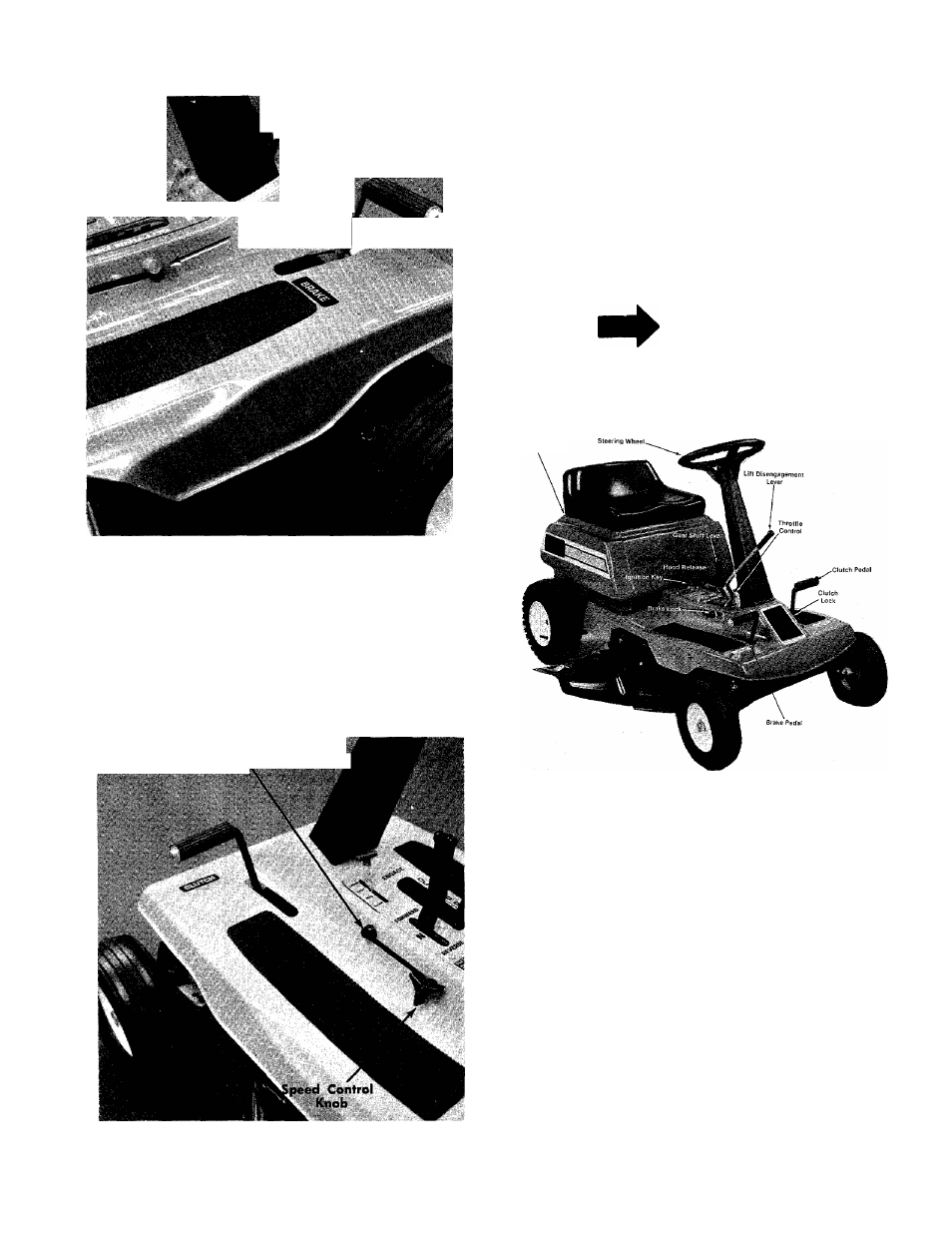

FIGURE 7. BRAKE PEDAL LOCK
BRAKE
To operate the brake, depress the right pedal all
the way down. To lock the brake in park position,
depress the right pedal all the way down and lift
the brake lock. Pedal will stay in the depressed
position. To release the parking brake, depress
the pedal. See figure 7.
Clutch Pedal Lock
Shown in Locked Position-J
CLUTCH PEDAL
The clutch pedal on the left side when depressed,
disengages the engine from the transmission. It
can be held in the disengaged position by lifting
the clutch lock. To stop the mower, depress the
clutch and brake pedals. See figure 8.
SPEED CONTROL KNOB
The speed control knob allows you to regulate the
ground speed of the riding mower. See figure 8.
NOTE
The further forward the speed con­
trol knob is set, the slower the
ground speed.
Recoil Start Handle
FIGURES. CONTROLS
OPERATING
INSTRUCTIONS
^ CAUTION
1. Keep all shields and guards in place.
2. Before leaving operator’s position:
Shift controls into neutral
Set parking brake (Brake Lock)
Disengage attachment drive
Shut off engine
Remove ignition key
3. Wait for all movement to stop before servicing j
machine.
4. Keep people and pets a safe distance away I
from machine.
FIGURE 8. CLUTCH PEDAL LOCK
