4. Fasten the tubing assembly to the steering

shaft assembly with hex screw and hex nut
provided.

Steering Wheel Cap

Hex Nut
Belleville Washer

Steering Wheel

Cover

Hex Screw

Steering Tube

Assembly

Hex Nut

Steering Shaft Assembly
Speed Nut

Flatwasher

Upper Hex Bearing

Lower Hex Bearing

FIGURES.

7. Secure cover to support bracket with two

truss machine screws provided. See figure 4.

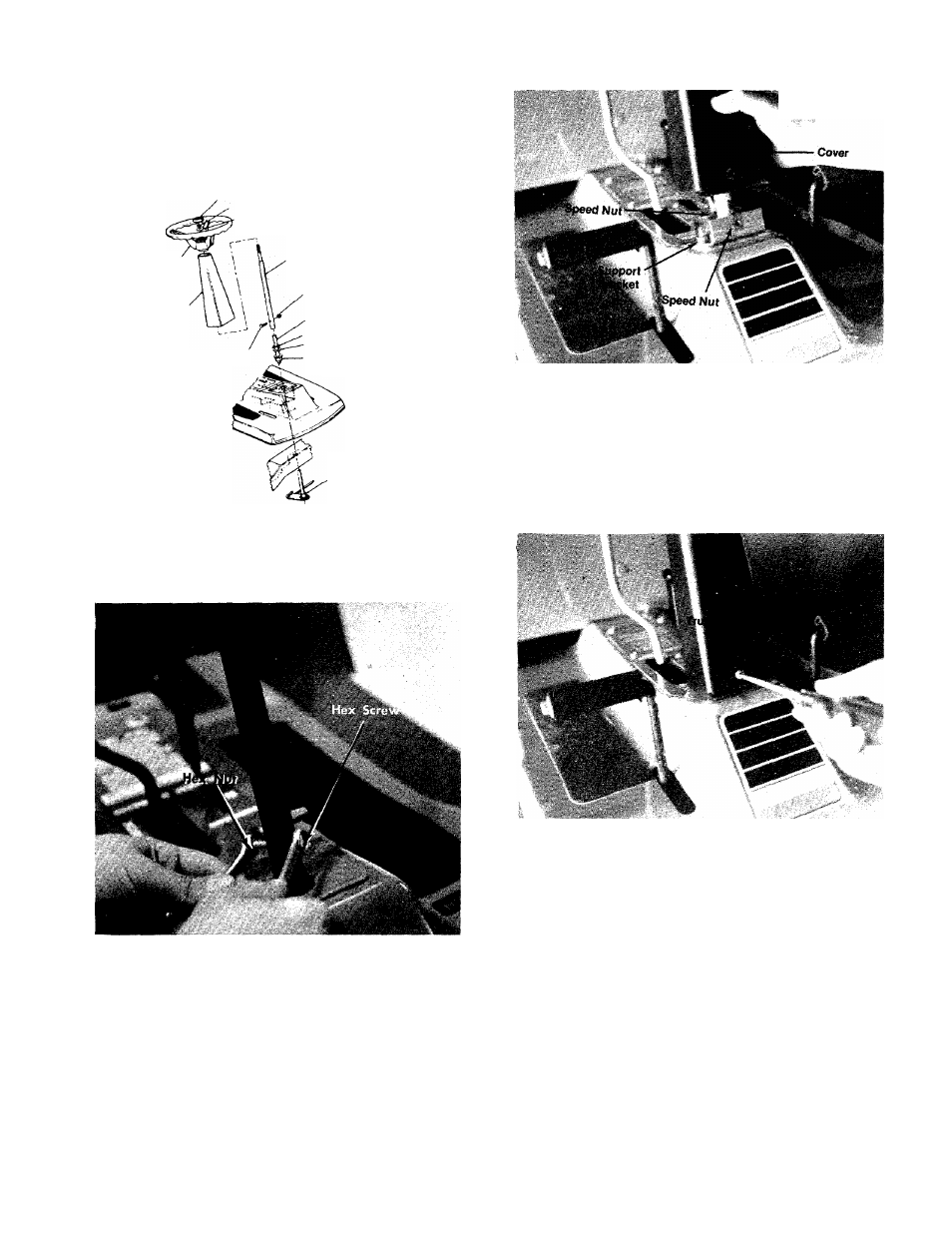

FIGURE 1. STEERING ASSEMBLY

FIGURE 2. STEERING TUBE ASSEMBLY

FIGURE 4.

8. Place the steering wheel on the tubing

assembly and fasten with belleville washer
and hex nut. See figure 1.

5. Place two speed nuts on support bracket, as 9. Again, it may be necessary to raise the

shown in figures.

steering shaft assembly in order to put the
hex nut on.

6. Place the cover over the steering tube

assembly, line up holes in cover with speed 10. Place the steering wheel cap on by hand. See

nuts. See figures.

figures.
