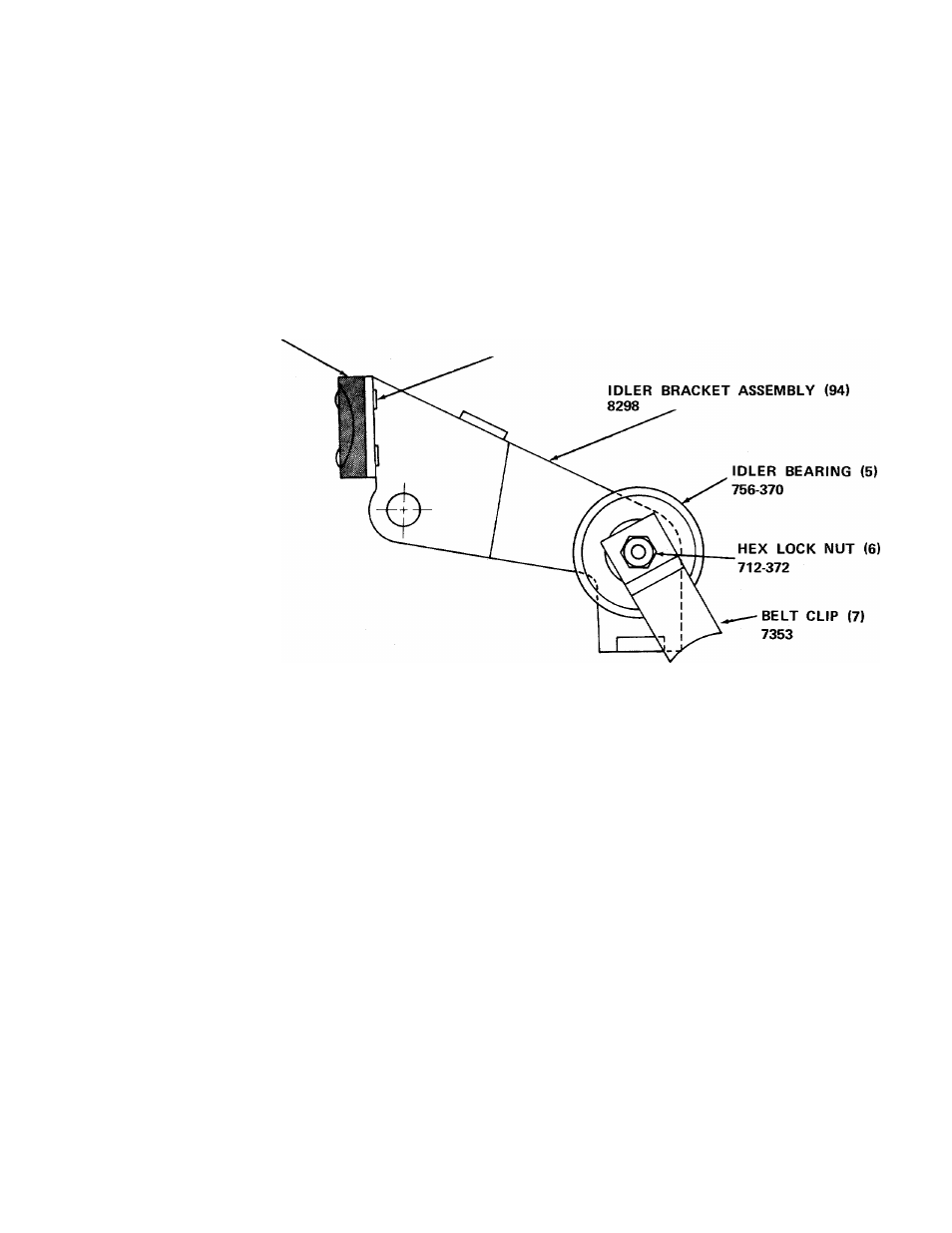

BLADE IDLER BRACKET ASSEMBLY DETAIL
BRAKE SHOE 754-647 (118)
RIVET 728-649 (117)
BELT W E A R
Belt clips improperly positioned
will cause premature belt wear.
The belt clip must completely
clear the belt when the belt is
tightened. It should also assist in freeing the
belt from the blade spindle pulley when the belt
is loose. This may be checked by removing the
blade spindle cover.
