Phillips
Head
Screw
Mounling
Brad [et

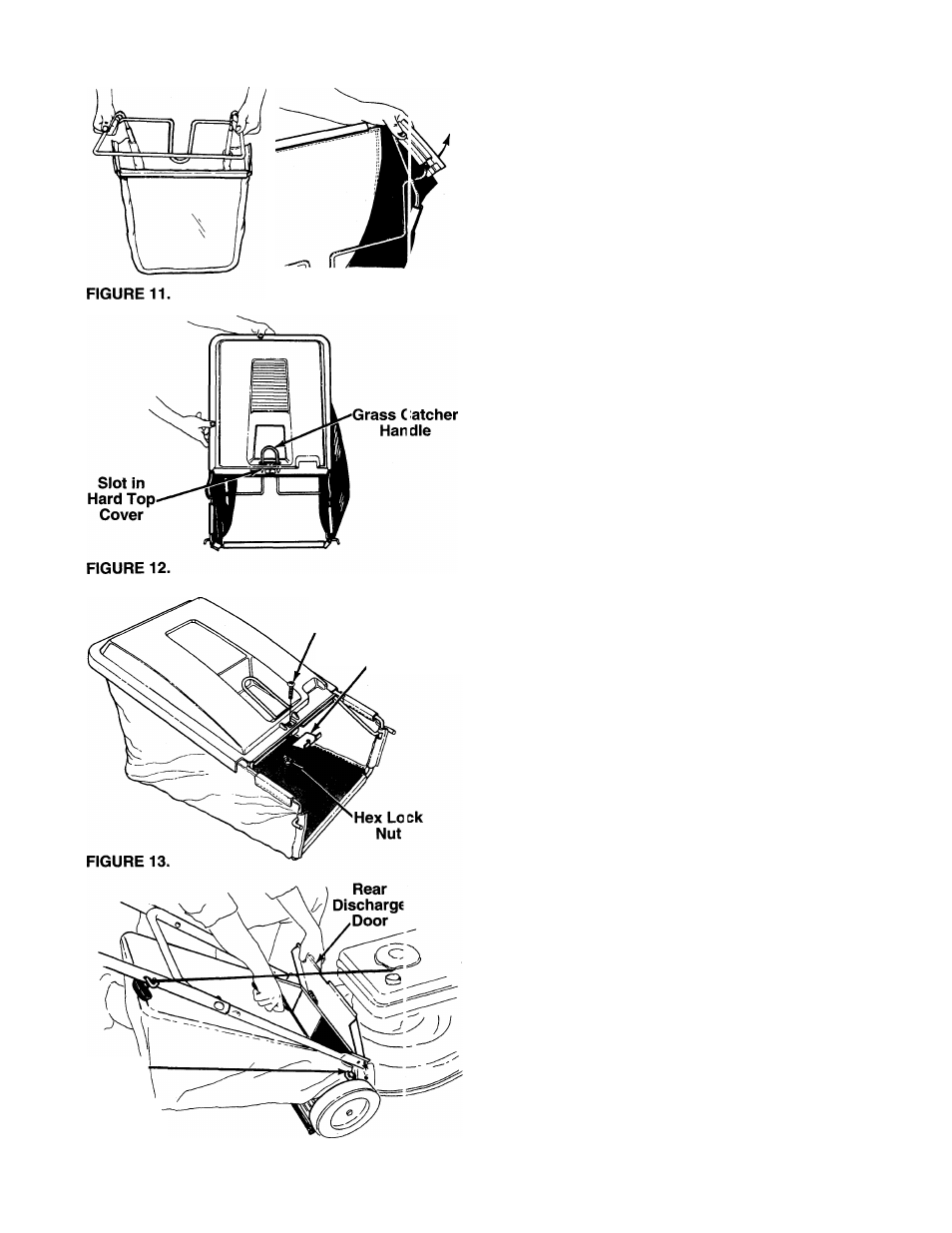

2. Slide the ends of the front frame assembly into
the ends of the rear frame as shown in figure 11.
3. Slip the openings in the side of the plastic chan­
nel on bag over hooks on the grass catcher
— frame. See figure 11.
4. Secure front of bag to front frame by working the
plastic channels on sides and bottom of bag over
frame.
Slot in
Handle
Bracket
Assembly
FIGURE 14
5. Slide the handle on the grass catcher frame into
the slot in the hardtop cover from beneath the
— cover. See figure 12.
Place the mounting bracket under the front of the
handle, with the tabs on the bracket facing up.
Insert Phillips head screw down through the hard­
top cover and mounting bracket. Secure with hex
lock nut. See figure 13.
ATTACHING GRASS CATCHER TO MOWER
Lift the rear discharge door on the mower. Place the
hooks on the grass catcher into the slots in the handle
-bracket assemblies. See figure 14. Release the rear
discharge door.
To remove the grass catcher, lift the rear discharge
door on the mower. Lift the grass catcher up, out of
the slots in the handle bracket assemblies. Release
the rear discharge door.
A
WARNING: Never operate the mower
unless the hooks on the grass catcher
are seated in the slots on the handle
bracket assemblies, and the rear dis­
charge door rests firmly against the top
of the grass catcher.
