NOTE
This
engine
is
equipped
with
an
alternator. The current for the bat
tery
charger
alternator
is
unregu
lated. During normal operation, it is
only necessary to charge the battery:
1. When it is activated for the first
time.
2. Before winter storage.
3. Before using the lawn tractor
after winter storage.
INSTALLING THE BATTERY (Hardware A)

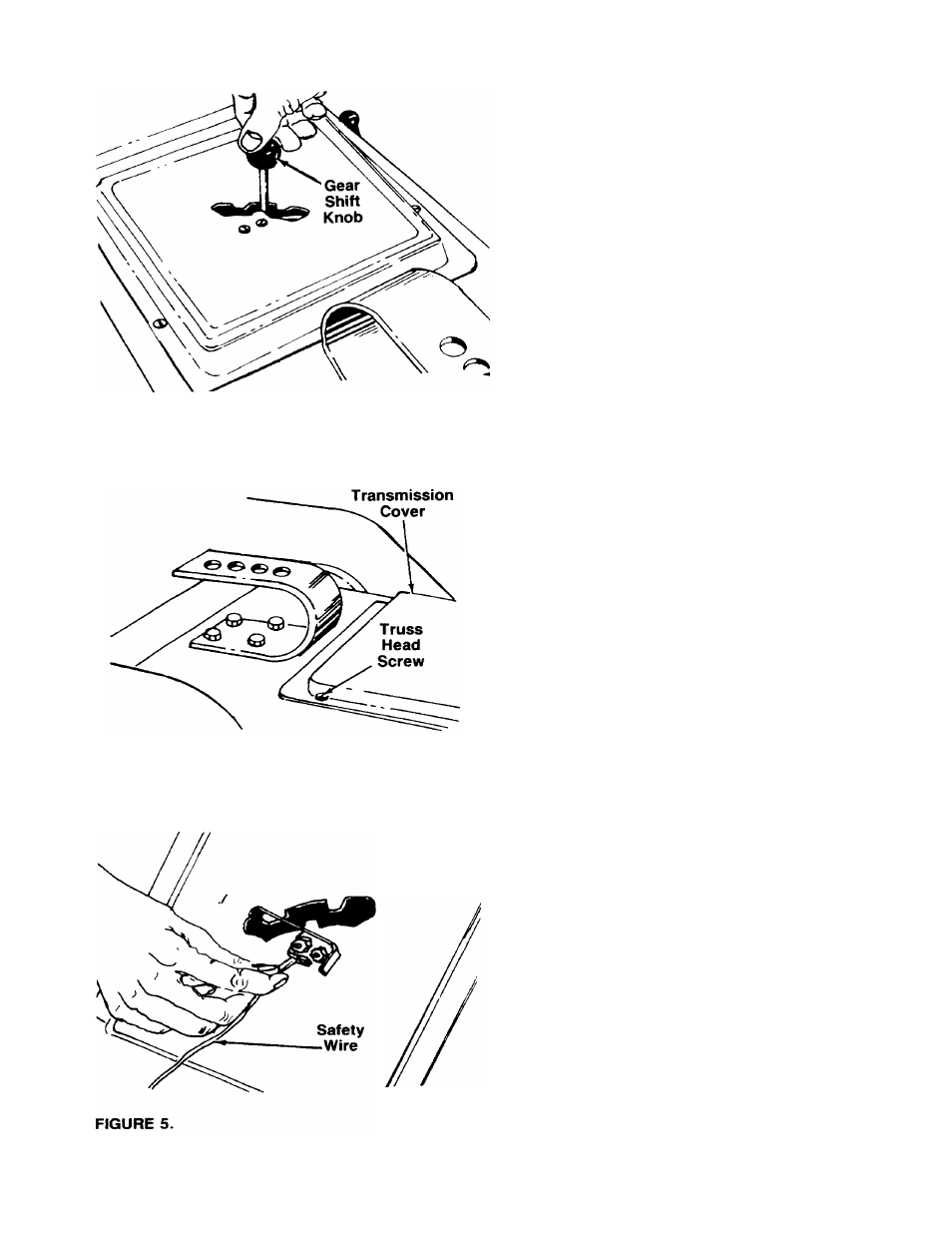

1. Place gear shift lever in the “neutral” position.
-Unscrew the gear shift knob. See figure 3.
FIGURE 3.
2. Remove the two truss head screws which secure
------the transmission cover. See figure 4.
FIGURE 4.
3.---Lift the transmission cover. Unplug the safety wire
from beneath the transmission cover. See figure
----- 5. Remove transmission cover.
