Incline
Assistance
Battery Brake
Drain
\ Tube

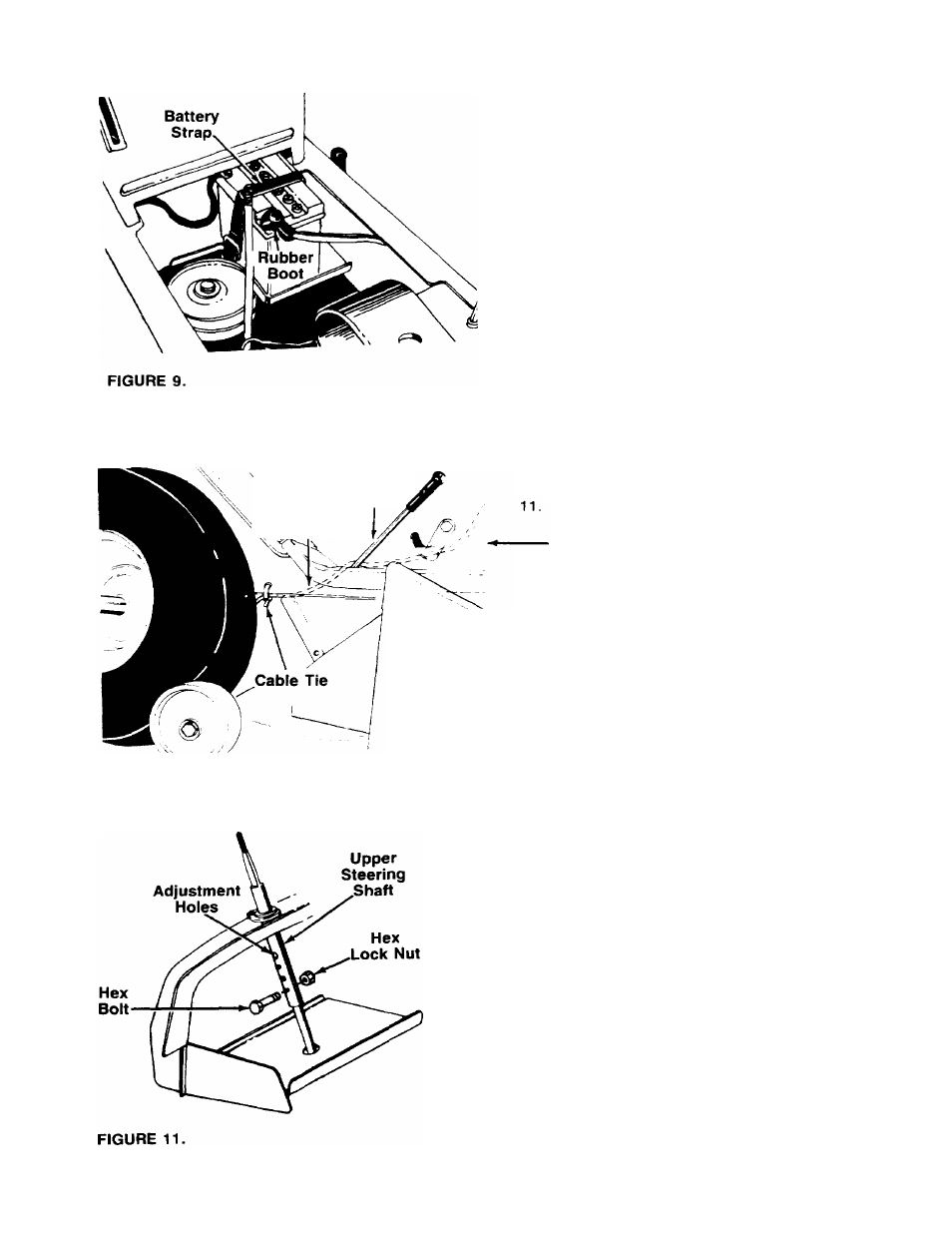

9. Slide the battery forward into position as shown in
------- figure 9. Secure in place with the battery strap,
stretching strap over the battery and hooking into
hole in the frame.
10. Slide rubber boot over the positive terminal. See
figure 9.
Bend the positive cable down, out of the way, to
allow clearance for the gear shift lever and safety
switch (underneath the transmission cover).
Ac WARNIN^{
Make certain the positive cable does
not contact the safety switch when the
transmission cover is reassembled, to
avoid damage to the unit and serious
personal injury.
Route the battery drain tube toward the back of the
unit, over the shaft on the incline assistance brake
and inside the deck links. See figure 10.
12. Secure drain tube to hole in the side of frame with
cable tie as shown in figure 10. Trim excess end
of cable tie. Be certain tube is routed away from
wheel rim.
13. Plug the safety wire into the switch beneath the
transmission cover. Refer to figure 5. Replace the
transmission cover and gear shift knob.
FIGURE 10.
ATTACHING THE STEERING WHEEL (Hardware B)
1. Insert large end of the upper steering shaft through
the hole in the dash panel, over the lower steering
------- shaft. See figure 11. The four holes in the upper
steering shaft provide four steering wheel heights.
Select desired hole, and secure with hex bolt and
hex lock nut.
10
